Zest. dodat. mufy termokurcz. SJPP120

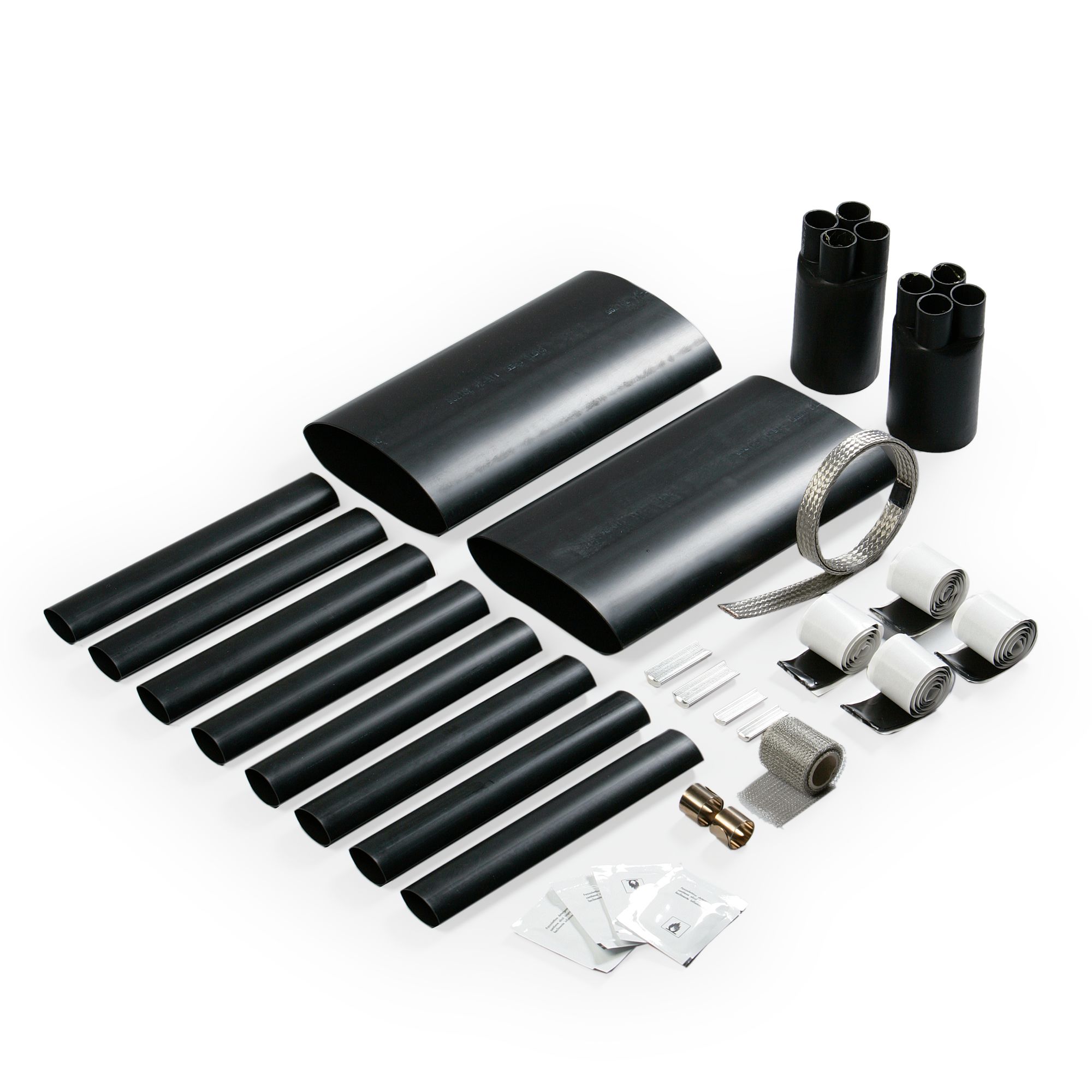

The additional kit is used together with the 1 kV joint kit SJK for jointing of belted paper insulated, lead sheathed, armoured 3+1 core cables.The kit includes eight heat shrink tubes for protection of the paper insulation, two heat shrink breakouts, tinned copper braids, two constant force spring.
| Kod produktu | SJPP120 |
| GTIN | 6418677452604 |
| Nazwa | Zest. dodat. mufy termokurcz. 0,6/1 (1,2) kV 4x/Pb-4x/Pbx50-95 mm² paper four core with lead sheath for SJK |
| Cechy | |
|---|---|
| Zestaw podstawowy | SJK2C, SJK3C |
| Wymiary | |
| Ciężar | 1.7 kg |
| Rozmiar żyły | 50-95 mm² |
| ETIM | |
| ETIM Class | EC001169 |
| Rated voltage U0/U (Um) | 0.6/1 (1.2) kV |
| Model | Heat-shrink |
| Insulating material | Plastic |
| For connection of paper- with plastic insulated cables | Yes |
| Number of conductors | 4 |
| Nominal cross section conductor | 50 ... 95 mm² |
| Connection accessories included | None |
| Halogen free | Yes |
| Karton | |
|---|---|
| Rozmiar | 1 pce |
| Głębokość | 385 mm |
| Wysokość | 165 mm |
| Szerokość | 260 mm |
| Waga | 2.200 kg |
| Objętość | 16.5165 l |
| Paleta | |
| Rozmiar | 54 pce |
| Głębokość | 1200 mm |
| Wysokość | 1140 mm |
| Szerokość | 800 mm |
| Waga | 138.800 kg |
| Objętość | 1094.4 l |
