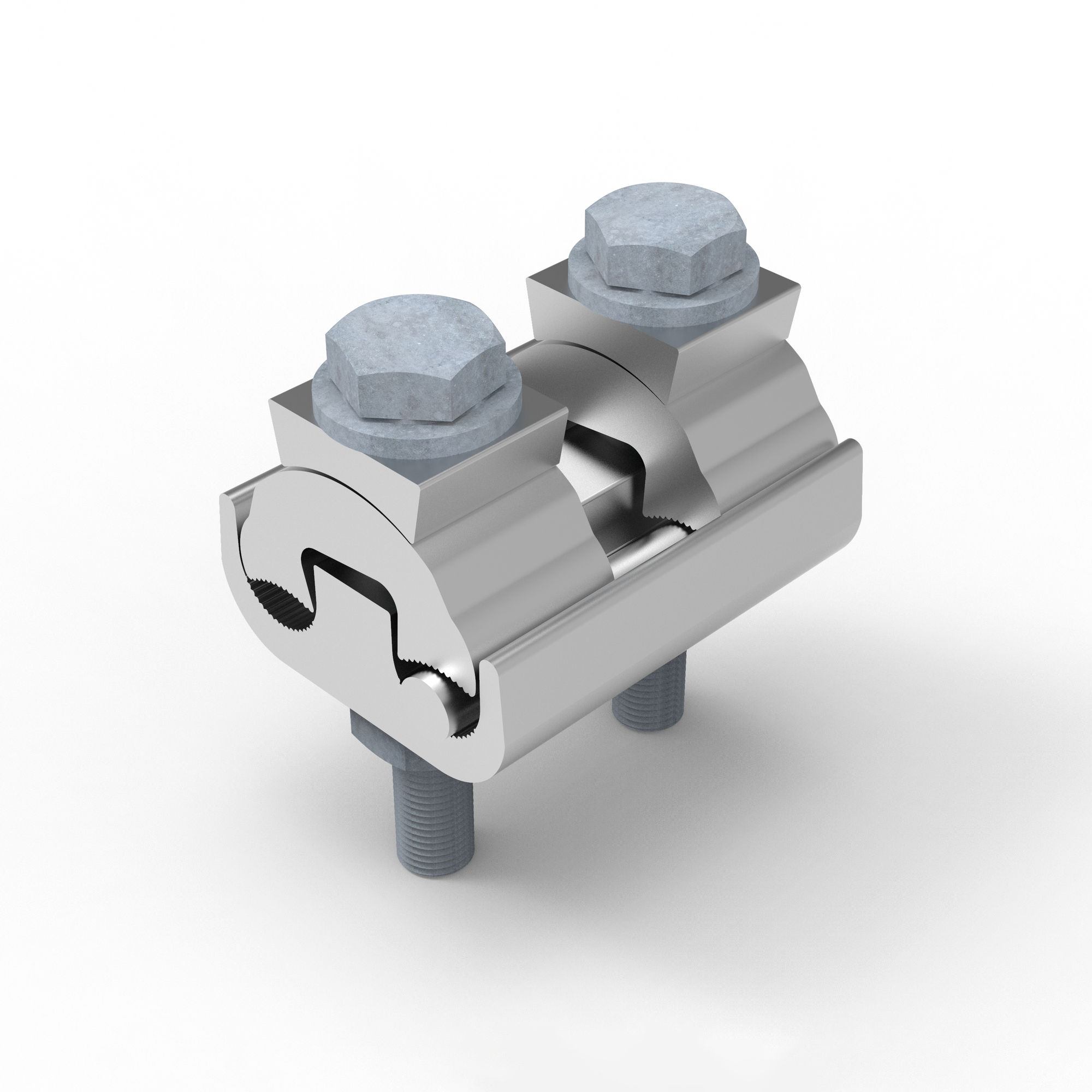

Skenklämma KG9
The KG9 is used for connecting Al-conductors to distribution boards, components and flat bars.
| Kod | KG9 |
| GTIN | 6418677400346 |
| Namn | Skenklämma Al 2x16-70 mm² |
| Dimensioner | |
|---|---|
| Vikt | 0.196 kg |
| Höjd | 62 mm |
| Bredd | 36 mm |
| Längd | 42 mm |
| Ledningsdiam. | 4.5 ... 10.2 mm |
| Ledarstorlek | Al 2x16-70 mm² |
| Certifikater | |
| Standard märkningar | VDE 220 Teil 1/11.71 and Teil 2/11.71, SFS 2663 |
| Funktioner | |
| Bult | 2xM8 |
| Mekanisk | |
| Åtdragningsmoment | 20 Nm |
| ETIM | |
| ETIM Class | EC000001 |
| Busbar width | ≥ 20 mm |
| Suitable for | Flat rail |
| Width clamp | 36 mm |
| Max. conductor cross section | 70 mm² |
| Suitable for round conductor connection | Yes |
| Suitable for sector conductor connection | Yes |
| Suitable for strip conductor connection | Yes |
| Kartong | |
|---|---|
| Storlek | 50 st |
| Djup | 210 mm |
| Höjd | 160 mm |
| Bredd | 210 mm |
| Vikt | 9.952 kg |
| Volym | 7.056 l |
| Palettpaket | |
| Storlek | 3500 st |
| Djup | 1200 mm |
| Höjd | 870 mm |
| Bredd | 800 mm |
| Vikt | 716.640 kg |
| Volym | 835.2 l |
