Insulation piercing connector SLIW59
SLIW59 is for use with insulated aluminium or copper conductors. LV ABC 70-150 mm² to sector cable 70-240 mm² connections. Fully insulated bolt provides safe live line working. Test voltage 6 kV/50 Hz/1 min in water. Connector's design enables live line installation without peeling insulation from conductor.
| Code | SLIW59 |
| GTIN | 6438100314637 |
| Name | Insulation piercing connector 70-150 mm² / 70-240 mm², Waterproof |

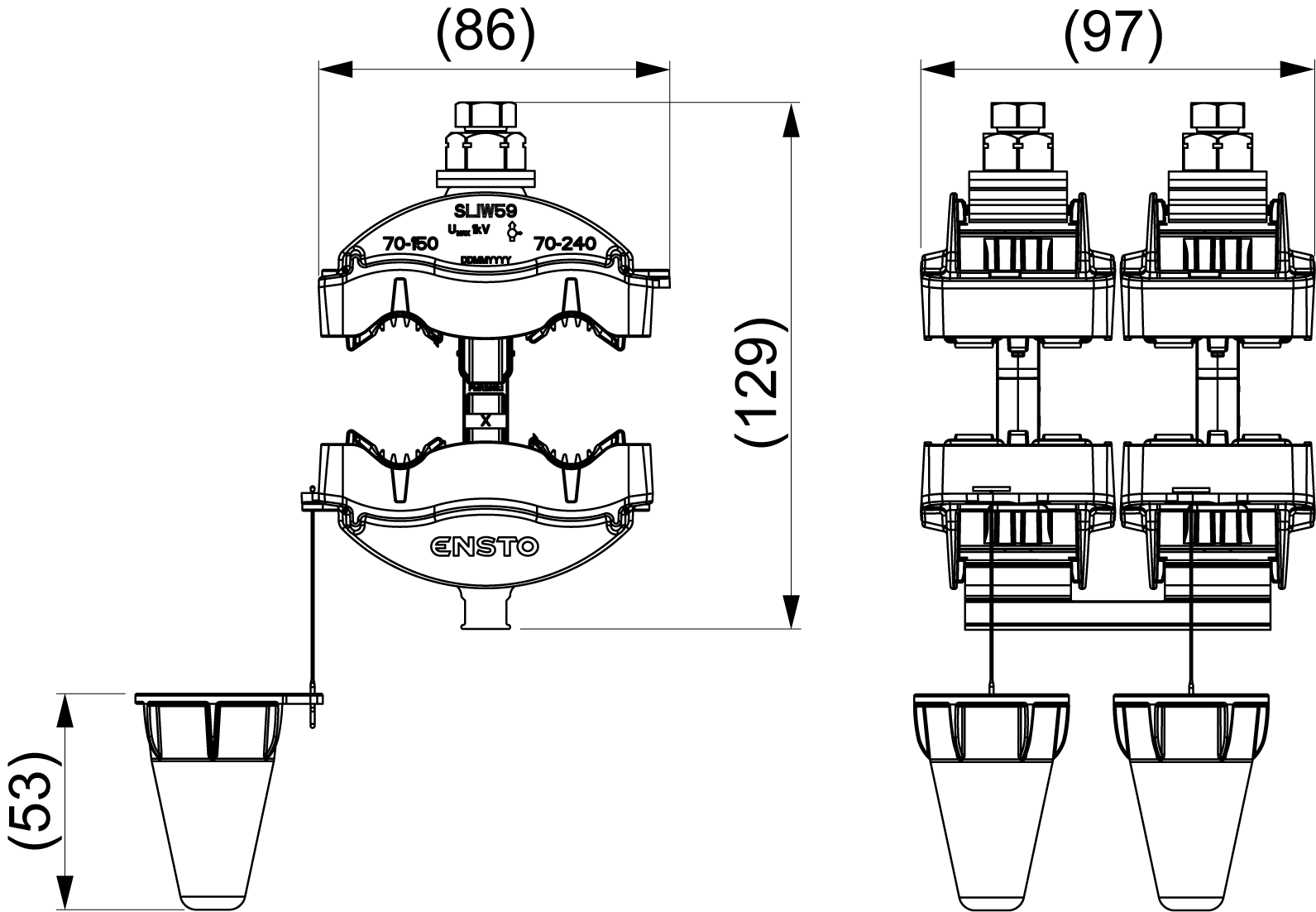

| Dimensions | |
|---|---|
| Weight | 0.573 kg |
| Height | 86 mm |
| Width | 97 mm |
| Length | 129 mm |
| Main conductor mm² | 70-150 mm² |
| Branch conductor mm² | 70-240 mm² |
| Conductor diameter | 12 ... 23 mm |
| Environmental impact | |
| GWP-fossil, A1-A3 | 4.29 kgCO2e |
| GWP-fossil, A1-A3 /kg | 7.49 kgCO2e/kg |
| Certificates | |
| Standards | EN 50483-4:2009, EN 15804+A2 & ISO 14025 / ISO 21930 |
| Connector class | A1 |
| Electrical values | |
| Highest system voltage | 1 kV |
| Test voltage in water | 6 kV / 50 Hz / 1 min |
| Mechanical | |
| Tightening torque Nm | 26.5 Nm |
| ETIM | |
| ETIM Class | EC001062 |
| Nominal cross section main conductor, SM | 70 ... 150 mm² |
| Nominal cross section branch conductor, SE/RE | 70 ... 240 mm² |
| Nominal cross section branch conductor, SM/RM | 70 ... 240 mm² |
| Material main conductor | Aluminium/copper |
| Material branch conductor | Aluminium/copper |
| Terminal insulated | Yes |
| Clamping channel opening main conductor | Both sides open |
| Clamping channel opening branch conductor | Both sides open |
| Surface protection | Tinned |
| Type of connection | Insulation piercing connector IPC |
| Plastic bag | |
|---|---|
| Size | 1 pce |
| Depth | 350 mm |
| Height | 10 mm |
| Width | 230 mm |
| Weight | 0.582 kg |
| Volume | 0.805 l |
| Carton | |
| Size | 12 pce |
| Depth | 398 mm |
| Height | 221 mm |
| Width | 263 mm |
| Weight | 7.255 kg |
| Volume | 23.132954 l |
| Pallet package | |
| Size | 432 pce |
| Depth | 1200 mm |
| Height | 1050 mm |
| Width | 800 mm |
| Weight | 281.187 kg |
| Volume | 1008 l |
