PK555 is used for preventing water entry into the end of the branch cable.
| Code | PK555 |
| GTIN | 6438100306908 |
| Name | End cap 25-150 mm² |
-
What are you looking for?
-

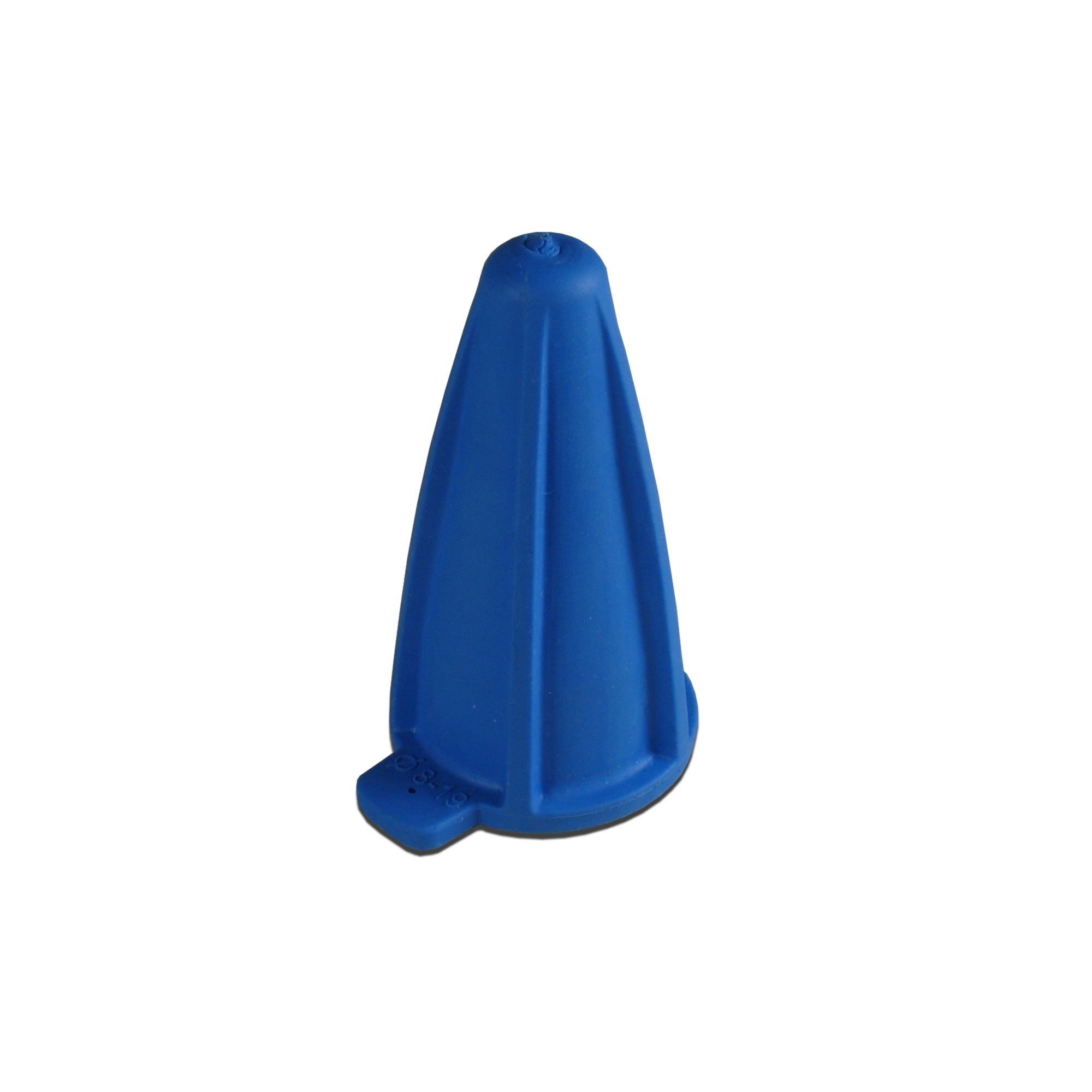

End cap PK555
Technical information
Technical specifications
Technical specifications

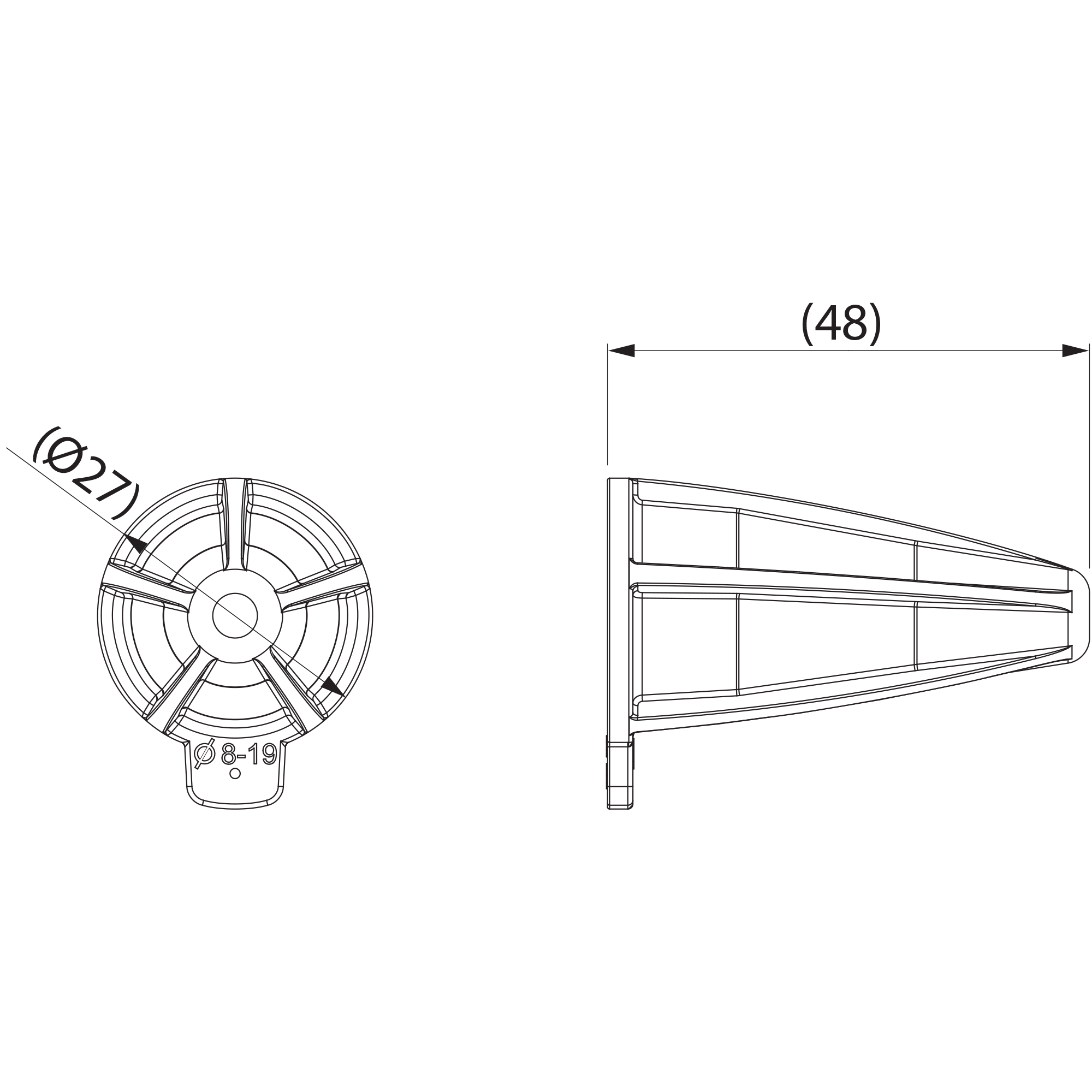

| Dimensions | |
|---|---|
| Weight | 0.0072 kg |
| Conductor diameter | 8 ... 19 mm |
| Conductor size | 25-150 mm² |
| Certificates | |
| Standards | EN 50483-4:2009 |
| Connector class | EN 50483-4:2009 clause 8.1.3 |
| Electrical values | |
| Test voltage | 6 kV / 50 Hz / 1 min |
| ETIM | |
| ETIM Class | EC000218 |
| Nominal cross section | 25 ... 150 mm² |
| Colour | Blue |
| Material | Elastomer (PES) |
| Halogen free | Yes |
| With inner glue | No |
Packaging
Packaging
| Carton | |
|---|---|
| Size | 120 pcs |
| Depth | 631 mm |
| Height | 208 mm |
| Width | 431 mm |
| Weight | 1.423 kg |
| Volume | 56.567888 l |
| Pallet package | |
| Size | 12600 pcs |
| Depth | 1200 mm |
| Height | 890 mm |
| Width | 800 mm |
| Weight | 169.415 kg |
| Volume | 854.4 l |
