Vinkeltravers trekant SH65
SH65 is for single, three phase bare conductor lines. Allowed loads for the crossarm at conductor fixing points are: Fx= 14.0 kN angle load Fz= 4.5 kN horizontally along conductor Fy= 4.0 kN vertically downwards.
| Kode | SH65 |
| GTIN | 6418677407314 |
| Navn | Vinkeltravers trekant 20 kV |

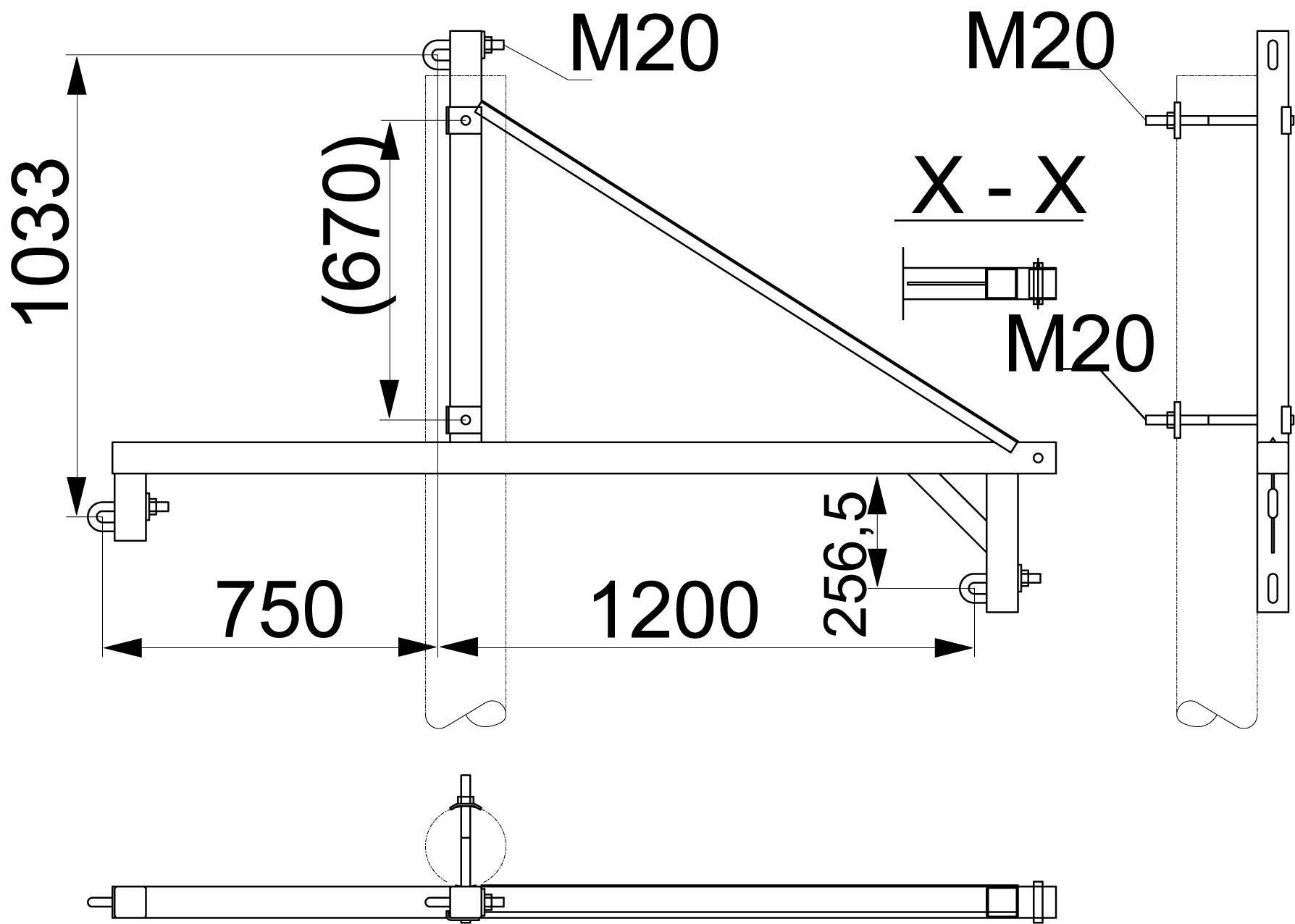

| Mål | |
|---|---|
| Vekt | 29.9 kg |
| Mekanisk | |
| Allowed loads at conductor fixing point | Fx = 14.0, Fz = 4.5 kN, Fy = 4.0 kN |
| ETIM | |
| ETIM Class | EC003515 |
| Type | Angled cross arm |
| Egnet for | One pole |
| Profilform | RHS (Rectangular Hollow Section) |
| Materiale | Steel |
| Overflatebeskyttelse | Galvanized |
| Leder overflate | Bare |
| Maks. Nominell spenning | 20 kV |
| Kartong | |
|---|---|
| Pakkestørrelse | 1 pce |
| Vekt | 29.950 kg |
| Pallepakke | |
| Pakkestørrelse | 25 pce |
| Dybde | 1200 mm |
| Bredde | 800 mm |
| Vekt | 768.750 kg |
