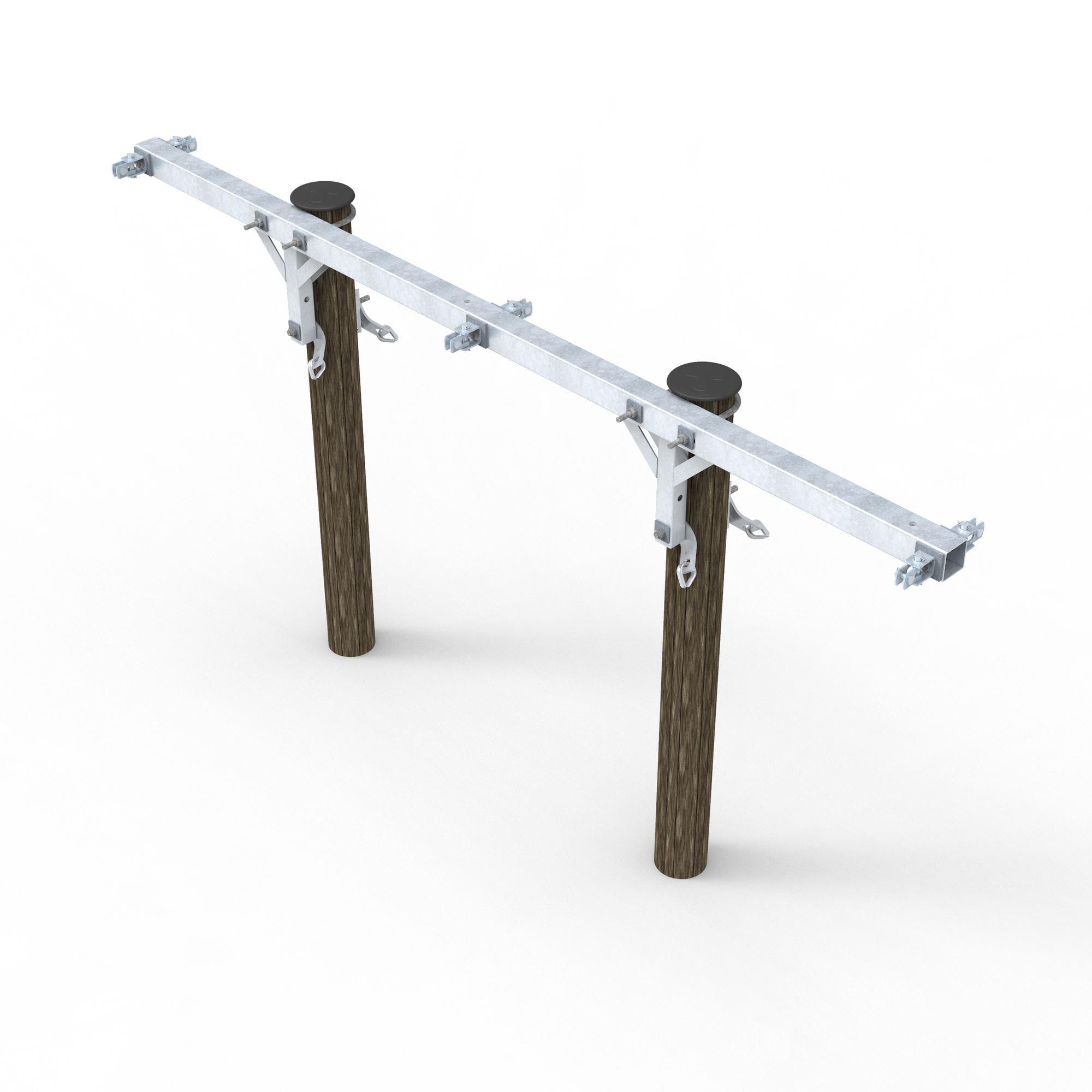

Avspenningstravers vinkel SH190.1
For intermediate tensioning of single, three phase covered conductor lines. Allowed loads for the crossarm at conductor fixing points are: Fx = 4.0 angle load, Fz = 16.0 kN horizontally along conductor, Fy = 5.0 kN vertically downwards.
| Kode | SH190.1 |
| GTIN | 6418677411601 |

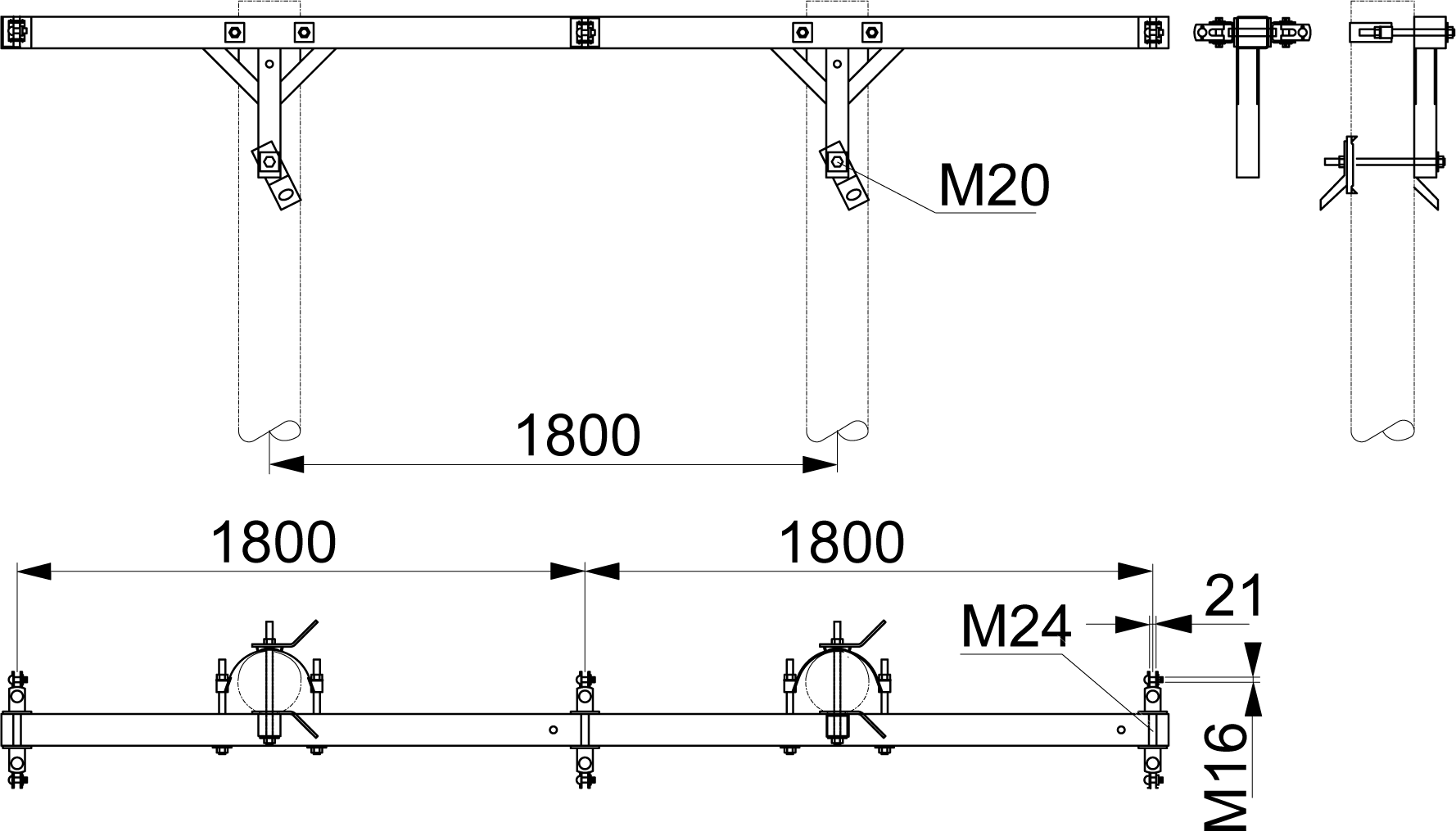

| Navn | Avspenningstravers vinkel 45 kV, A= 1800, single line/2-poles |
| Mål | |
|---|---|
| Vekt | 75.8 kg |
| Mekanisk | |
| Allowed loads at conductor fixing point | Fx = 4.0 kN, Fz = 16.0 kN, Fy = 5.0 kN |
| ETIM | |
| ETIM Class | EC003515 |
| Type | Angled cross arm |
| Egnet for | Two pole |
| Profilform | RHS (Rectangular Hollow Section) |
| Materiale | Steel |
| Overflatebeskyttelse | Galvanized |
| Leder overflate | Covered |
| Maks. Nominell spenning | 45 kV |
| Kartong | |
|---|---|
| Pakkestørrelse | 1 pce |
| Dybde | 3000 mm |
| Høyde | 500 mm |
| Bredde | 100 mm |
| Vekt | 75.850 kg |
| Volum | 150 l |
| Pallepakke | |
| Pakkestørrelse | 6 pcs |
| Dybde | 1200 mm |
| Høyde | 500 mm |
| Bredde | 800 mm |
| Vekt | 475.100 kg |
| Volum | 480 l |
