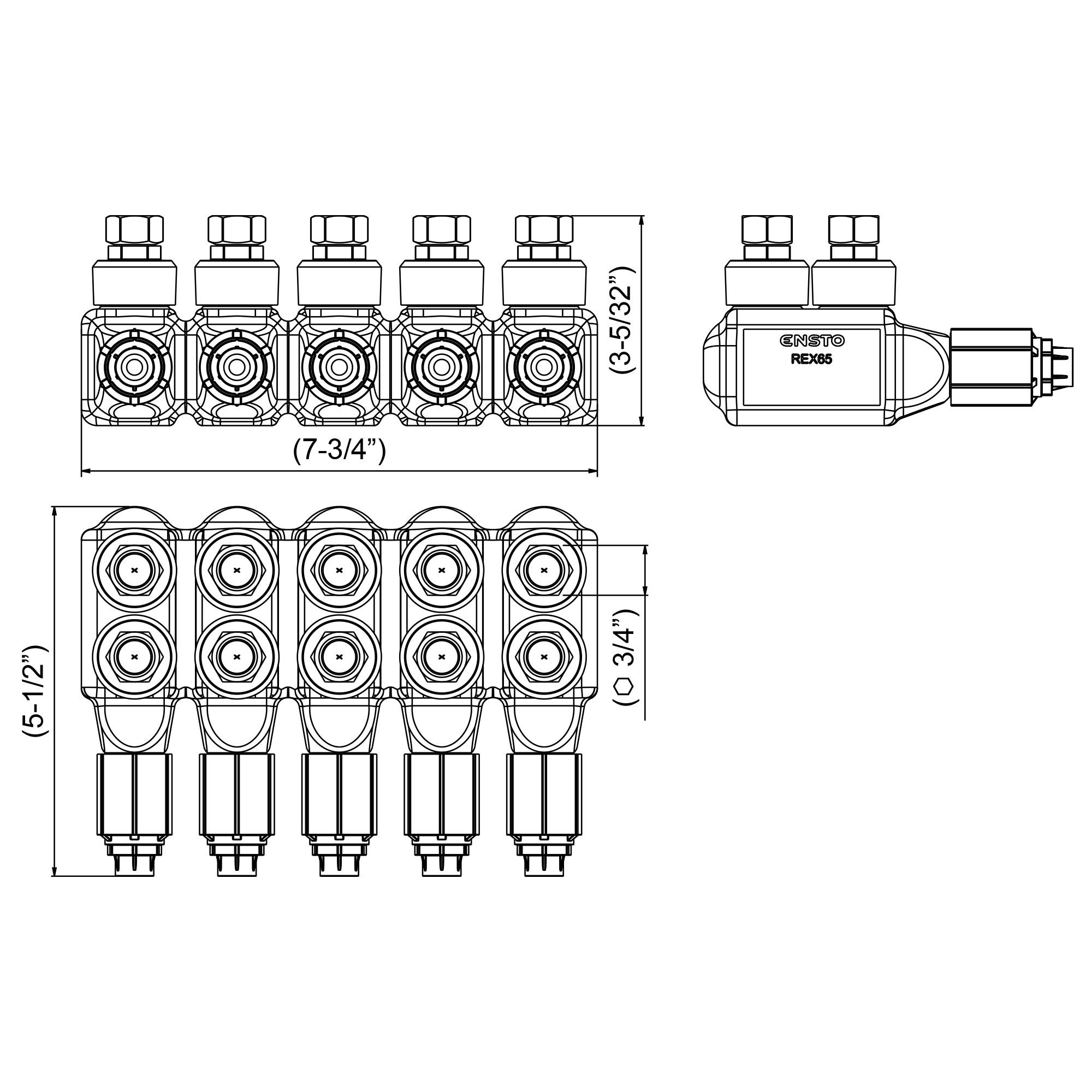

Insulation piercing connector REX65
The insulation piercing connector is a watertight shear head bolt connector. The connector is designed for low voltage underground distribution applications without the need to strip the insulation. The connector accepts both aluminum and copper conductors.
| Code | REX65 |
| GTIN | 6438389106329 |
| Name | Insulation piercing connector 5-port insulation piercing connector #6 AWG - 4/0 AWG |
| Dimensions | |
|---|---|
| Weight | 2.78 lb |
| Height | 3.14 in |
| Width | 5.51 in |
| Length | 7.75 in |
| Features | |
| For conductor shape | Round |
| Rated maximum voltage | 600 volts |
| US specific | |
| Cross section stranded circular US | #6 AWG - 4/0 AWG |
| Carton | |
|---|---|
| Size | 8 pcs |
| Depth | 22.83 in |
| Height | 7.48 in |
| Width | 8.03 in |
| Weight | 24.11 lb |
| Volume | 5.93 gal |
