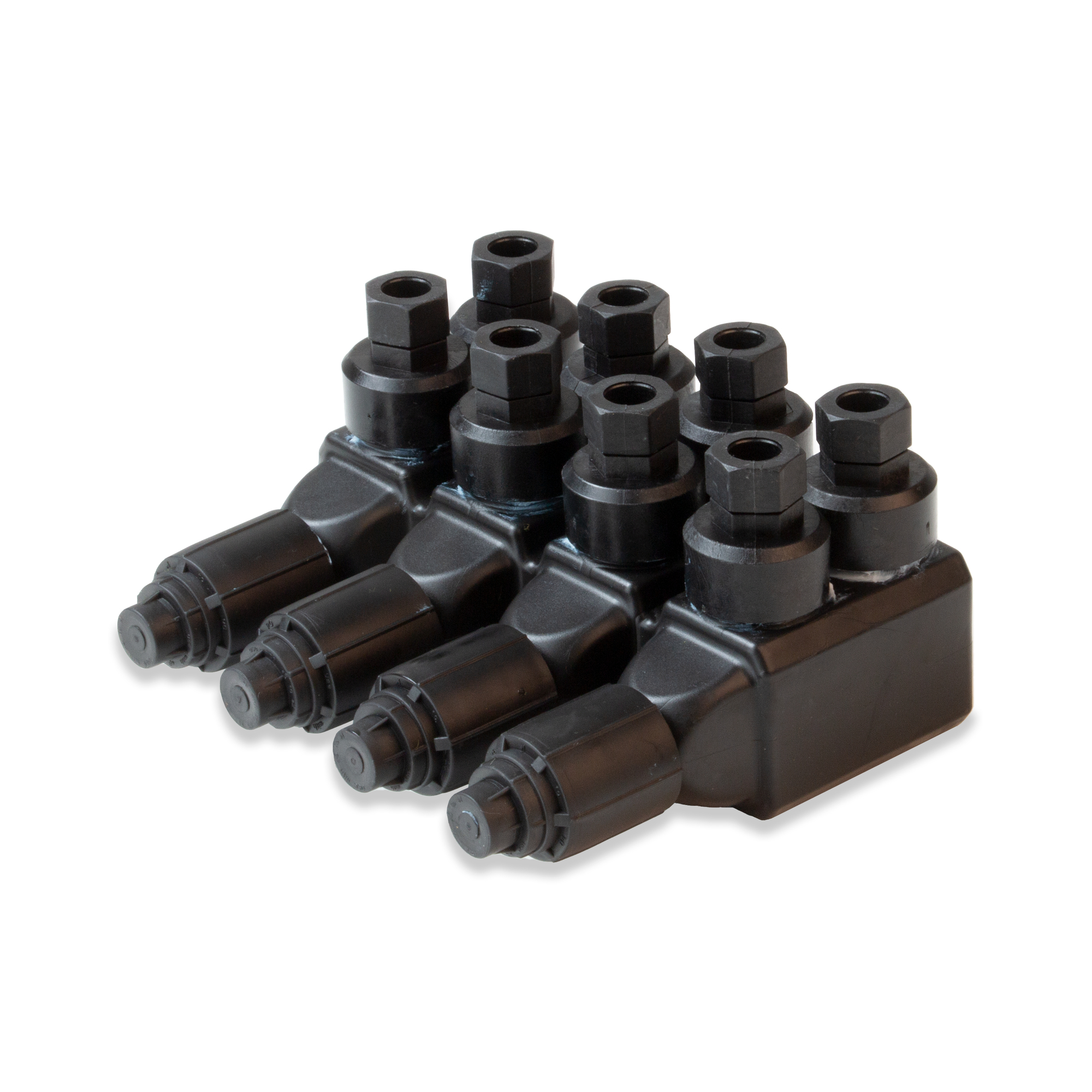

Insulation piercing connector REX64
The insulation piercing connector is a watertight shear head bolt connector. The connector is designed for low voltage underground distribution applications without the need to strip the insulation. The connector accepts both aluminum and copper conductors.
| Code | REX64 |
| GTIN | 6438389100921 |
| Name | Insulation piercing connector 4-port insulation piercing connector #6 AWG - 4/0 AWG |
| Standards | |
|---|---|
| Standards | ANSI C119.1 |
| Technical information | |
| Conductor material | Al/Cu |

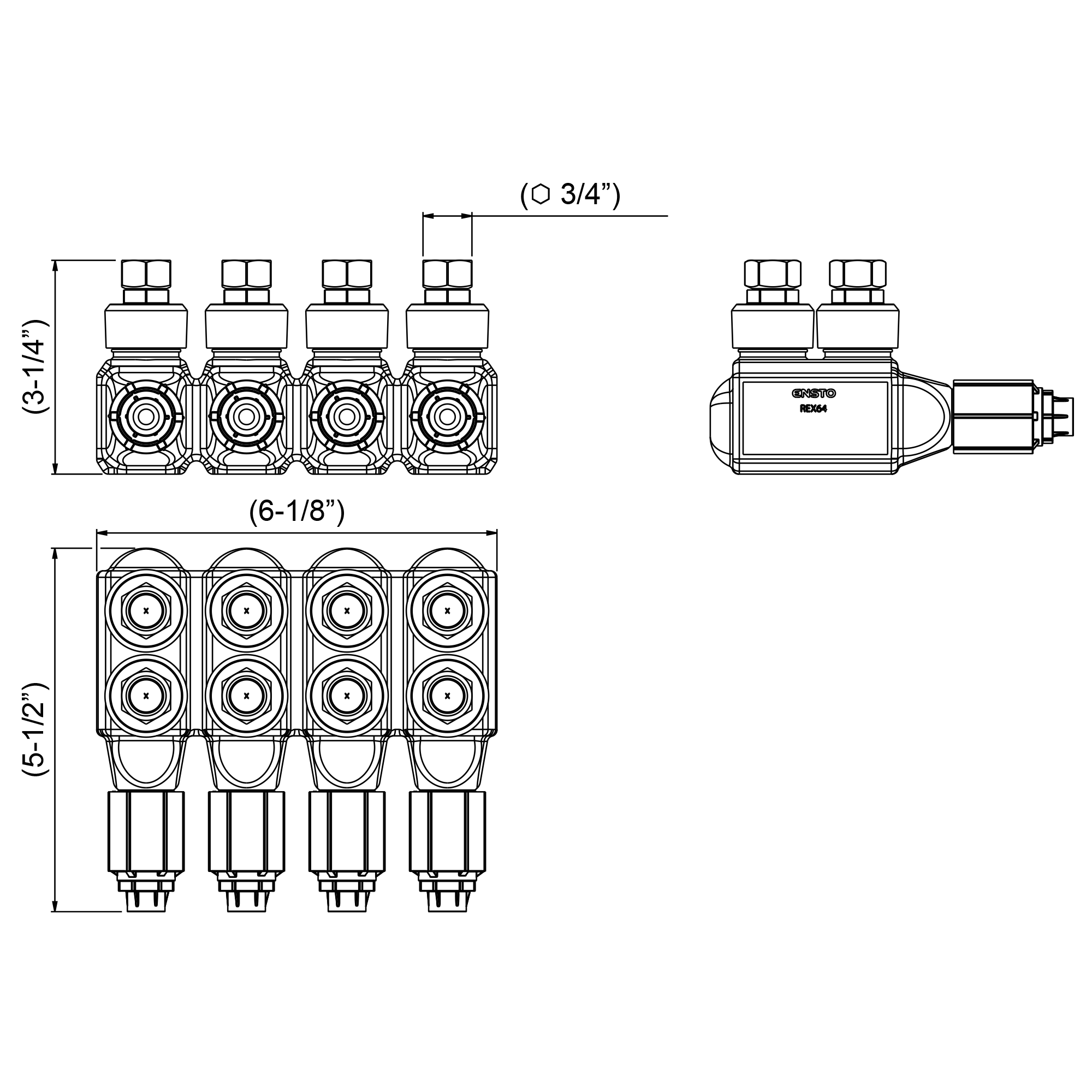

| Dimensions | |
| Weight | 2.2 lb |
| Height | 3.26 in |
| Width | 5.51 in |
| Length | 6.14 in |
| Features | |
| For conductor shape | Round |
| Rated maximum voltage | 600 volts |
| US specific | |
| Cross section stranded circular US | #6 AWG - 4/0 AWG |
| Carton | |
|---|---|
| Size | 12 pcs |
| Depth | 22.83 in |
| Height | 7.48 in |
| Width | 8.03 in |
| Weight | 28.26 lb |
| Volume | 5.93 gal |
| Pallet package | |
| Size | 384 pcs |
| Depth | 47.24 in |
| Height | 41.33 in |
| Width | 39.37 in |
| Weight | 948.51 lb |
| Volume | 332.85 gal |
