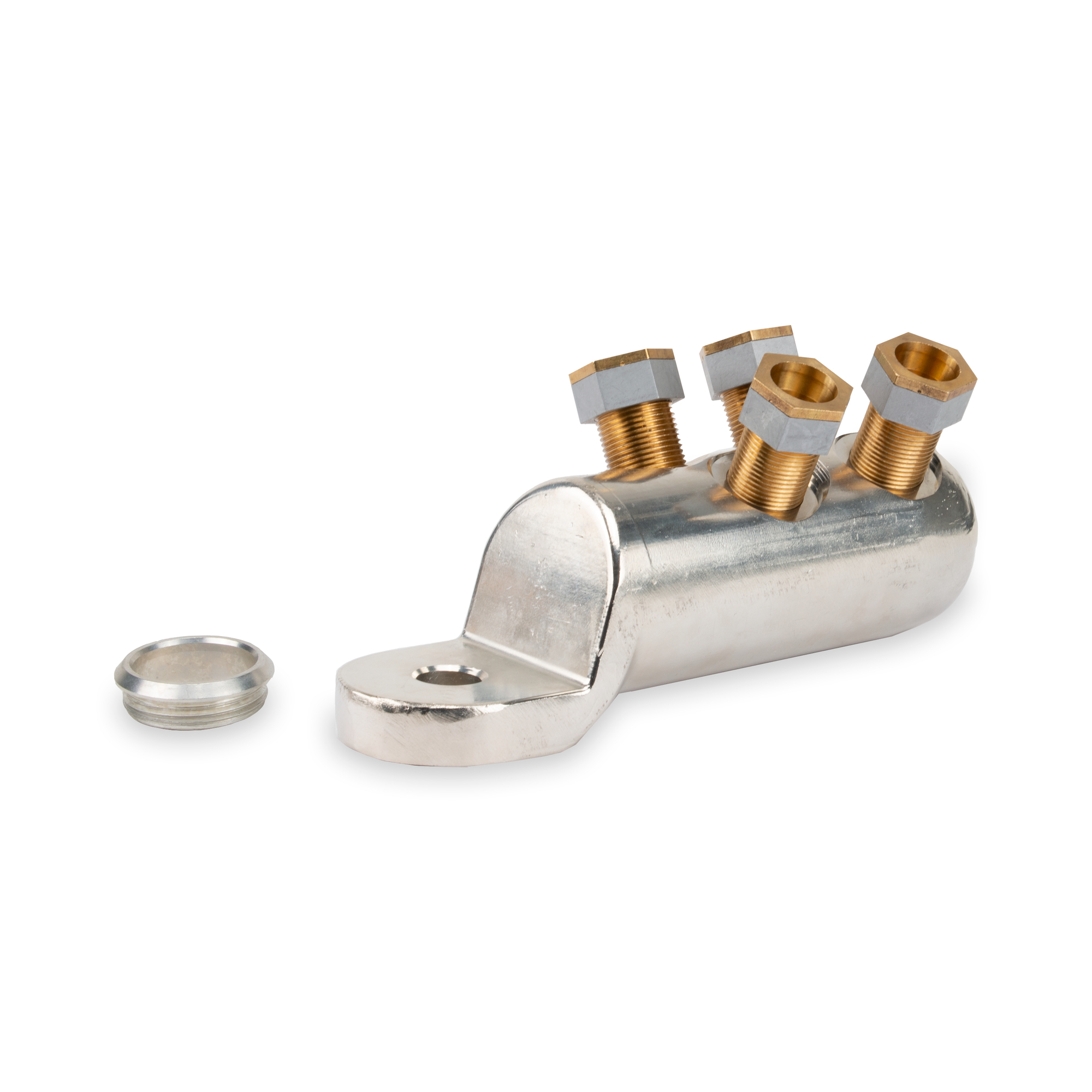

The cable lug is used for terminating conductors of cables up to 42 kV. Because of the shear head bolt construction, no crimping tools are needed. The required torque is achieved by tightening the bolt until it breaks off. The lug is longitudinally watertight. It is suitable for aluminium and copper conductors: solid and stranded, sector shaped and circular.
- Fast and easy installation
- Screw design with step less shearing
- Always correct cut-off point
- No need of hammering or grinding the screw after break.
| Code | LA800N17SB4 |
| GTIN | 6438389018080 |
| Name | Mechanical cable lug Al/Cu 400-800 mm², Ø17 mm |
