Cable connector mechanical M630-1000

Cable connector mechanical M630-1000

The connector is used for jointing conductors of cables up to 36 kV. Because of the shear head bolt construction, no crimping tools are needed. The required torque is achieved by tightening the bolt until it breaks off. The connector is water tight. It is suitable for aluminium and copper conductors: solid and stranded, sector shaped and circular. The cable core insulation may be plastic or paper.

  • Wide cross-section range: 10–800mm2
  • Fast and easy installation
  • Screw design with step less shearing
  • Always correct cut-off point
  • No need of hammering or grinding the screw after break.
Code M630-1000
GTIN 6438100308711
Name Cable connector mechanical
Al/Cu 630-1000 mm² 8 bolts
Contact sales

Technical information

Technical specifications

Technical information
Conductor material Al/Cu
Cross section stranded circular 630 ... 1000 mm²
Cross section solid circular 630 ... 1000 mm²

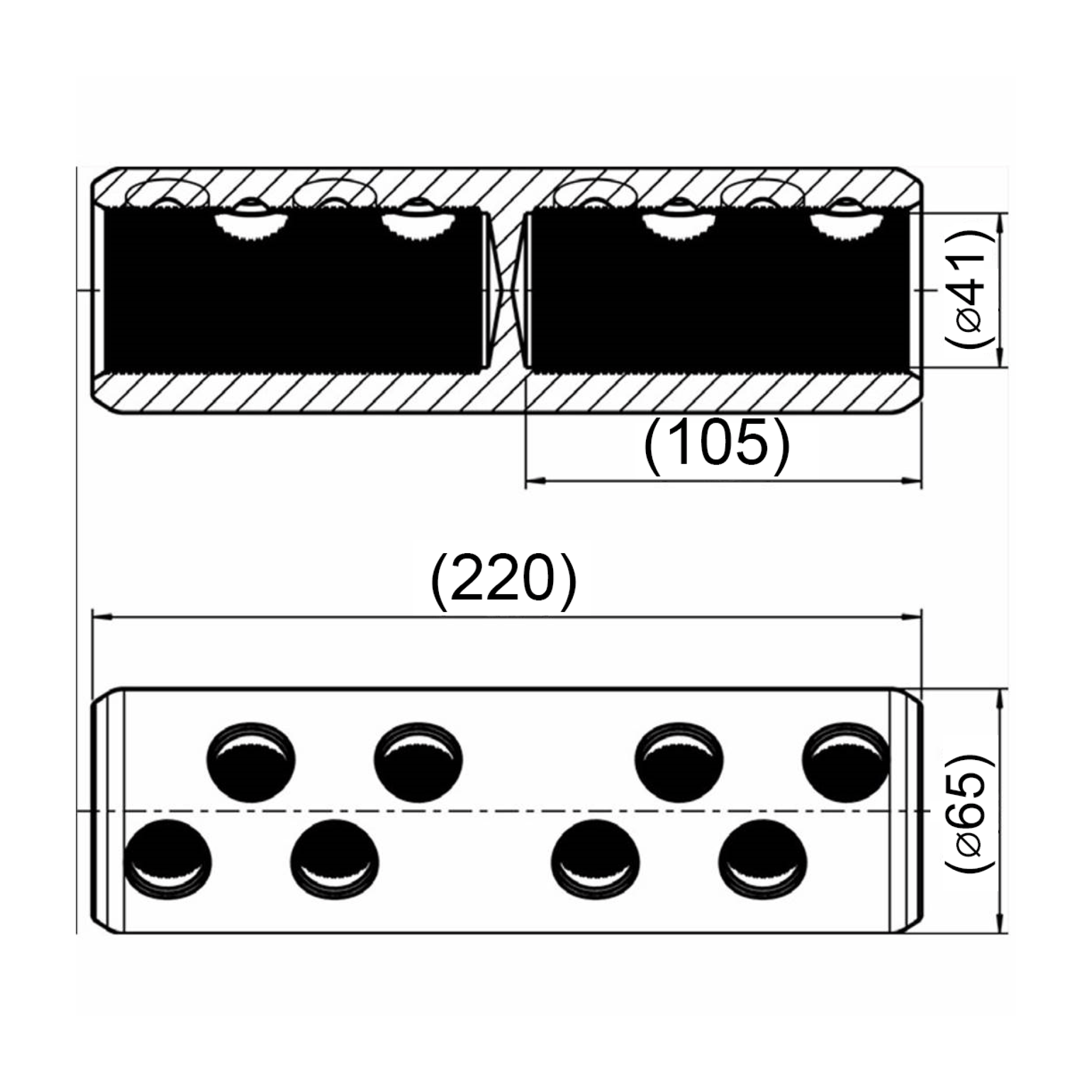

Dimensions
Weight 1.9 kg
Height 65 mm
Width 65 mm
Length 220 mm
Conductor hole diameter 41 mm
ETIM
ETIM Class EC001063
Nominal cross section copper, RM 630 ... 800 mm²
Nominal cross section aluminium, RM 630 ... 1000 mm²
Nominal cross section aluminium, RE 630 ... 1000 mm²
Material conductor Aluminium/copper
Surface protection Tinned
Oil stop/centre bar Yes
With insulation No
Voltage level Other
Number of screws 8
With soldering hole No
Degree of protection (IP) IP00
