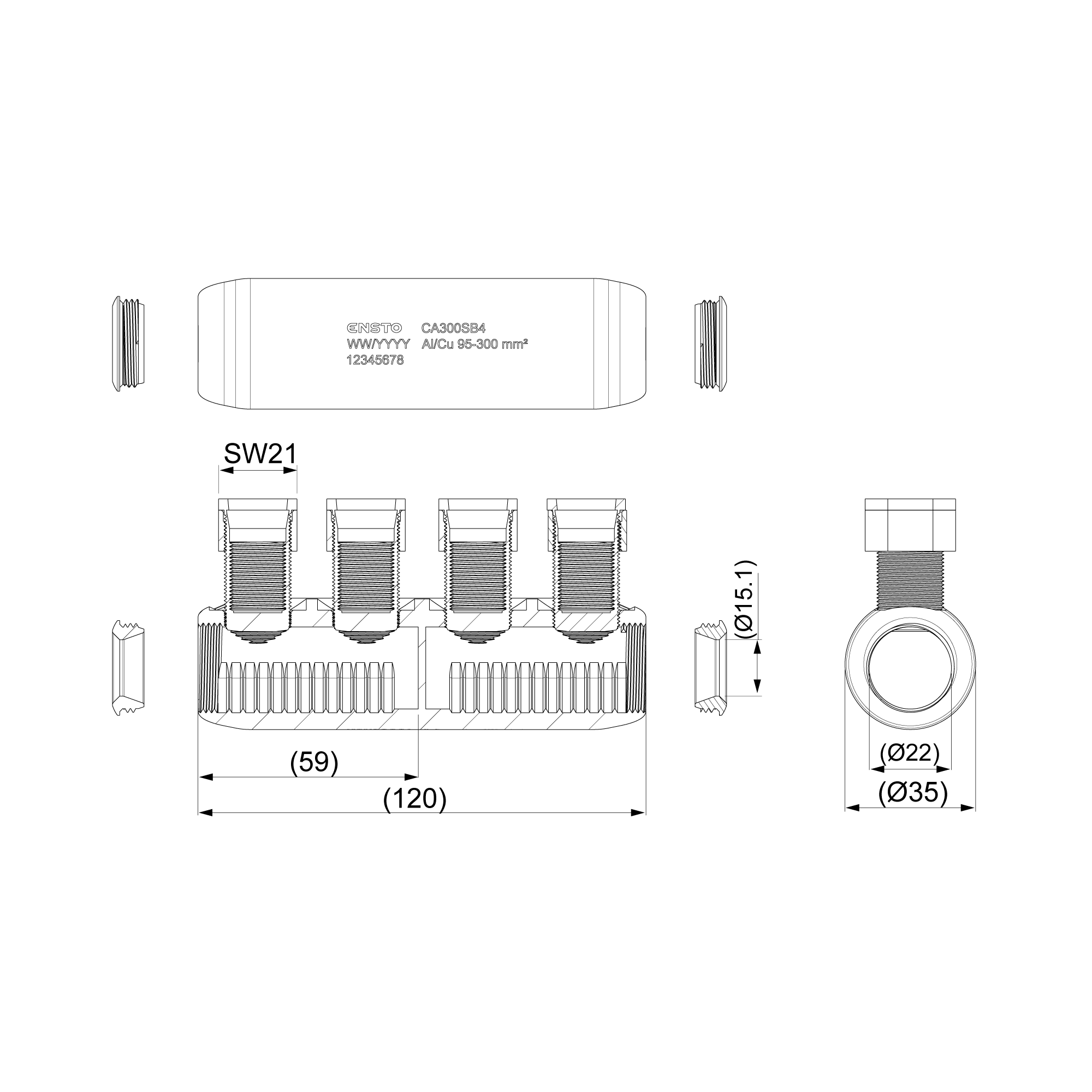

Cable connector mechanical CA300SB4
MV Stepless Screw Connector
| Code | CA300SB4 |
| GTIN | 6438100374280 |
| Name | Cable connector mechanical Al/Cu 95-300 mm² |
| Standards | |
|---|---|
| Standards | IEC 61238-1-3:2018 |
| Dimensions | |
| Weight | 0.304 kg |
| Width | 35 mm |
| Length | 120 mm |
| Nominal cross section | 95 ... 300 mm² |
| Conductor size Al | 95 ... 300 mm² |
| Conductor size Cu | 95 ... 300 mm² |
| Features | |
| For conductor shape | Sector, Solid, Round, Stranded |
| Environmental impact | |
| GWP-fossil, A1 | 2.01 kgCO2e |
| Environmental declaration type | Internal verification |
| Environmental data calculation date | 2026-06-26 00:00:00 |
| ETIM | |
| ETIM Class | EC001063 |
| Nominal cross section copper, RM | 95 ... 300 mm² |
| Nominal cross section copper, RE | 95 ... 300 mm² |
| Nominal cross section copper, SM | 95 ... 150 mm² |
| Nominal cross section aluminium, SM | 95 ... 150 mm² |
| Nominal cross section aluminium, SE | 95 ... 150 mm² |
| Material conductor | Aluminium/copper |
| Surface protection | Tinned |
| Oil stop/centre bar | Yes |
| With insulation | No |
| Number of screws | 4 |
| With soldering hole | No |
| Degree of protection (IP) | IP00 |
| Plastic bag | |
|---|---|
| Size | 1 pce |
| Depth | 300 mm |
| Height | 10 mm |
| Width | 152 mm |
| Weight | 0.308 kg |
| Volume | 0.456 l |
| Carton | |
| Size | 24 pcs |
| Depth | 375 mm |
| Height | 157 mm |
| Width | 250 mm |
| Weight | 7.634 kg |
| Volume | 14.71875 l |
