The connector is used for jointing conductors of cables up to 42 kV. Because of the shear head bolt construction, no crimping tools are needed. The required torque is achieved by tightening the bolt until it breaks off. The connector is longitudinally watertight. It is suitable for aluminium and copper conductors: solid and stranded, sector shaped and circular. The cable core insulation may be plastic or paper.
- Wide cross-section range: 10–800mm2
- Fast and easy installation
- Screw design with step less shearing
- Always correct cut-off point
- No need of hammering or grinding the screw after break.
| Code | CA150SB4 |
| GTIN | 6438100361129 |

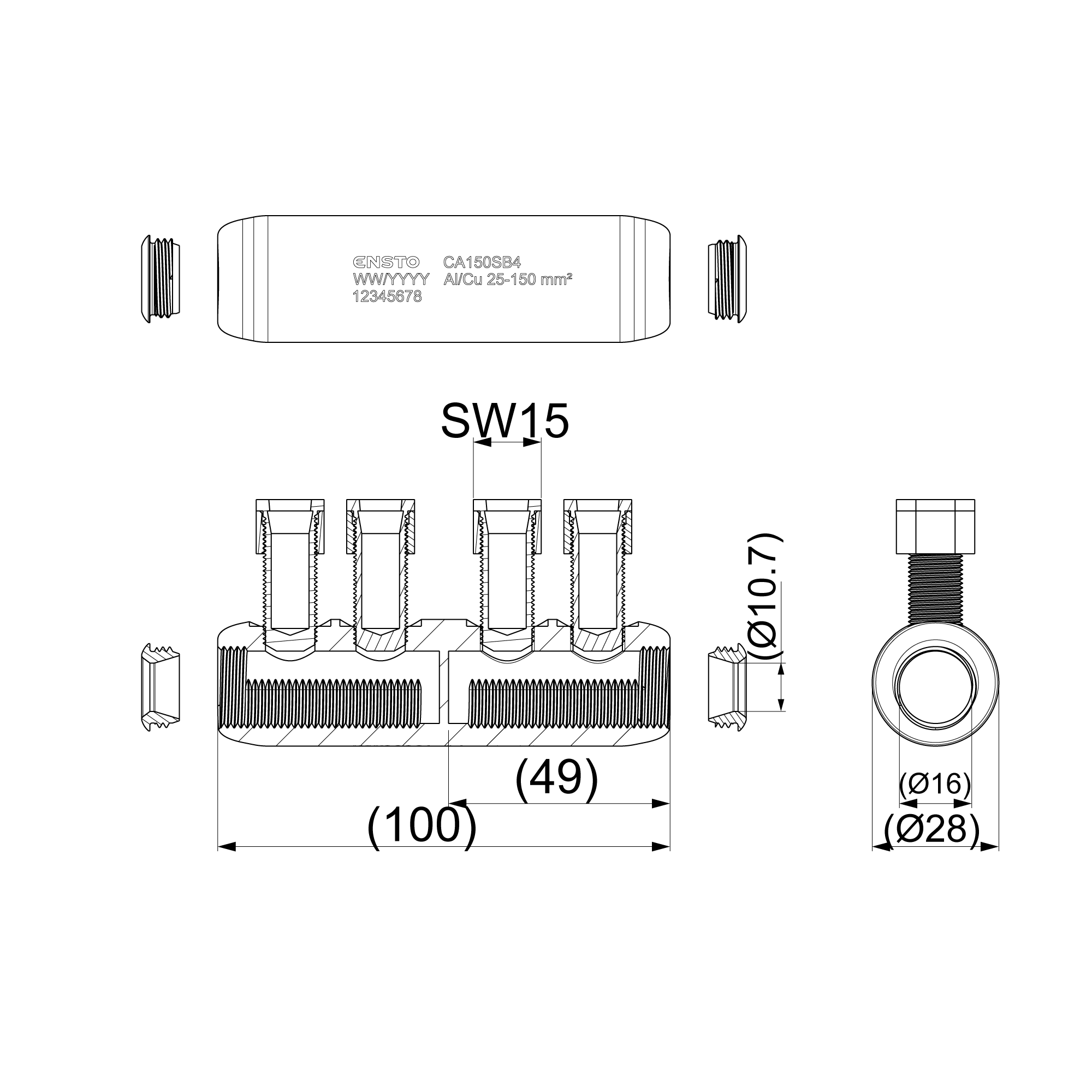

| Name | Cable connector mechanical Al/Cu 25-150 mm² |
