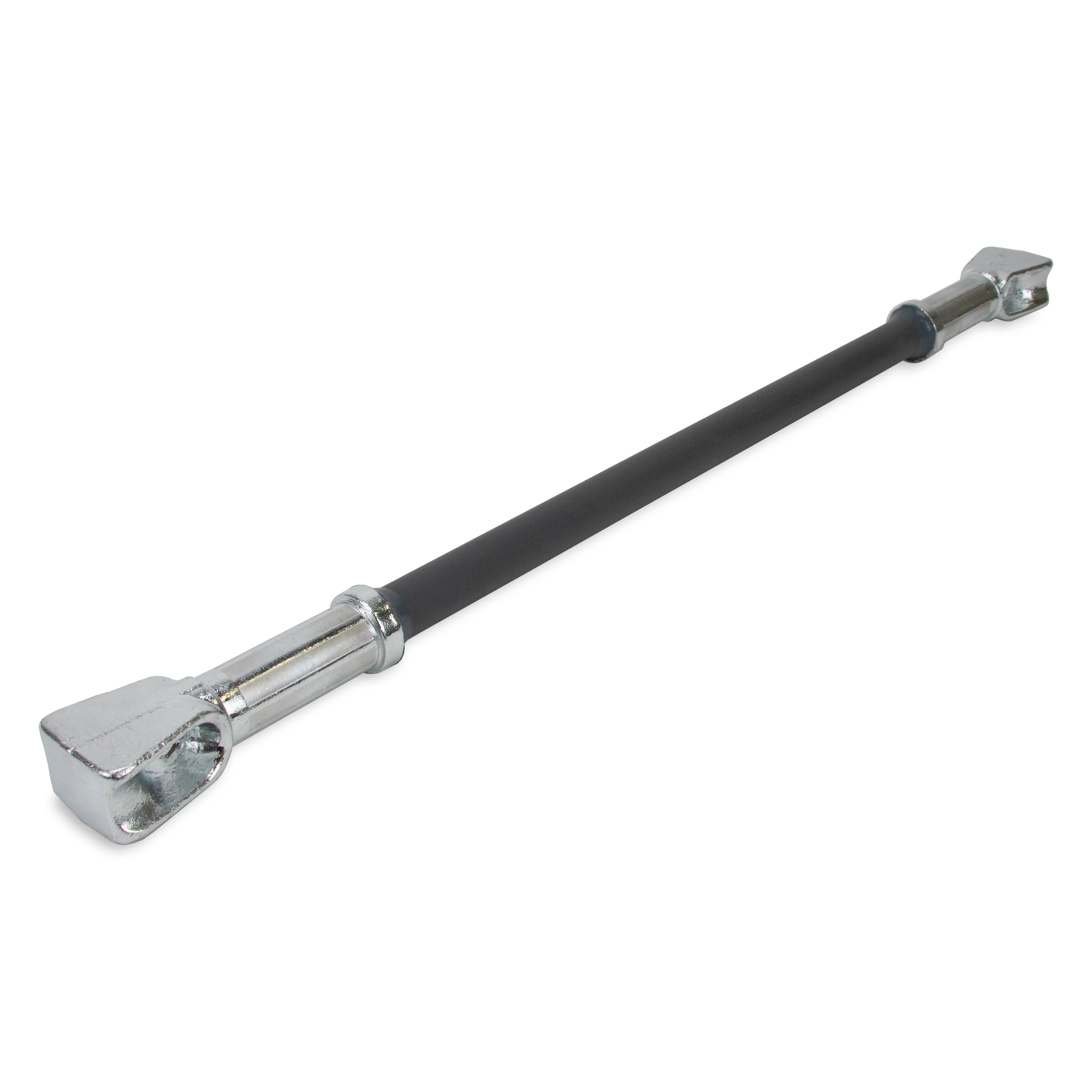

Composite stay insulator SDI72
The SDI72 stay wire insulator combines high mechanical and electrical capacity with a lightweight design. The insulating section is made of glass fibre covered in silicone rubber, and the end thimble is made of hot-dip galvanized steel.
| Code | SDI72 |
| GTIN | 6438389106060 |
| Name | Composite stay insulator 120 kN, CD=405 |
| Dimensions | |
|---|---|
| Weight | 1.84 kg |
| Height | 51 mm |
| Width | 32 mm |

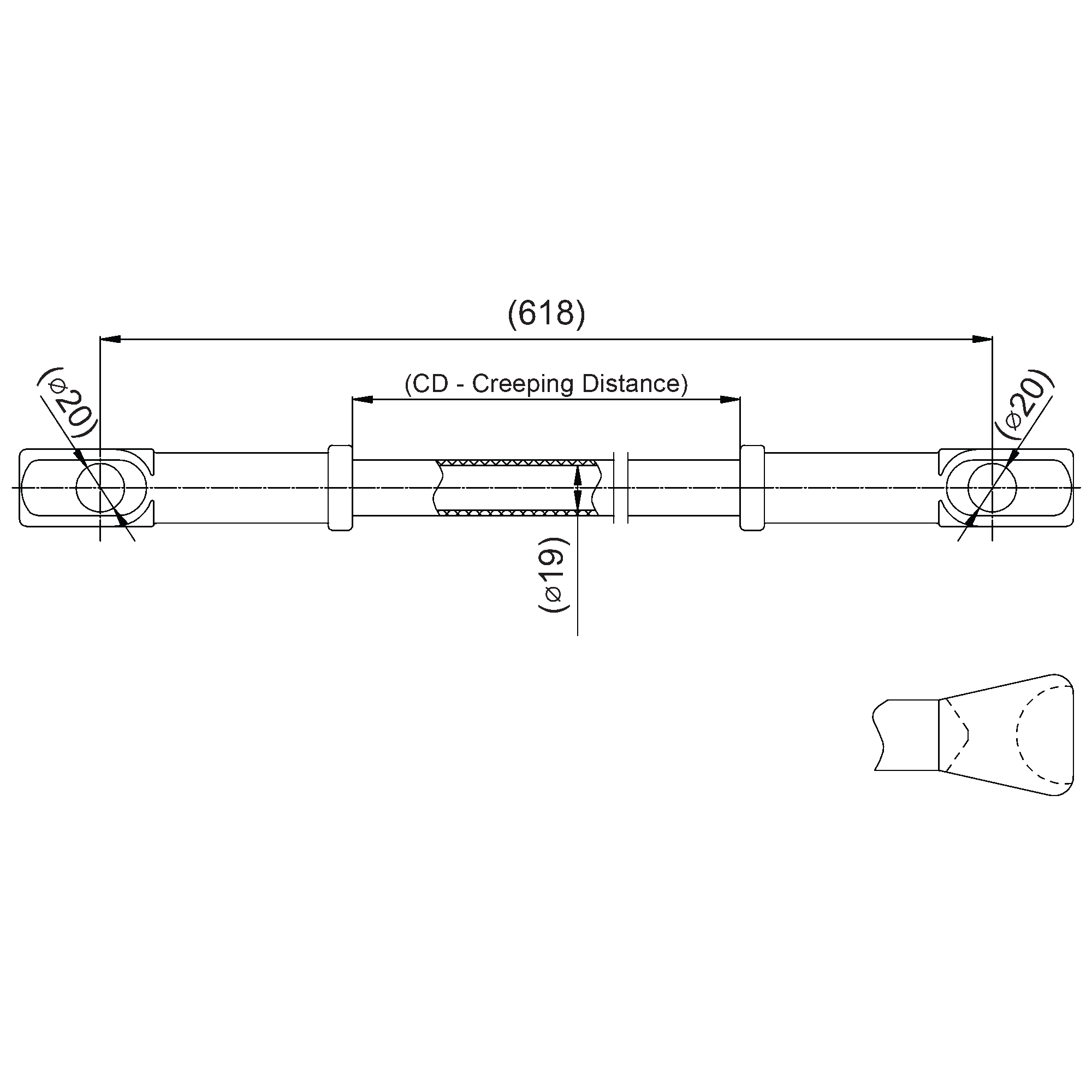

| Length | 686 mm |
| Creepage distance | 410 mm |
| Electrical values | |
| Dry lightning impulse withstand voltage | 250 ... 250 kV |
| Wet power frequency withstand voltage | 75 ... 75 kV |
| Features | |
| Standards | IEC 61109 |
| Mechanical | |
| SMFL | 120 kN |
| ETIM | |
| ETIM Class | EC003514 |
| Model | Tension insulator |
| Rated voltage | 24 kV |
| Material | Composite |
| Length | 686 mm |
| Diameter | 32 mm |
| Weight | 1.84 kg |
| Creepage path | 410 mm |
| Min. dry lightning impulse withstand voltage | 250 kV |
| Wet power frequency withstand voltage | 75 kV |
| Breaking load | 120 kN |
| Carton | |
|---|---|
| Size | 10 pcs |
| Depth | 720 mm |
| Height | 120 mm |
| Width | 225 mm |
| Weight | 19.400 kg |
| Volume | 19.44 l |
| Pallet package | |
| Size | 240 pcs |
| Depth | 730 mm |
| Height | 840 mm |
| Width | 930 mm |
| Weight | 485.600 kg |
| Volume | 570.276 l |
