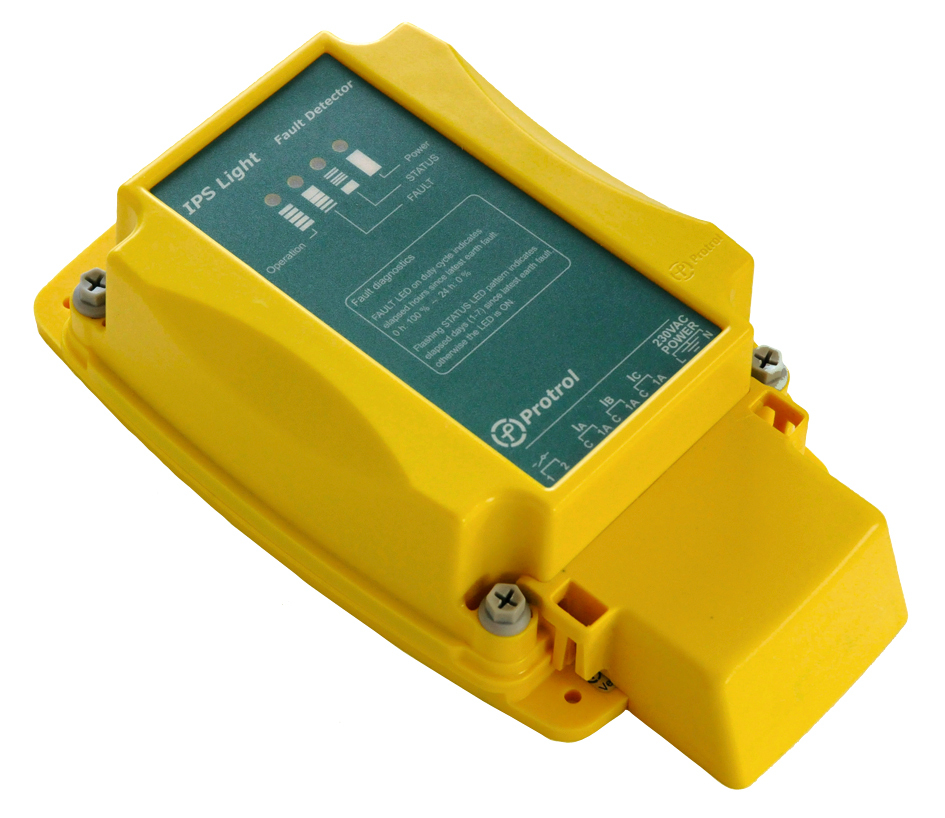

Fault Passage Indicator PT101121
Fault detector with rugged visual indicator. 230 VAC supply power from secondary substation transformer.
| Code | PT101121 |
| GTIN | 6438389100112 |
| Name | Fault Passage Indicator IPS Relay FPI |
| Dimensions | |
|---|---|
| Weight | 0.48 kg |
| Height | 61 mm |
| Width | 122 mm |
| Length | 229 mm |
| Features | |
| Standards | EN 60068-2-1, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 60068-2, EN 61000-6-5, EN 61000-6-5, EN 61000-6-4, EN 61000-6-2, EN 60068-2-30, EN 60068-2-2 |
| Carton | |
|---|---|
| Size | 1 pcs |
| Weight | 0.530 kg |
AQ-50 Fault Detection Devices detect even high-impedance earth faults in any type of cable or overhead line distribution network (compensated, isolated, or directly earthed).
