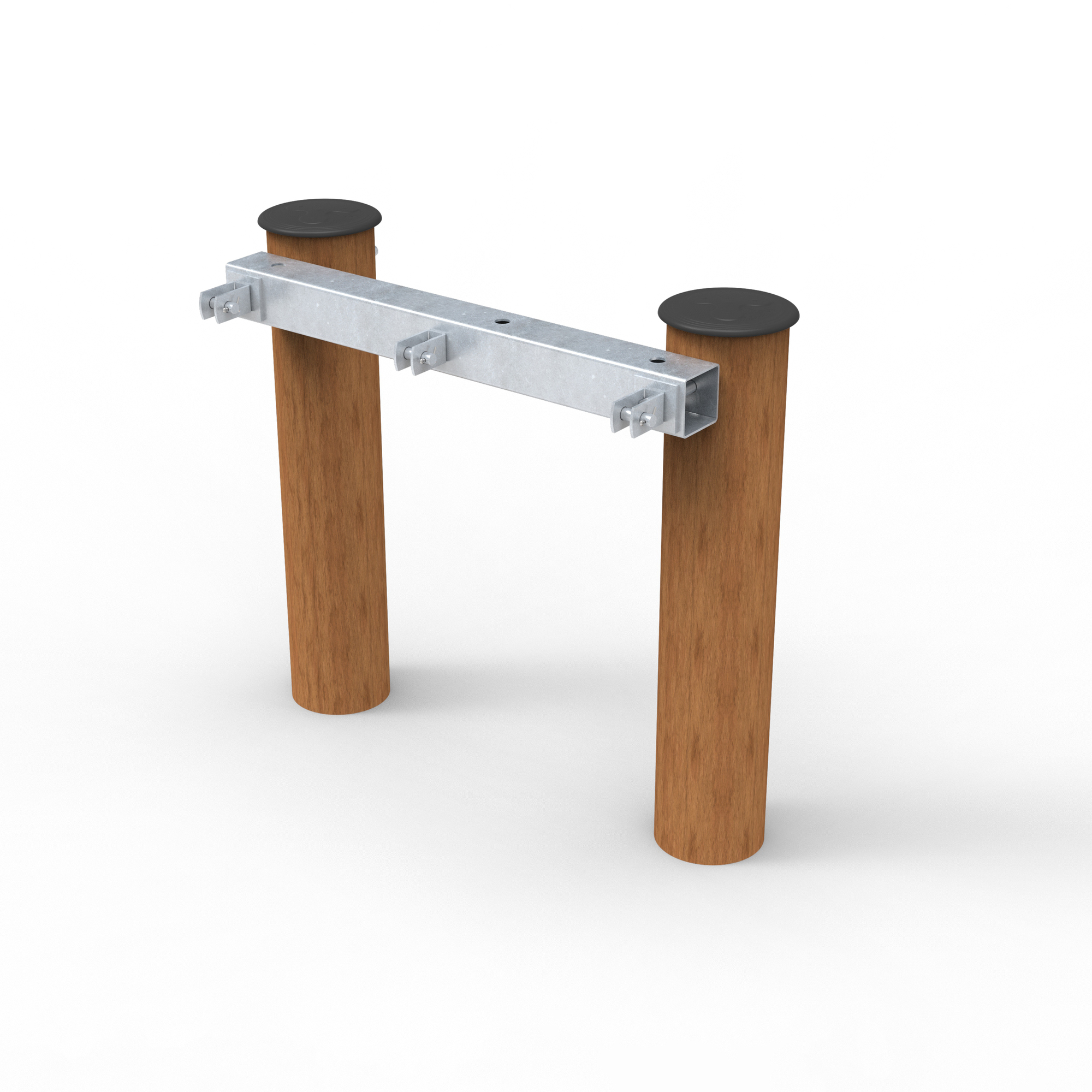

Traverse de borne CC SH156
For terminating single, three phase covered conductor line. Allowed loads for the crossarm at conductor fixing points are: Fz=26.0 kN horizontally along conductors.
| Code | SH156 |
| GTIN | 6418677406874 |

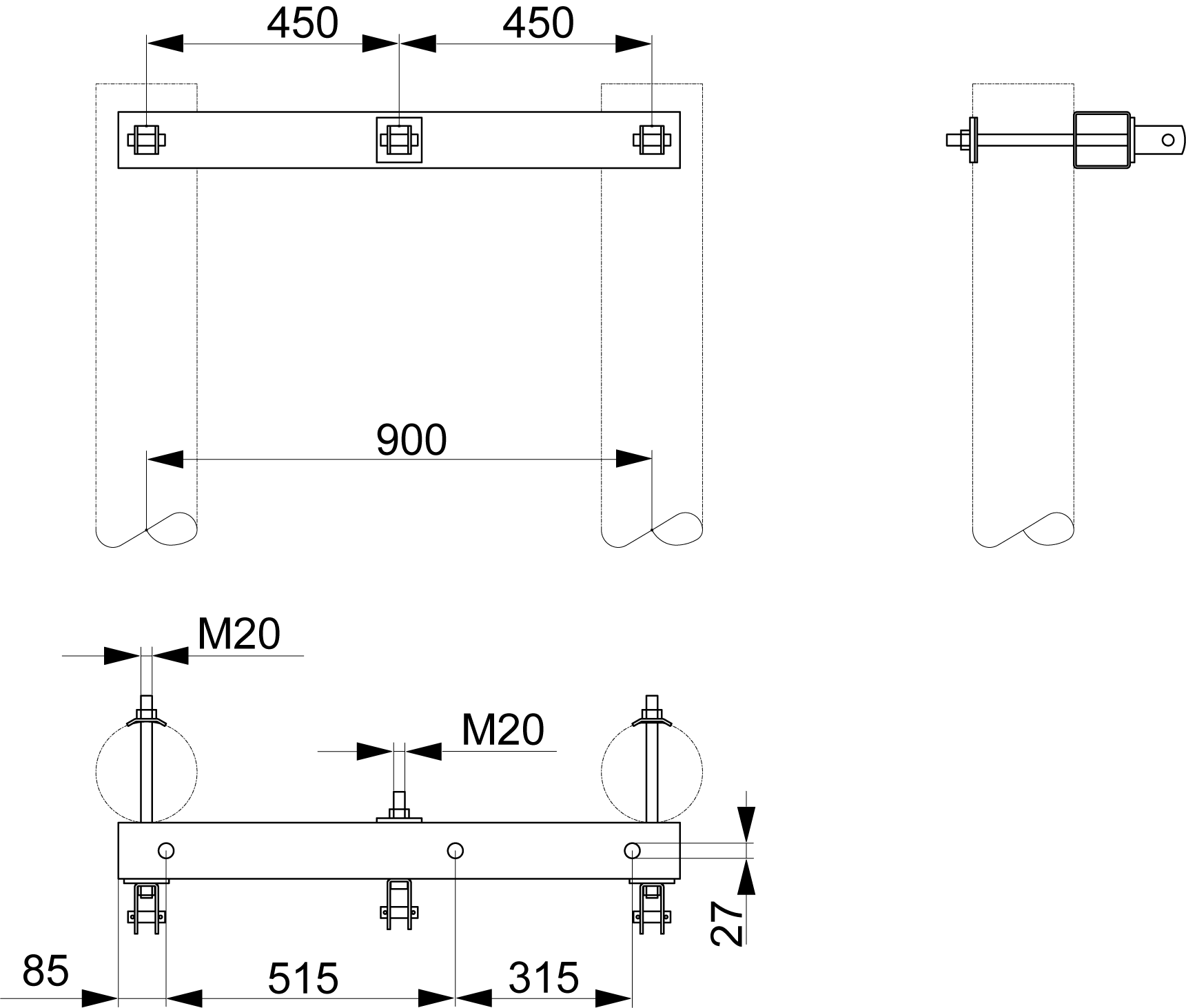

| Nom | Traverse de borne CC 20 kV, A=450, 2-poles |
| Dimensions | |
|---|---|
| Poids | 17.9 kg |
| Mécanique | |
| Charge permise au point de raccordement | Fz = 26.0 kN |
| ETIM | |
| ETIM Class | EC003515 |
| Type | Deadend cross arm |
| Adapté à | Two pole |
| Forme du profilé | RHS (Rectangular Hollow Section) |
| Matériau | Steel |
| Traitement de surface | Galvanized |
| Laminé | No |
| Surface du conducteur | Covered |
| Tension assignée max. | 20 kV |
| Carton | |
|---|---|
| Taille | 1 pce |
| Profondeur | 414 mm |
| Hauteur | 124 mm |
| Largeur | 147 mm |
| Poids | 18.061 kg |
| Volume | 7.546392 l |
| Emballage palette | |
| Taille | 25 pce |
| Profondeur | 1200 mm |
| Hauteur | 1050 mm |
| Largeur | 800 mm |
| Poids | 471.525 kg |
| Volume | 1008 l |
