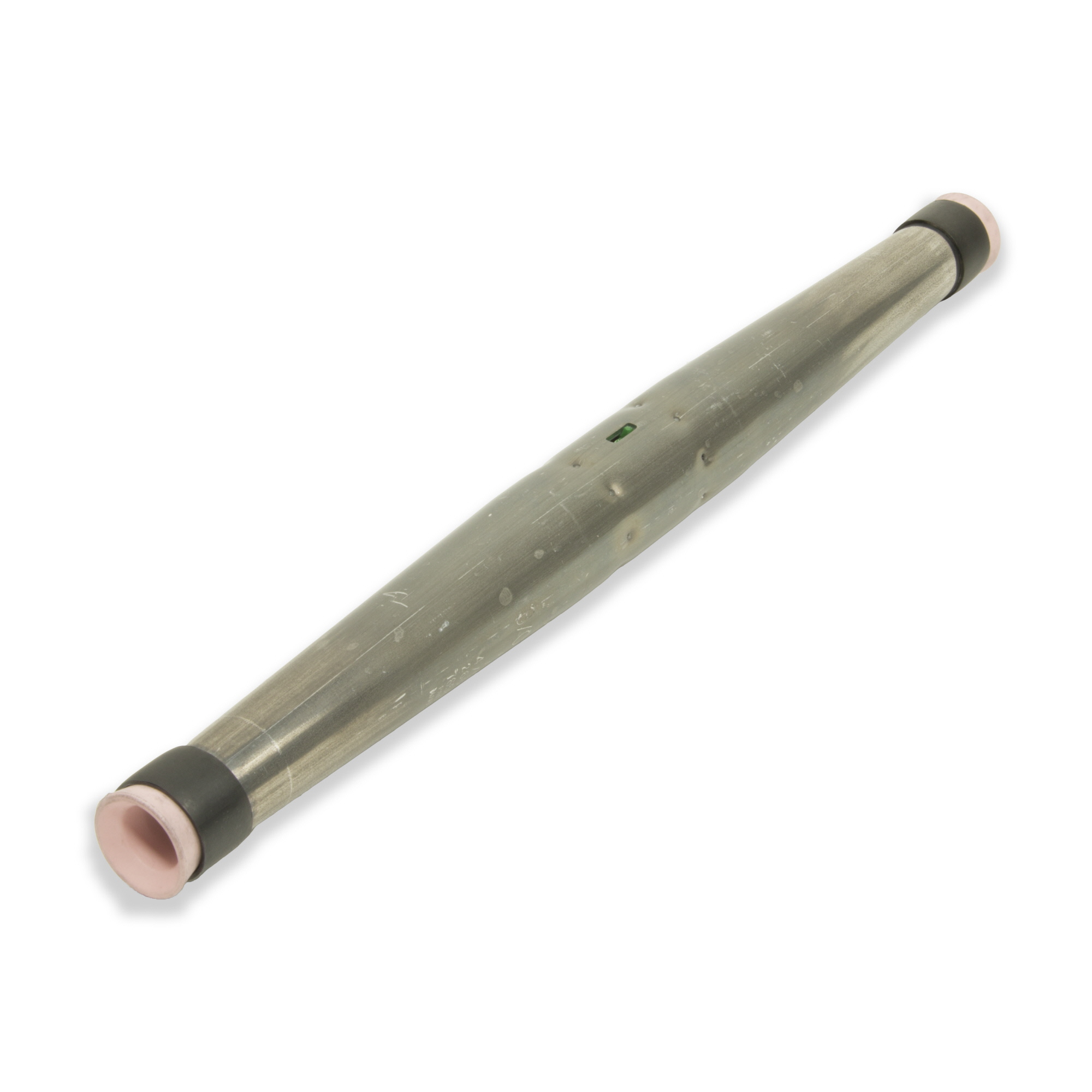

Jonction de fil de tension CIL65-CRS

Jonction de fil de tension CIL65-CRS

The automatic joint is reliable and quick to make. No tools are needed for the installation and with the color code, you can find the correct size easily. The wedges ensure a safe joint. CRS version is meant for environmentally severe areas. It includes pop up tabs, which verify proper conductor insertion. It also includes stainless steel spring, aluminum pilot cup and advanced synthetic inhibitor. Compatibility of the joint and conductor must be checked from the supplier.

Code CIL65-CRS
GTIN 6438100341893
Nom Jonction de fil de tension
12.75-14.86 mm, pink / black
Contacter le service commercial

Informations techniques

Spécifications techniques

Couleurs
Couleur Rose-noir
Dimensions
Poids 0.516 kg
Diamètre du conducteur 12.75 ... 14.86 mm
Caractéristiques
Pour taille de conducteur AAC, AAAC, ACSR 85/14 (Pigeon)
ETIM
ETIM Class EC001169
Nombre de conducteurs 1
Section nominale du conducteur 120 ... 150 mm²
Sans halogène Yes

Packaging

Carton
Taille 25 pcs
Profondeur 508 mm
Hauteur 216 mm
Largeur 263 mm
Poids 13.216 kg
Volume 28.858464 l
Emballage palette
Taille 600 pcs
Profondeur 1200 mm
Hauteur 970 mm
Largeur 800 mm
Poids 337.184 kg
Volume 931.2 l
