Amortisseur vibrations spirale CO29
Spiral Vibration Dampers are designed to control high frequency aeolian vibration and are particularly effective on small sized earth wires and cables. They do not impose a concentrated mass or clamping stress on the conductor or cable at the point of attachment and are therefore ideally suited for use on Covered Conductors, OPGW, OPCON and ADSS applications.
| Code | CO29 |
| GTIN | 6438100375539 |

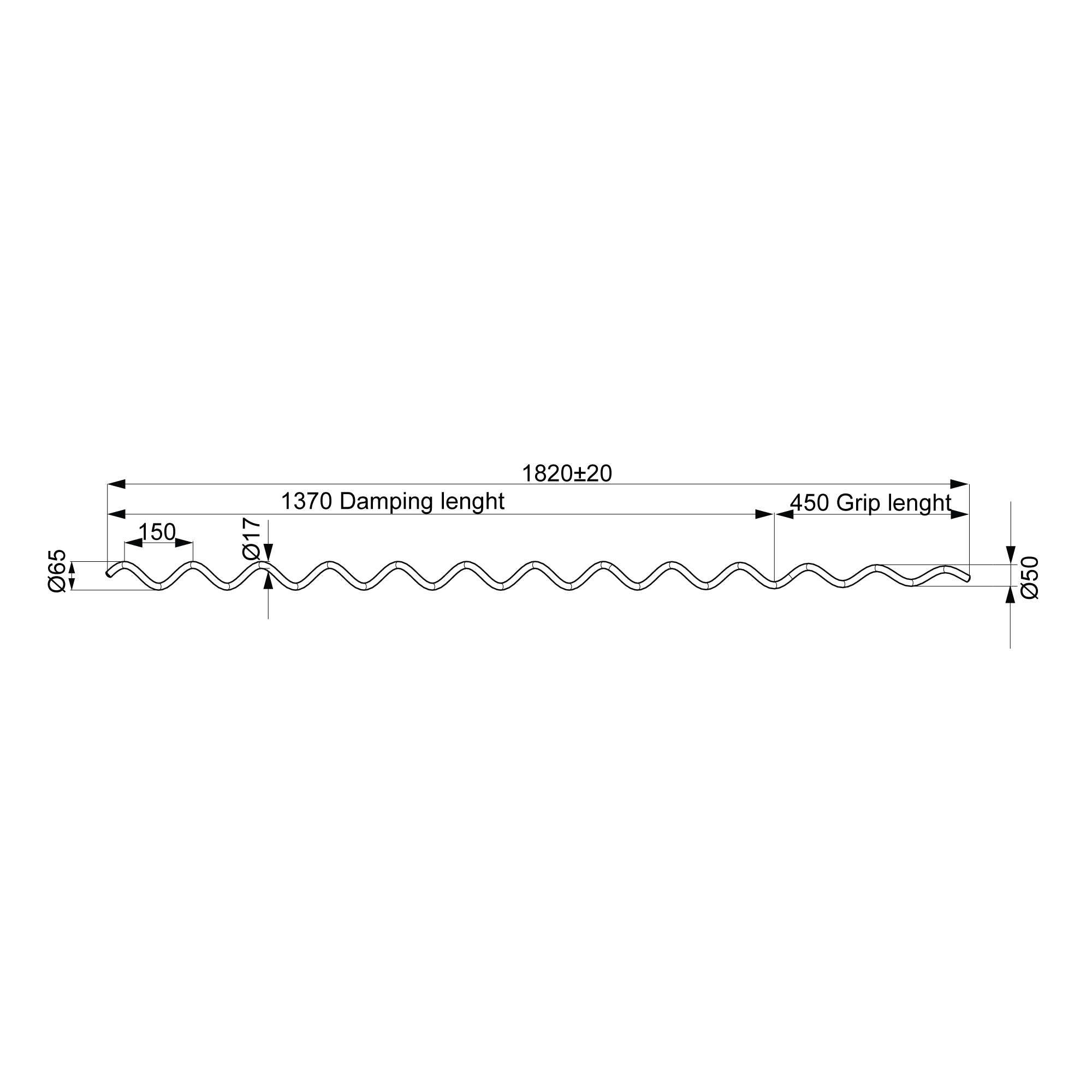

| Nom | Amortisseur vibrations spirale Length 1820 mm, rod diameter 17 mm, diameter range 19.3-22.5 mm |
| Dimensions | |
|---|---|
| Poids | 0.72 kg |
| Longueur | 1820 mm |
| Diamètre | 19.3 ... 22.5 mm |
| ETIM | |
| ETIM Class | EC000033 |
| Matériau | Plastic |
| Qualité du matériau | Other |
| Largeur | 17 mm |
| Couleur | White |
| Sac en plastique | |
|---|---|
| Taille | 1 pce |
| Poids | 0.745 kg |
| Carton | |
| Taille | 30 pcs |
| Profondeur | 1850 mm |
| Hauteur | 250 mm |
| Largeur | 250 mm |
| Poids | 22.700 kg |
| Volume | 115.625 l |
