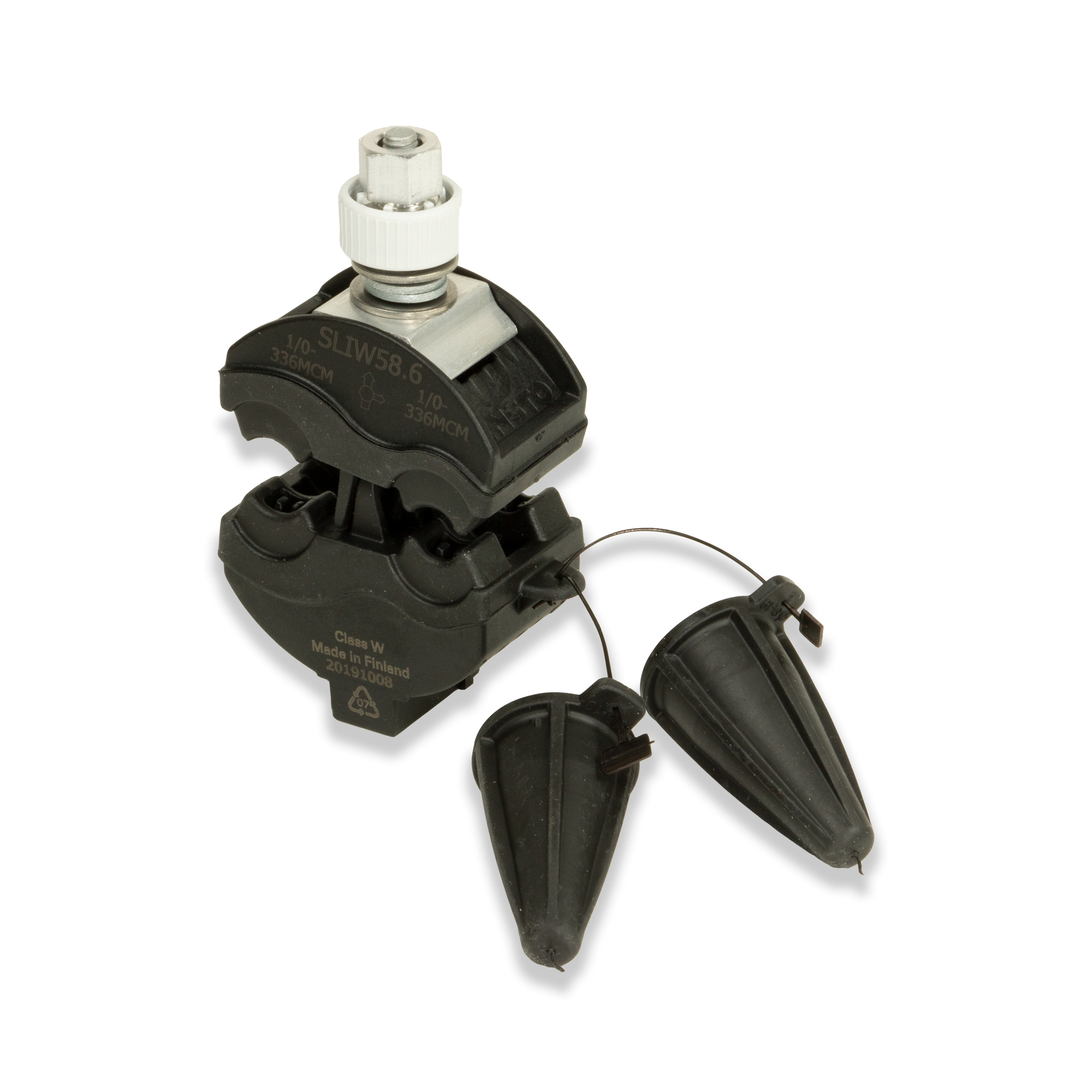

Insulation piercing connector SLIW58.6
SLIW58.6 is for use with insulated aluminium or copper conductors. Fully insulated bolt provides safe live line working. Both main and branch conductor insulations are pierced by single bolt action. Test voltage 6 kV/50 Hz/1 min in water. Connector's design enables live line installation without peeling insulation from conductor.
| Code | SLIW58.6 |
| GTIN | 6438100343620 |
| Name | Insulation piercing connector Main 336 MCM - 1/0, Tap 336 MCM - 1/0 |

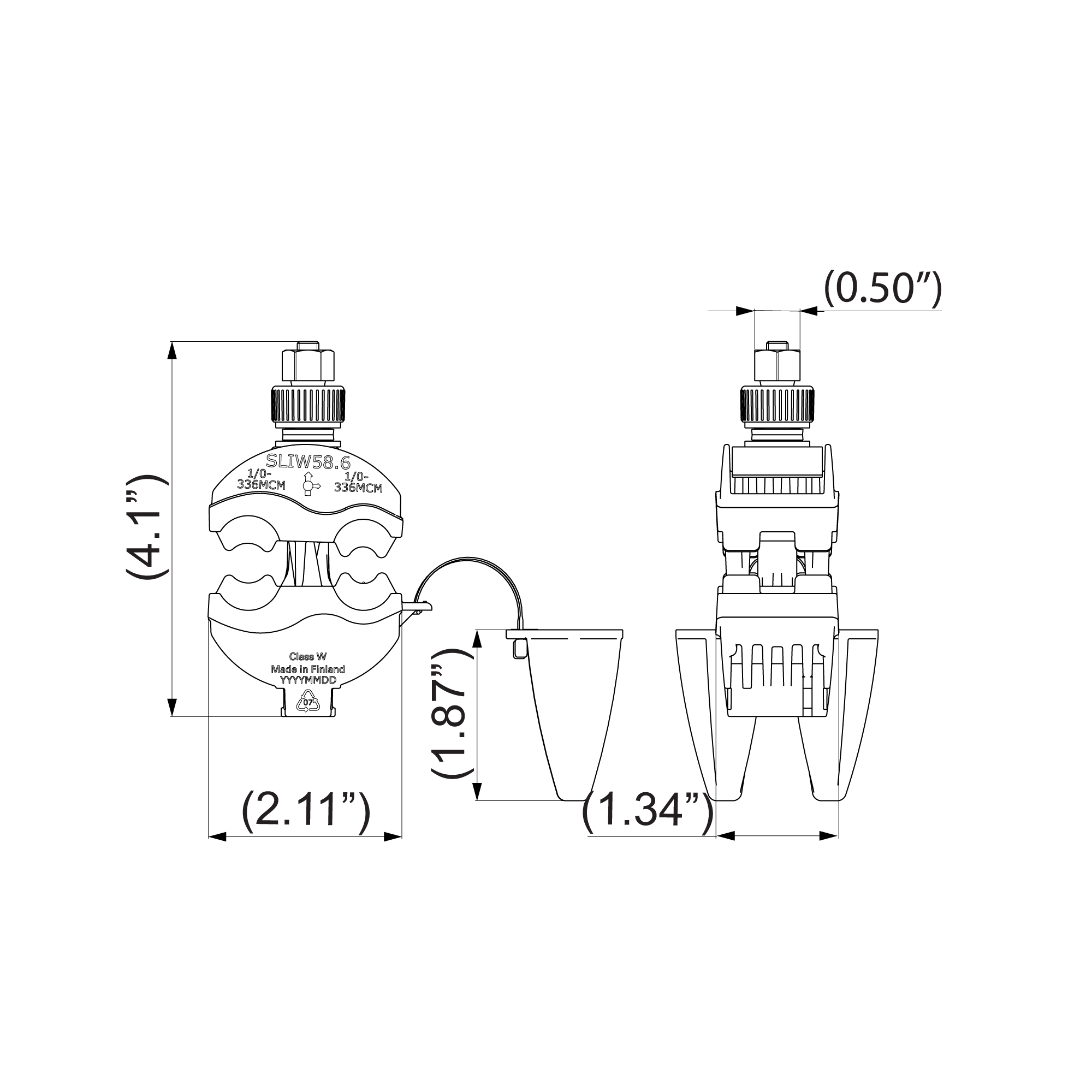

| Dimensions | |
|---|---|
| Weight | 0.35 lb |
| Height | 4.09 in |
| Width | 1.33 in |
| Length | 2.12 in |
| Environmental impact | |
| GWP-fossil, A1-A3 | 1.22 kgCO2e |
| GWP-fossil, A1-A3 /kg | 7.49 kgCO2e/kg |
| Certificates | |
| Standards | EN 50483-4:2009 |
| Electrical values | |
| Highest system voltage | 1 kV |
| Test voltage in water | 6 kV / 50 Hz / 1 min |
| Features | |
| Connectors | 50 mm - 150 mm |
| For conductor size | 336 MCM - 1/0 |
| Mechanical | |
| Tightening torque | 132±9 lb-in |
| ETIM | |
| ETIM Class | EC001062 |
| Nominal cross section main conductor, SM | 50 ... 150 mm² |
| Nominal cross section branch conductor, SE/RE | 50 ... 150 mm² |
| Nominal cross section branch conductor, SM/RM | 50 ... 150 mm² |
| Material main conductor | Aluminium/copper |
| Material branch conductor | Aluminium/copper |
| Terminal insulated | Yes |
| Clamping channel opening main conductor | Both sides open |
| Clamping channel opening branch conductor | Both sides open |
| Surface protection | Tinned |
| Type of connection | Insulation piercing connector IPC |
| Plastic bag | |
|---|---|
| Size | 12 pcs |
| Depth | 13.77 in |
| Height | 0.39 in |
| Width | 9.05 in |
| Weight | 4.33 lb |
| Volume | 0.21 gal |
| Carton | |
| Size | 60 pcs |
| Depth | 15.66 in |
| Height | 8.7 in |
| Width | 10.35 in |
| Weight | 22.26 lb |
| Volume | 6.11 gal |
