Insulation piercing connector SLIW54.6
SLIW54.6 is for use with insulated aluminium or copper conductors. Fully insulated bolt provides safe live line working. Both main and branch conductor insulations are pierced by single bolt action. Test voltage 6 kV/50 Hz/1 min in water. Connector's design enables hot line installation without peeling insulation from conductor.
| Code | SLIW54.6 |
| GTIN | 6438100343644 |
| Name | Insulation piercing connector Main 250 MCM - #6, Tap 1/0 - #10 |

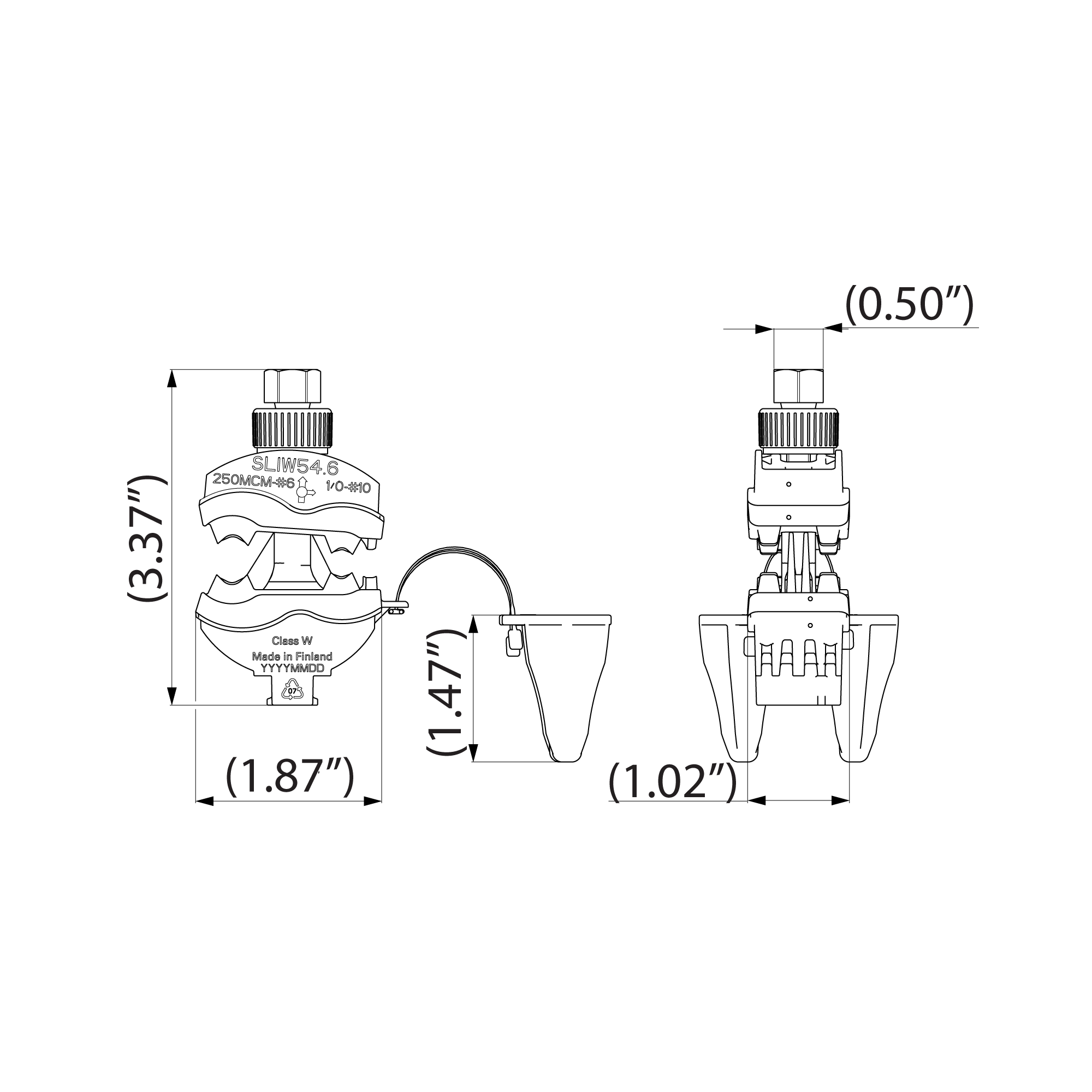

| Dimensions | |
|---|---|
| Weight | 0.2 lb |
| Height | 3.54 in |
| Width | 1.57 in |
| Length | 1.77 in |
| Main conductor mm² | 16-120 |
| Branch conductor mm² | 6-50 |
| Conductor diameter mm | 7-17.6 / 4-12.1 |
| Environmental impact | |
| GWP-fossil, A1-A3 | 0.68 kgCO2e |
| GWP-fossil, A1-A3 /kg | 7.49 kgCO2e/kg |
| Certificates | |
| Standards | EN 50483-4:2009 |
| Electrical values | |
| Highest system voltage | 1 kV |
| Test voltage in water | 6 kV / 50 Hz / 1 min |
| Mechanical | |
| Tightening torque Nm | 10 Nm |
| ETIM | |
| ETIM Class | EC001062 |
| Nominal cross section main conductor, SM | 16 ... 120 mm² |
| Nominal cross section branch conductor, SE/RE | 6 ... 50 mm² |
| Nominal cross section branch conductor, SM/RM | 6 ... 50 mm² |
| Material main conductor | Aluminium/copper |
| Material branch conductor | Aluminium/copper |
| Terminal insulated | Yes |
| Clamping channel opening main conductor | Both sides open |
| Clamping channel opening branch conductor | Both sides open |
| Surface protection | Tinned |
| Type of connection | Insulation piercing connector IPC |
| Plastic bag | |
|---|---|
| Size | 12 pce |
| Weight | 2.46 lb |
| Carton | |
| Size | 60 pce |
| Depth | 15.15 in |
| Height | 6.49 in |
| Width | 10.23 in |
| Weight | 13.41 lb |
| Volume | 4.36 gal |
| Pallet package | |
| Size | 3240 pce |
| Depth | 47.24 in |
| Height | 44.88 in |
| Width | 31.49 in |
| Weight | 768.5 lb |
| Volume | 289.1 gal |
