Joint NO1170165

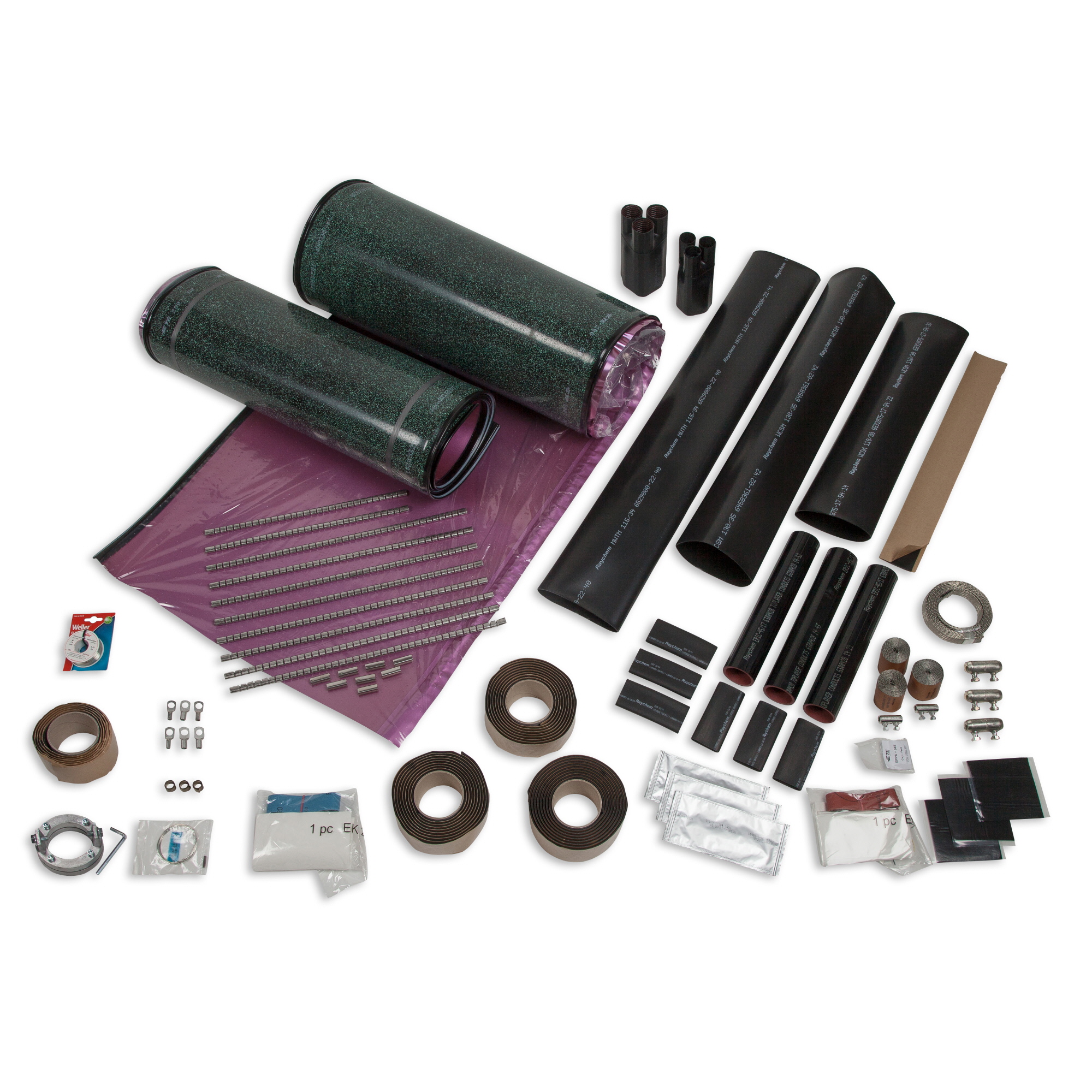

Complete splice for submarine cable with screen of longitudinal copper threads, copper laminate, copper tape, or copper foil, TSRE or TSRA or equivalent, to the earthcable type TSLF, or TSLE. Contains all of the components for the handling of fully complies with the reinforcement and mastic filling etc. Complete with mechanical connectors.
| Code | NO1170165 |
| GTIN | 7070918494959 |
| Name | Joint Splice subsea cable TSRE/A aga |
| Dimensions | |
|---|---|
| Weight | 7 kg |
| ETIM | |
| ETIM Class | EC001169 |
| Rated voltage U0/U (Um) | 12/20 (24) kV |
| Model | Heat-shrink |
| Insulating material | Plastic |
| For connection of paper- with plastic insulated cables | No |
| Number of conductors | 3 |
| Nominal cross section conductor | 95 ... 240 mm² |
| Mining sector approval | No |
| With concentric shielding | No |
| Suitable for | Other |
| Connection accessories included | Screw connector with shear-off head |
| Halogen free | No |
| Carton | |
|---|---|
| Size | 1 pce |
| Weight | 7.050 kg |
