Joint NO1170161

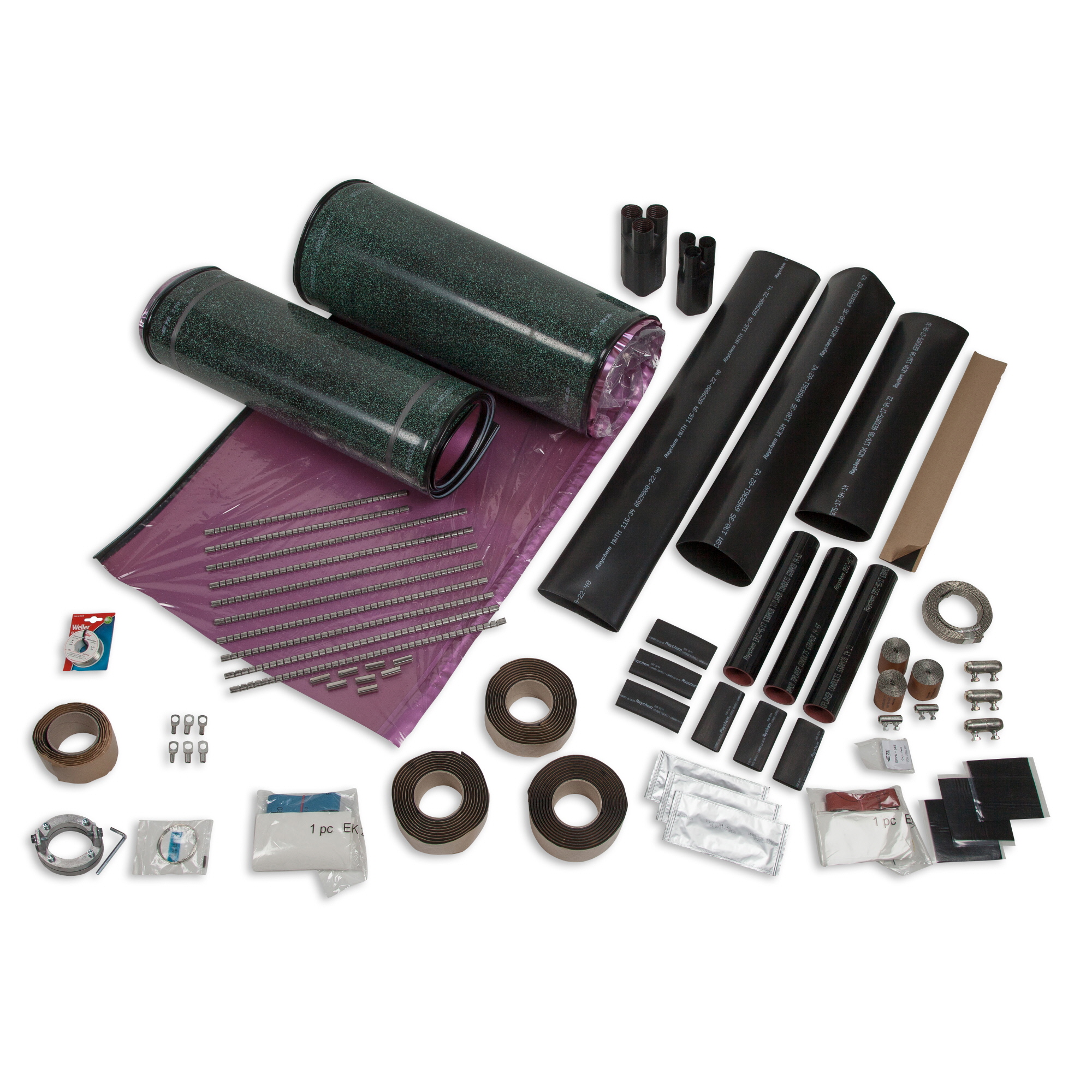

Complete splice for submarine cable without screen, TXRE or type TXRA, against the earthcable type TSLF, or TSLE. Contains all of the components for the handling of fully complies with the reinforcement and mastic filling etc. Complete with mechanical connectors.
| Code | NO1170161 |
| GTIN | 7070918494911 |
| Name | Joint Splice subsea cable TXRE/A aga |
| Dimensions | |
|---|---|
| Weight | 6.42 kg |
| ETIM | |
| ETIM Class | EC001169 |
| Rated voltage U0/U (Um) | 12/20 (24) kV |
| Model | Heat-shrink |
| Insulating material | Plastic |
| For connection of paper- with plastic insulated cables | No |
| Number of conductors | 3 |
| Nominal cross section conductor | 50 ... 95 mm² |
| Mining sector approval | No |
| With concentric shielding | No |
| Suitable for | Other |
| Connection accessories included | Screw connector with shear-off head |
| Halogen free | No |
| Carton | |
|---|---|
| Size | 1 pce |
| Weight | 6.470 kg |
