Mechanical cable lug LA240N17SB2

Mechanical cable lug Ensto LA240N17SB2 - 1

Mechanical cable lug LA240N17SB2

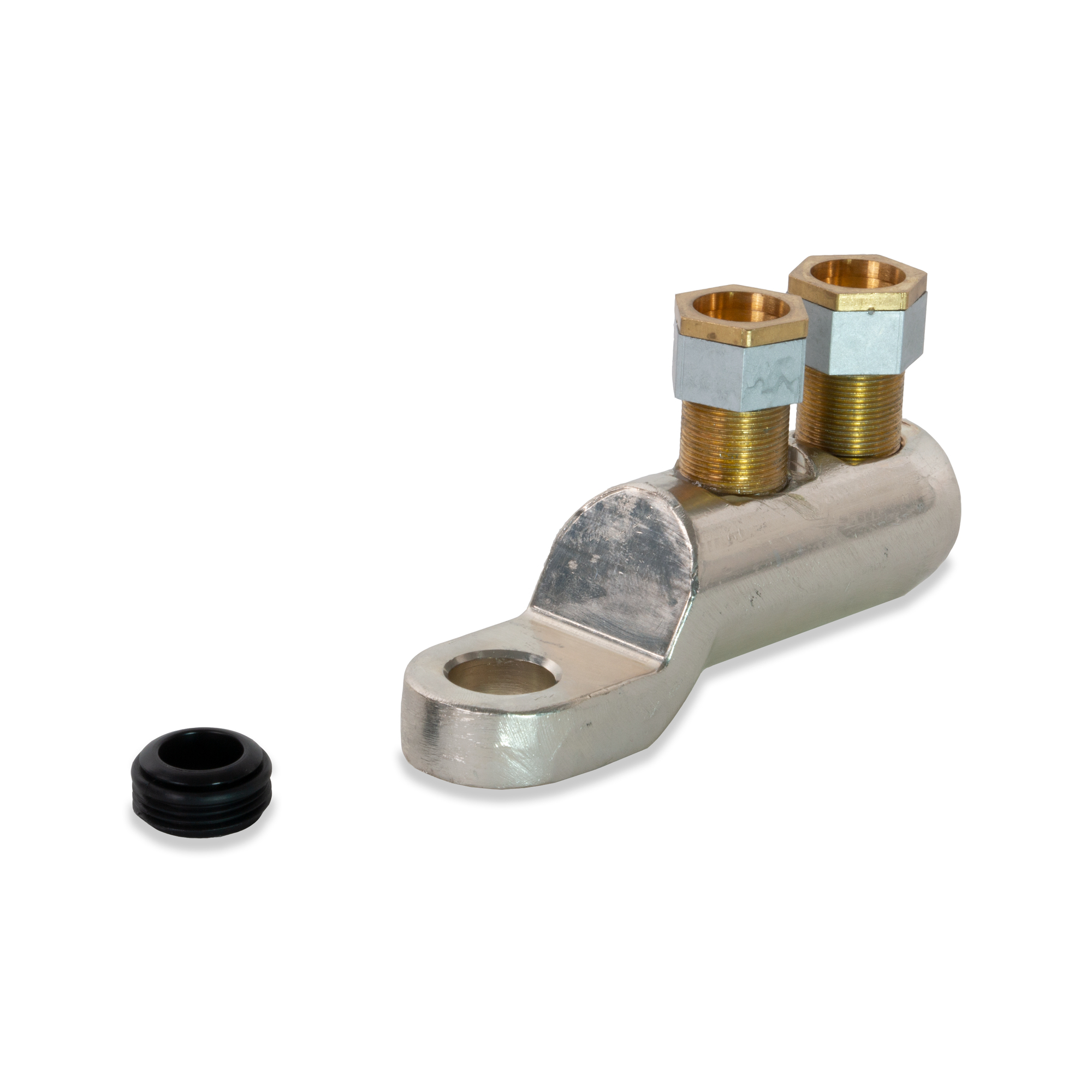

The cable lug is used for terminating conductors of cables up to 42 kV. Because of the shear head bolt construction, no crimping tools are needed. The required torque is achieved by tightening the bolt until it breaks off. The lug is longitudinally watertight. It is suitable for aluminium and copper conductors: solid and stranded, sector shaped and circular.

Fast and easy installation
Screw design with step less shearing
Always correct cut-off point
No need of hammering or grinding the screw after break.

Code	LA240N17SB2
GTIN	6438100358570
Name	Mechanical cable lug Al/Cu 50-240 mm², Ø17 mm

Contact sales

Technical information

Technical specifications

Standards
Standards	IEC 61238-1-3:2018
Technical information
Conductor material	Al/Cu
Cross section stranded circular	50 ... 240 mm²
Cross section solid circular	50 ... 240 mm²
Cross section stranded sector	50 ... 120 mm²
Cross section solid sector	50 ... 150 mm²

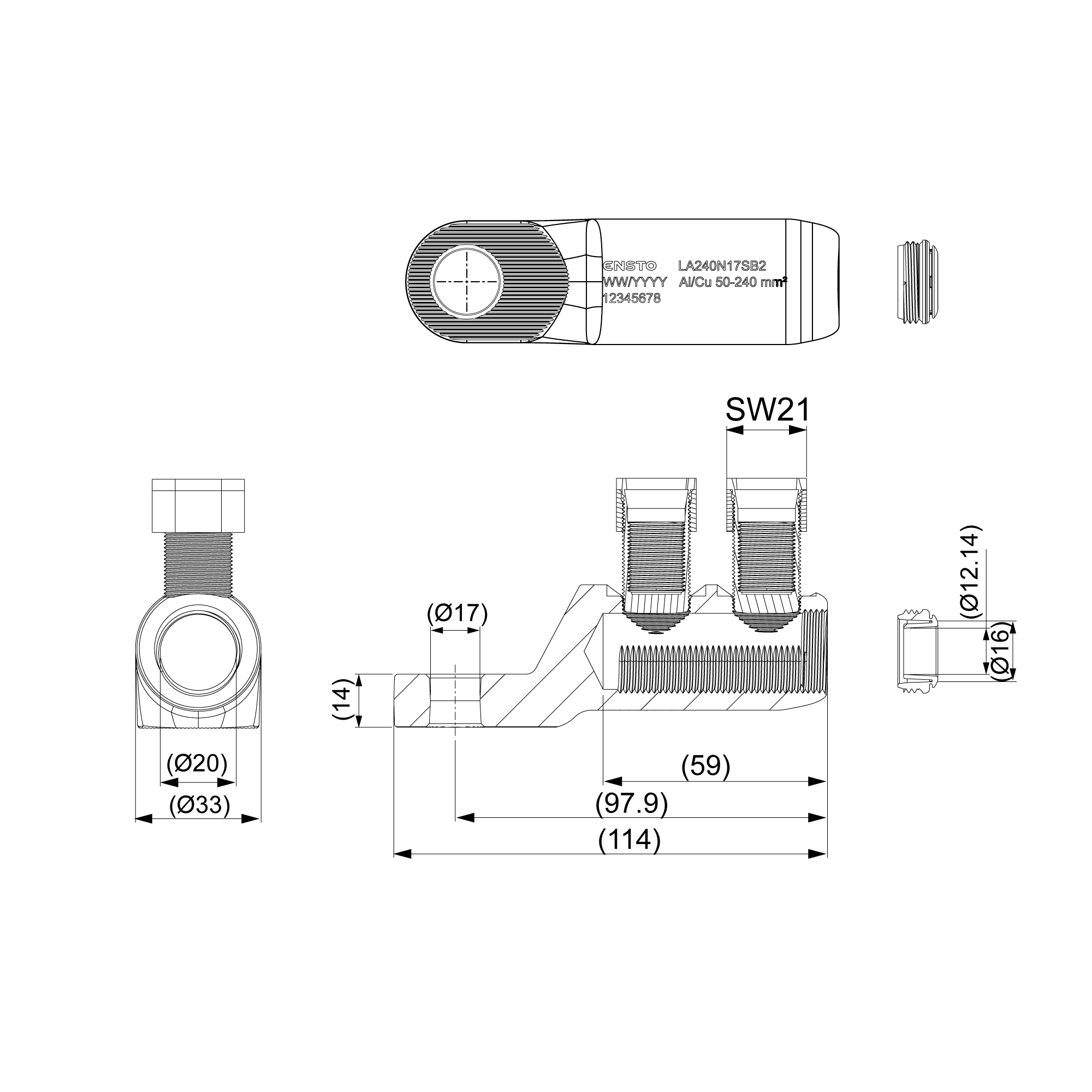

Dimensions
Weight	0.206 kg
Height	63 mm
Width	33 mm
Length	114 mm
Conductor hole diameter	20 mm
Palm hole diameter	17 mm
Quantity of palm holes	1
Mechanical
Tightening torque Nm	32.5 Nm
ETIM
ETIM Class	EC001054
Nominal cross section copper, RM	50 ... 240 mm²
Nominal cross section copper, RE	50 ... 240 mm²
Nominal cross section copper, SM	50 ... 120 mm²
Nominal cross section aluminium, RM	50 ... 240 mm²
Nominal cross section aluminium, RE	50 ... 240 mm²
Nominal cross section aluminium, SM	50 ... 120 mm²
Nominal cross section aluminium, SE	50 ... 150 mm²
Material conductor	Aluminium/copper
Surface protection	Tinned

Packaging

Plastic bag
Size	1 pce
Depth	300 mm
Height	10 mm
Width	152 mm
Weight	0.210 kg
Volume	0.456 l
Carton
Size	24 pcs
Depth	375 mm
Height	157 mm
Width	250 mm
Weight	5.282 kg
Volume	14.71875 l
Pallet package
Size	1080 pcs
Depth	1200 mm
Height	1035 mm
Width	800 mm
Weight	257.690 kg
Volume	993.6 l
