Mechanical cable lug LA150N17SB2

Mechanical cable lug LA150N17SB2

The cable lug is used for terminating conductors of cables up to 42 kV. Because of the shear head bolt construction, no crimping tools are needed. The required torque is achieved by tightening the bolt until it breaks off. The lug is longitudinally watertight. It is suitable for aluminium and copper conductors: solid and stranded, sector shaped and circular.

Fast and easy installation
Screw design with step less shearing
Always correct cut-off point
No need of hammering or grinding the screw after break.

Code	LA150N17SB2
GTIN	6438100363123

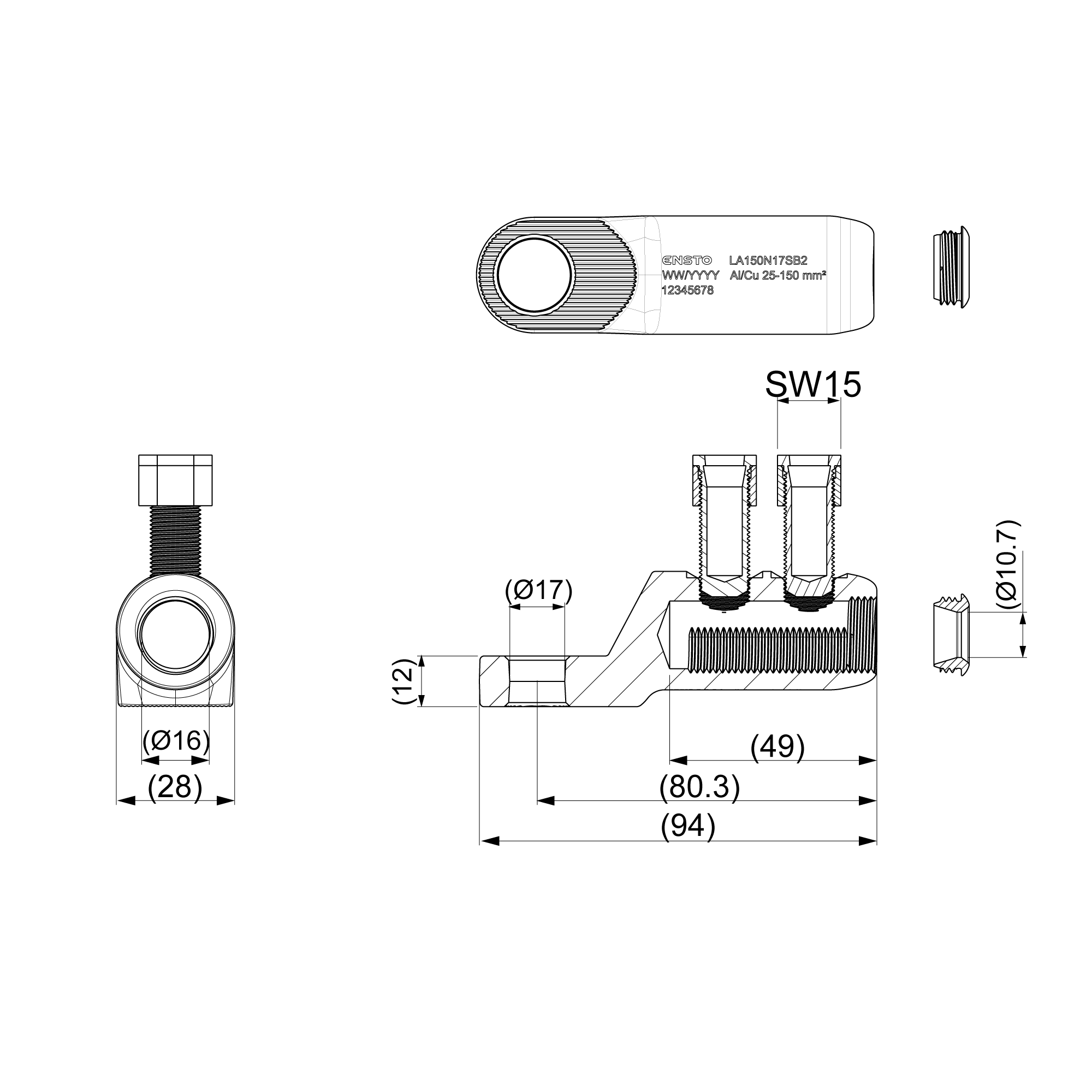

Name	Mechanical cable lug Al/Cu 25-150 mm², Ø17 mm

Contact sales

Technical information

Technical specifications

Standards
Standards	IEC 61238-1-3:2018
Technical information
Conductor material	Al/Cu
Cross section stranded circular	25 ... 150 mm²
Cross section solid circular	25 ... 150 mm²
Cross section stranded sector	25 ... 95 mm²
Cross section solid sector	25 ... 120 mm²
Dimensions
Weight	0.121 kg
Height	55 mm
Width	28 mm
Length	94 mm
Conductor hole diameter	16 mm
Palm hole diameter	17 mm
Palm holes quantity	1
Mechanical
Tightening torque Nm	18.5 Nm
ETIM
ETIM Class	EC001054
Nominal cross section copper, RM	25 ... 150 mm²
Nominal cross section copper, RE	25 ... 150 mm²
Nominal cross section copper, SM	25 ... 95 mm²
Nominal cross section aluminium, RM	25 ... 150 mm²
Nominal cross section aluminium, RE	25 ... 150 mm²
Nominal cross section aluminium, SM	25 ... 95 mm²
Nominal cross section aluminium, SE	25 ... 120 mm²
Material conductor	Aluminium/copper
Surface protection	Tinned

Packaging

Plastic bag
Size	1 pce
Depth	300 mm
Height	10 mm
Width	152 mm
Weight	0.125 kg
Volume	0.456 l
Carton
Size	24 pcs
Depth	375 mm
Height	157 mm
Width	250 mm
Weight	3.242 kg
Volume	14.71875 l
Pallet package
Size	1080 pcs
Depth	1200 mm
Height	1035 mm
Width	800 mm
Weight	165.890 kg
Volume	993.6 l
