Heat shrink joint SJKVR5

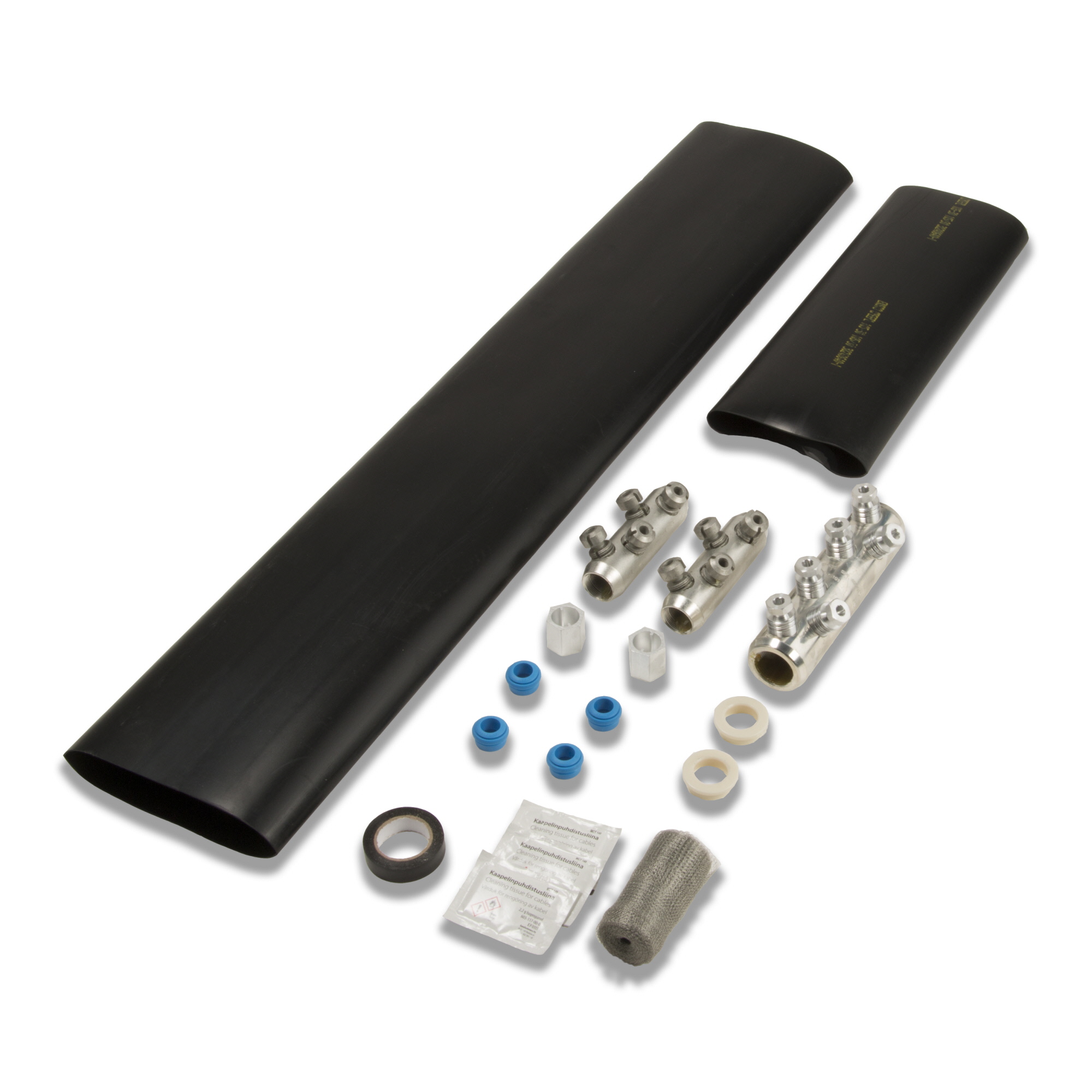

The joint kit is used for jointing 1,5 kV cables with plastic insulation and plastic outer sheath. The kit is suitable for 1 to 1 core.The kit includes three shear head bolt connector suitable both for aluminium and copper conductors, grinding and cleaning materials, one heat shrink tube for insulation and one for outer protection.
| Code | SJKVR5 |
| GTIN | 6418677458217 |
| Name | Heat shrink joint 1,5 kV 1x/1x500 mm² single core with with concentric conductor with connector |
| Electrical values | |
|---|---|
| Conductor size | Al/Cu 500 |
| Dimensions | |
| Weight | 2.96 kg |
| ETIM | |
| ETIM Class | EC001169 |
| Rated voltage U0/U (Um) | 0.6/1 (1.2) kV |
| Model | Heat-shrink |
| Insulating material | Plastic |
| For connection of paper- with plastic insulated cables | No |
| Number of conductors | 1 |
| Nominal cross section conductor | ≥ 500 mm² |
| Connection accessories included | Screw connector with shear-off head |
| Halogen free | Yes |
| Carton | |
|---|---|
| Size | 1 pce |
| Depth | 1200 mm |
| Height | 190 mm |
| Width | 190 mm |
| Weight | 3.460 kg |
| Volume | 43.32 l |
| Pallet package | |
| Size | 20 pce |
| Depth | 1200 mm |
| Height | 1100 mm |
| Width | 800 mm |
| Weight | 89.200 kg |
| Volume | 1056 l |
