Heat shrink joint SJKDS1C

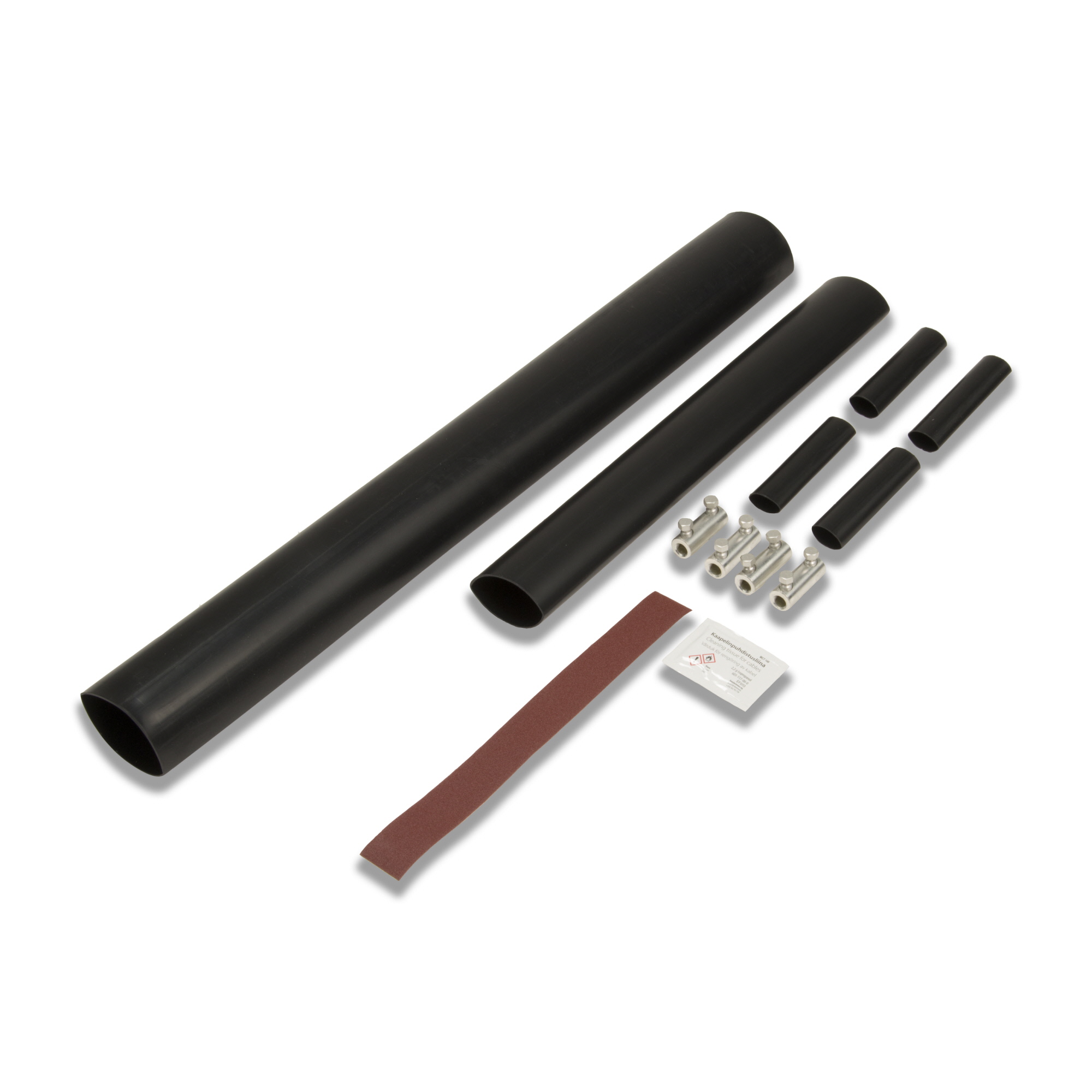

The joint kit is used for jointing 1 kV cables with plastic insulation and double plastic outer sheath. The kit is suitable for 4 to 4 core cables. The kit includes four shear head bolt connectors suitable both for aluminium and copper conductors, grinding and cleaning materials, four heat shrink tubes for insulation and two for outer protection.
| Code | SJKDS1C |
| GTIN | 6438100330675 |
| Name | Heat shrink joint 0,6/1 (1,2) kV 4x-4x16-50 mm² TFXP four core with connector |
| Connectors | 4 x SLJ1.27 |
| Weight | 1 kg |
| Conductor size | Al/Cu 16-50 |
| ETIM | |
| ETIM Class | EC001169 |
| Rated voltage U0/U (Um) | 0.6/1 (1.2) kV |
| Model | Heat-shrink |
| Insulating material | Plastic |
| For connection of paper- with plastic insulated cables | No |
| Number of conductors | 4 |
| Nominal cross section conductor | 16 ... 50 mm² |
| Connection accessories included | Screw connector with shear-off head |
| Halogen free | Yes |
| Plastic bag | |
|---|---|
| Size | 1 pce |
| Depth | 300 mm |
| Height | 300 mm |
| Width | 10 mm |
| Weight | 1.100 kg |
| Volume | 0.9 l |
| Carton | |
| Size | 25 pcs |
| Depth | 1000 mm |
| Height | 110 mm |
| Width | 120 mm |
| Weight | 28.000 kg |
| Volume | 13.2 l |
