Heat shrink joint SJKDS0C

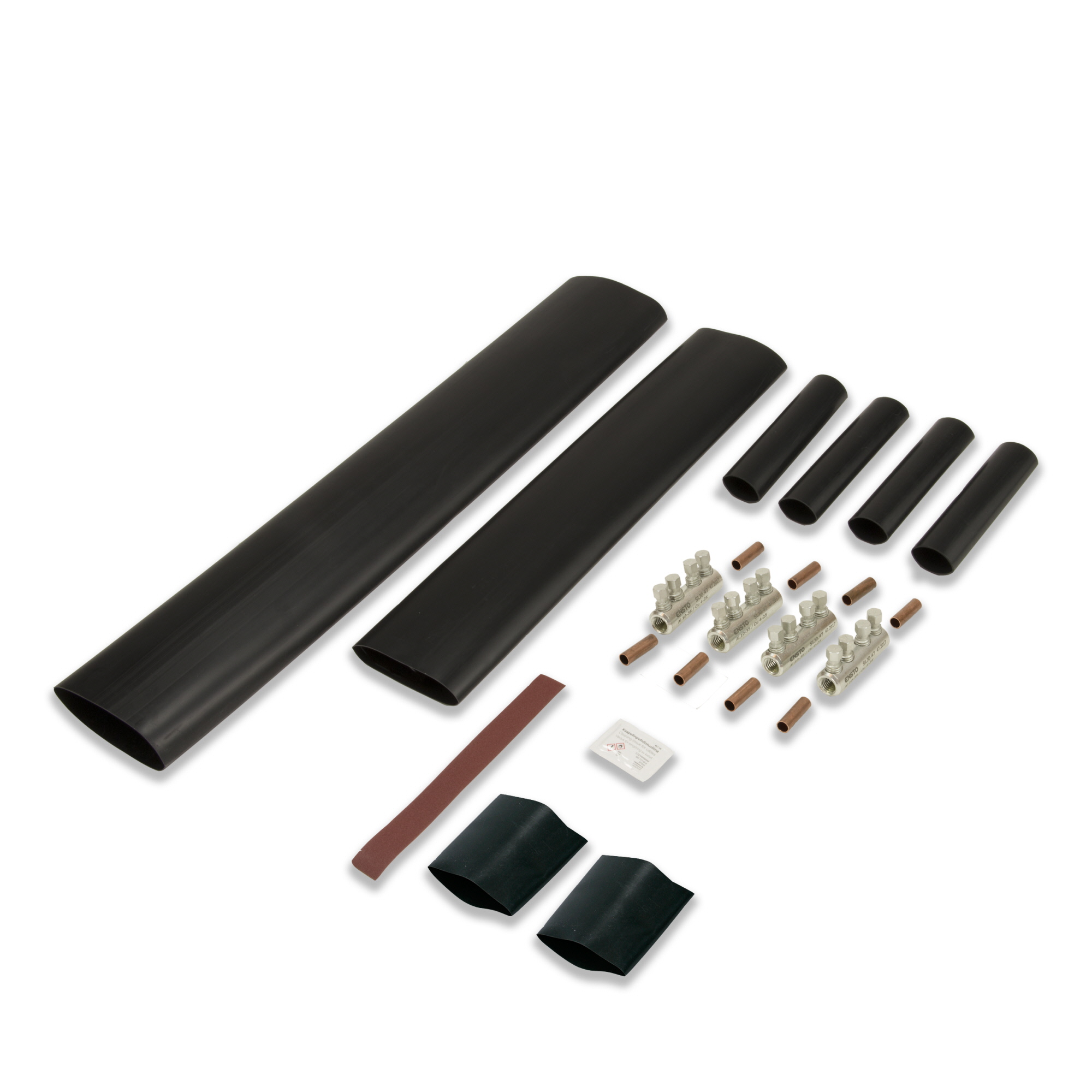

The joint kit is used for jointing 1 kV cables with plastic insulation and double plastic outer sheath. The kit is suitable for 4 to 4 core cables. The kit includes four shear head bolt connectors suitable both for aluminium and copper conductors, grinding and cleaning materials, four heat shrink tubes for insulation and two for outer protection.
| Code | SJKDS0C |
| GTIN | 6438100334260 |
| Name | Heat shrink joint 0,6/1 (1,2) kV 4x-4x6-25 mm² TFXP four core with connector |
| Connectors | 4 x SLJ0.47 |
| Weight | 0.3 kg |
| Conductor size | Al/Cu 16-50 |
| ETIM | |
| ETIM Class | EC001169 |
| Rated voltage U0/U (Um) | 0.6/1 (1.2) kV |
| Model | Heat-shrink |
| Insulating material | Plastic |
| For connection of paper- with plastic insulated cables | No |
| Number of conductors | 4 |
| Nominal cross section conductor | 6 ... 25 mm² |
| Connection accessories included | Screw connector with shear-off head |
| Halogen free | Yes |
| Plastic bag | |
|---|---|
| Size | 1 pce |
| Depth | 200 mm |
| Height | 200 mm |
| Width | 10 mm |
| Weight | 0.400 kg |
| Volume | 0.4 l |
| Pallet package | |
| Size | 50 pcs |
| Depth | 1180 mm |
| Height | 900 mm |
| Width | 780 mm |
| Weight | 40.000 kg |
| Volume | 828.36 l |
