Tension clamp SO284S

Tension clamp SO284S

Tension clamp with a flexible wire rope bail for the termination of 4 core overhead cables. The tension clamp is equipped with the shear head nuts. Help in building a distribution network with a life cycle of 40-50 years. Easy-to-install design to make the installer’s work easier and faster.

  • Help in building a distribution network with a life cycle of 40-50 years.
  • Type tested and hence, always reliable.
  • Easy-to-install design to make the installer’s work easier and faster.
Code SO284S
GTIN 6438389106121
Name Tension clamp
4x(25-50) mm², shear head
Contact sales

Technical information

Technical specifications

Certificates
Standards EN 50483-2:2009

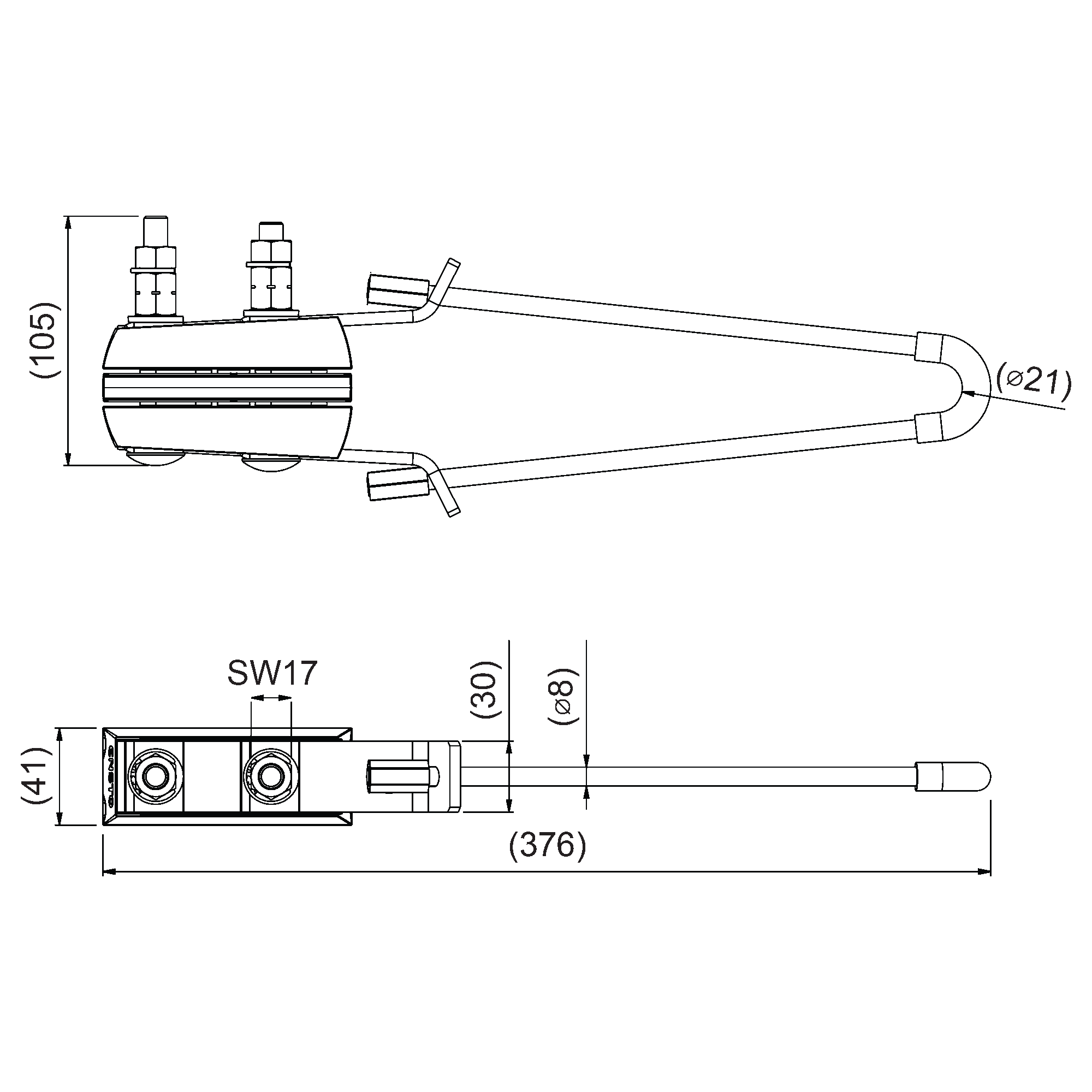

Dimensions
Weight 0.94 kg
Height 105 mm
Width 41 mm
Length 376 mm
Conductor size 3-4 x 25-50 mm²
Conductor diameter 7 ... 10.2 mm
Electrical values
Test voltage 4 kV / 50 Hz / 1 min
Mechanical
SMFL 25 kN
Tightening torque Nm 47 Nm
ETIM
ETIM Class EC003516
Type of accessory/spare part Other

Packaging

Carton
Size 10 pcs
Depth 375 mm
Height 157 mm
Width 250 mm
Weight 9.642 kg
Volume 14.71875 l
