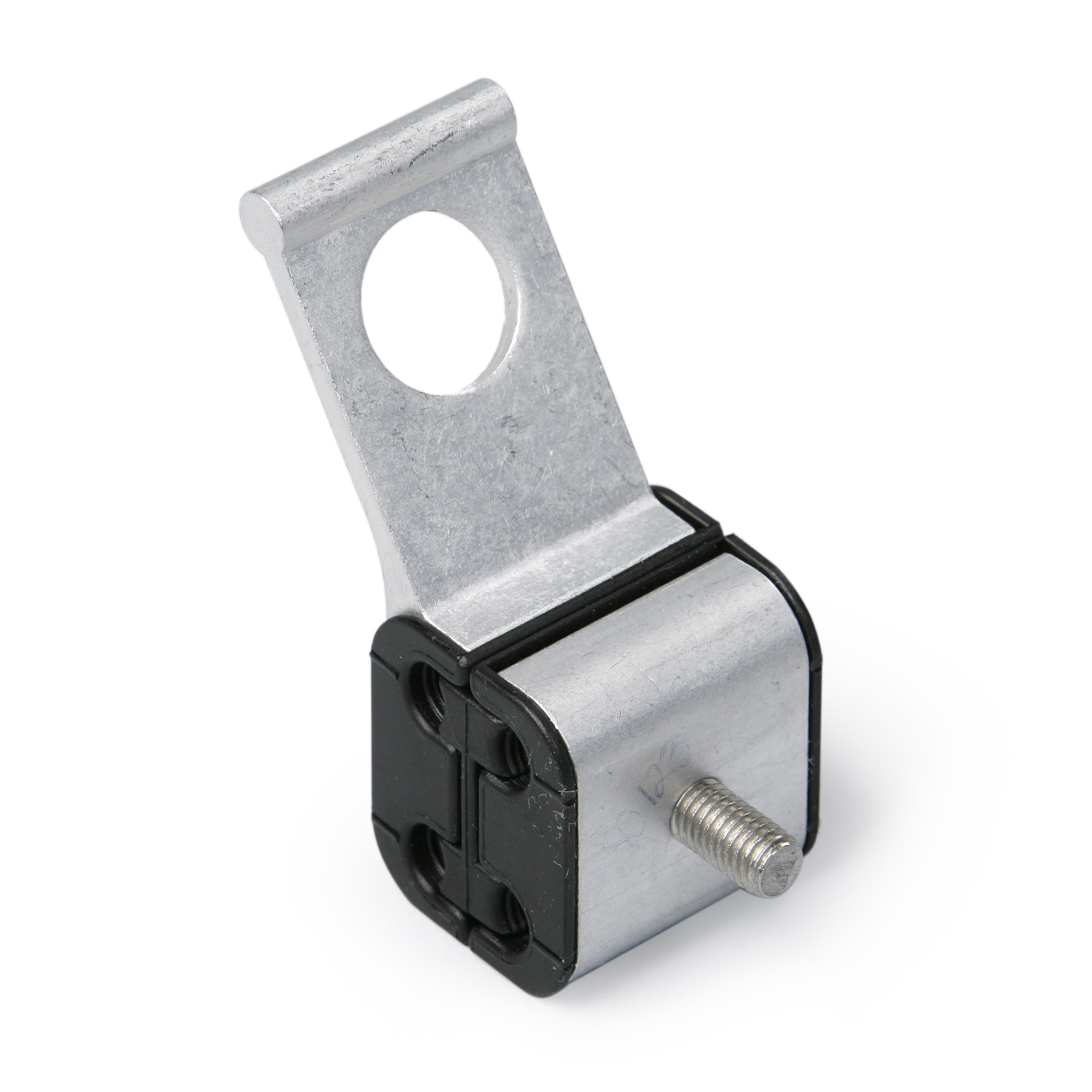

Suspension clamp SO123

For the installation and suspension of the 2-4 LV ABC cables (consumer drop wires or street lighting) in poles with standard hook attachment. For straight lines and angles up to 30°.

  • Help in building a distribution network with a life cycle of 40-50 years.
  • Type tested and hence, always reliable.
  • Easy-to-install design to make the installer’s work easier and faster.
Code SO123
GTIN 6418677404221
Name Suspension clamp
For LV ABC 2-4x(6-25) mm²
Contact sales

Technical information

Technical specifications

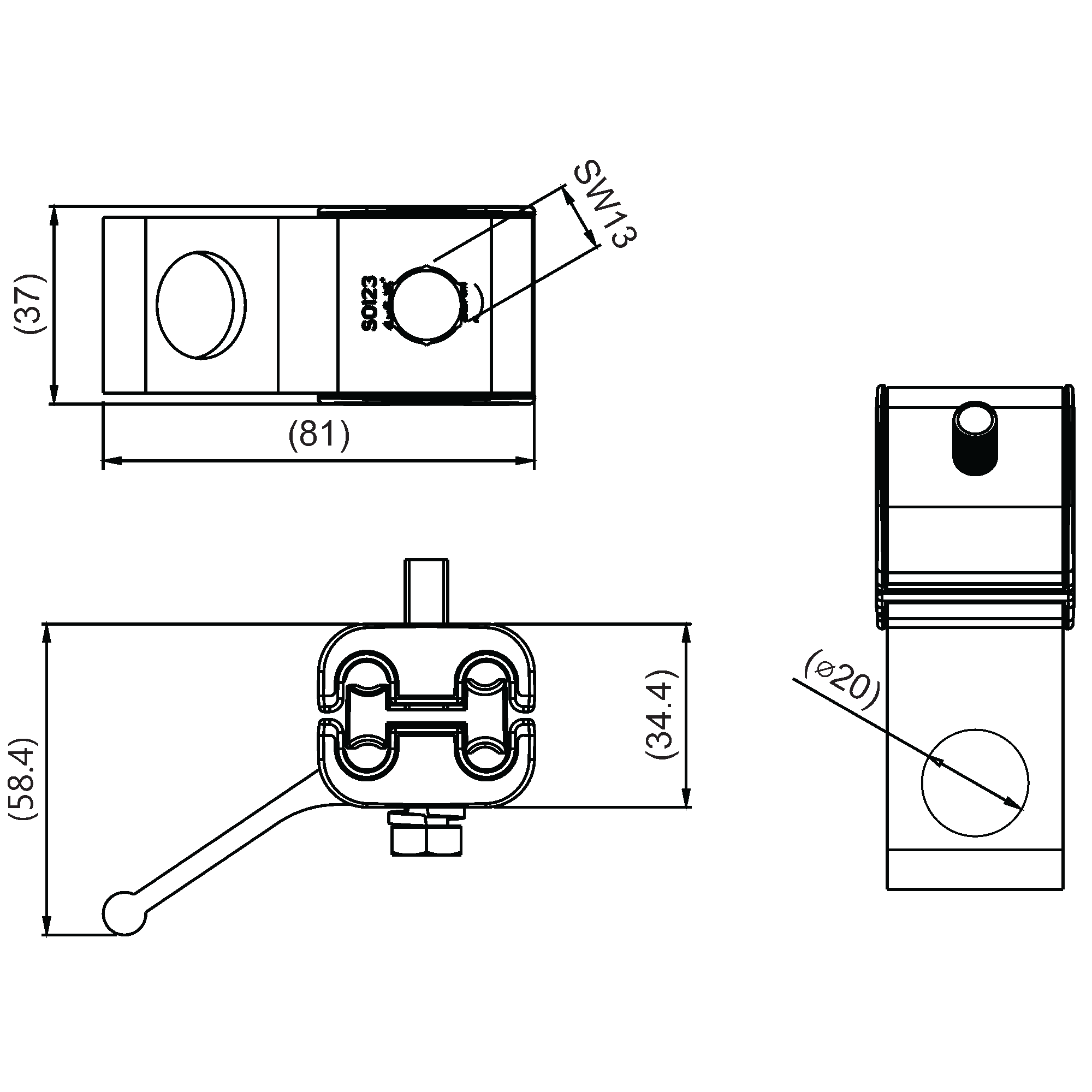

Dimensions
Weight 0.118 kg
Mechanical
Tightening torque Nm 22 Nm
Features
For conductor size 2-4x(6-16) mm² 30º

Packaging
Carton
Size 50 pce
Depth 375 mm
Height 157 mm
Width 250 mm
Weight 9.650 kg
Volume 14.71875 l
Pallet package
Size 3500 pce
Depth 1200 mm
Width 800 mm
Weight 695.500 kg

Downloads
