Pre-insulated compress joint SJ9.16
SJ9.16 is a compression joint to connect LV insulated overhead phase conductors. Tested according self supporting system. Test voltage 6 kV / 50 Hz / 1 min in water.
| Code | SJ9.16 |
| GTIN | 6438100318512 |
| Name | Pre-insulated compress joint 16 mm², Blue |

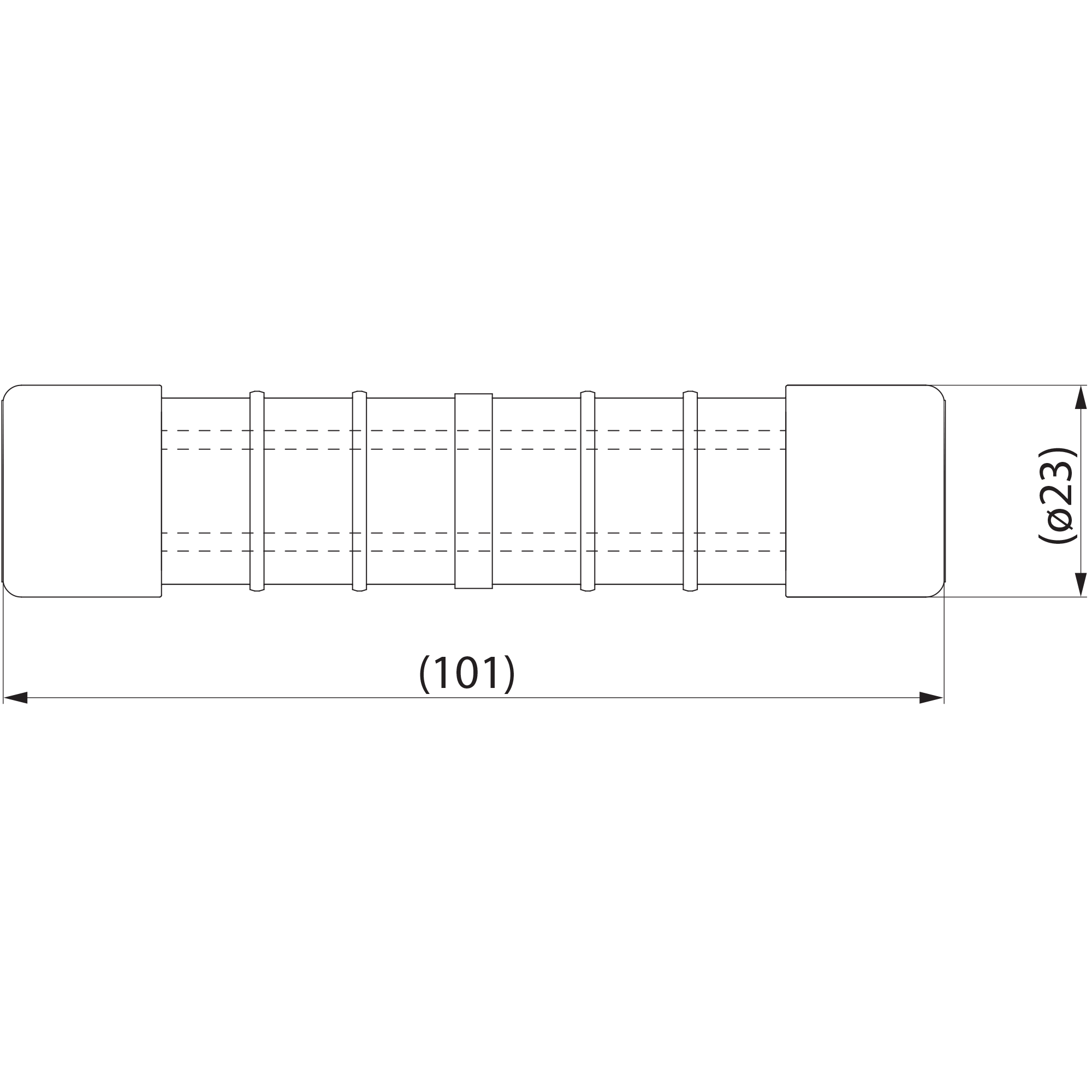

| Dimensions | |
|---|---|
| Weight | 0.06 kg |
| Conductor size | 16 mm² |
| Certificates | |
| Standards | EN 50483-4:2009 |
| Electrical values | |
| Highest system voltage | 1 kV |
| Test voltage in water | 6 kV / 50 Hz / 1 min |
| Features | |
| Crimping tool die | E173 |
| ETIM | |
| ETIM Class | EC001169 |
| Insulating material | Plastic |
| Number of conductors | 1 |
| Nominal cross section conductor | ≥ 16 mm² |
| Plastic bag | |
|---|---|
| Size | 10 pcs |
| Depth | 170 mm |
| Height | 0.05 mm |
| Width | 130 mm |
| Weight | 0.610 kg |
| Volume | 0.001105 l |
| Carton | |
| Size | 100 pce |
| Depth | 225 mm |
| Height | 180 mm |
| Width | 220 mm |
| Weight | 6.400 kg |
| Volume | 8.91 l |
| Pallet package | |
| Size | 7000 pce |
| Depth | 1200 mm |
| Height | 870 mm |
| Width | 800 mm |
| Weight | 468.000 kg |
| Volume | 835.2 l |
25 mm², Orange
Code: SJ9.25
GTIN: 6438100318529
35 mm², Red
Code: SJ9.35
GTIN: 6438100318536
50 mm², Yellow
Code: SJ9.50
GTIN: 6438100318543
70 mm², White
Code: SJ9.700
GTIN: 6438100332167
