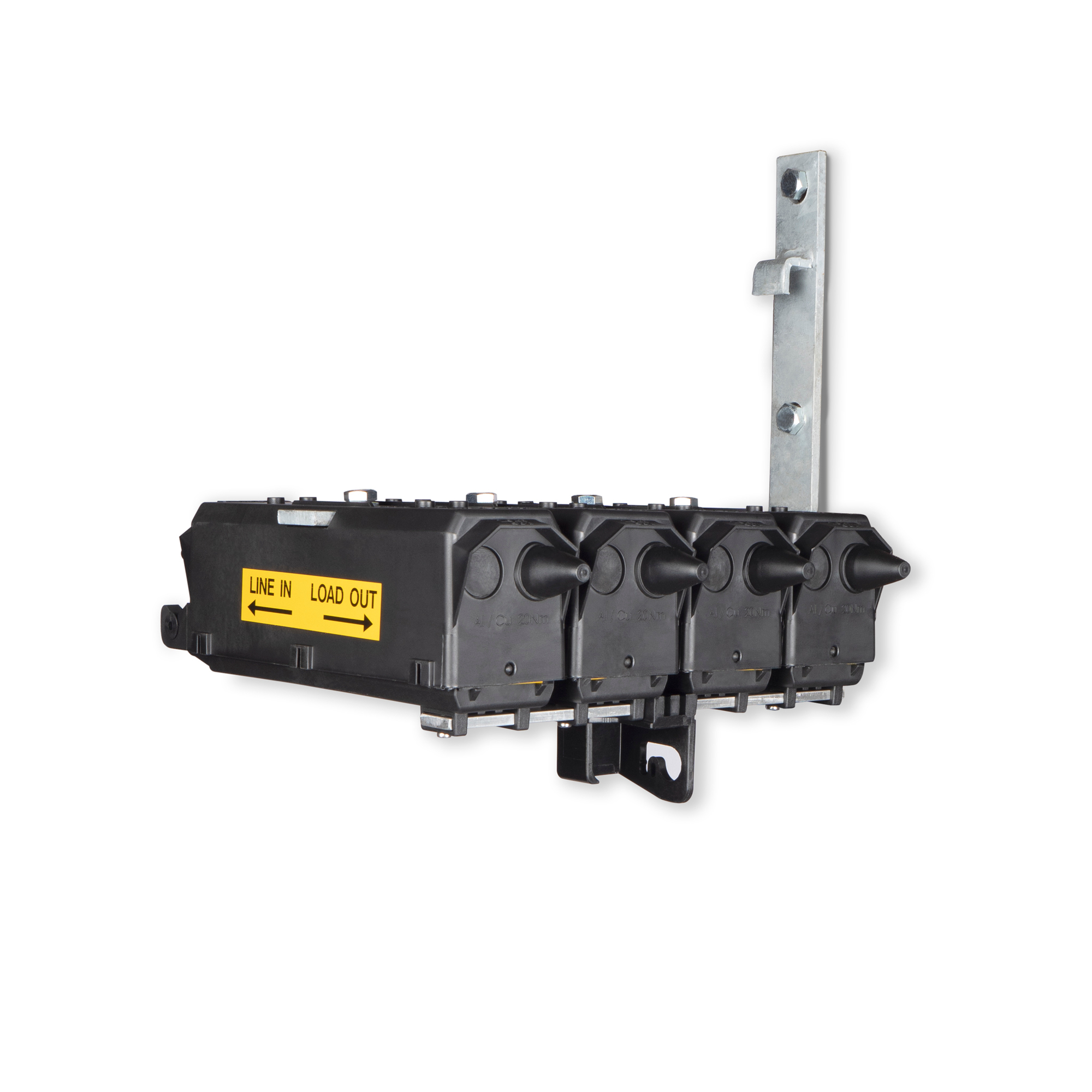

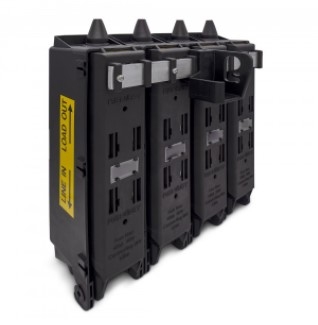

Pole fuse switch disconnector RY150450
For protecting stranded overhead cables and underground cables in LV-networks. Fuse-switch can be operated from the ground level by using operating rods. The fourth pole is a fixed solid neutral connection. It is opened and closed together with the other phase-poles. Connectors included 8 x V-type 4835 N240 terminal clamps.
| Code | RY150450 |
| GTIN | |
| Name | Pole fuse switch disconnector 400 A, Al/Cu 1x(50-240) mm², poles 4 |
| Dimensions | |
|---|---|
| Weight | 5 kg |
| Features | |
| Conductor size | 70 mm² - 240 mm² |
| Degree of protection | IP24 |
| Standards | DIN NH 2 IEC 60947 |
| Output number | 1 |
| Rated current | 400 A |
| 12 kV | |
| Rated short-circuit breaking capacity | 1.2 kA |
| Rated short-circuit making current | 1.2 kA |
| Rated short-time withstand current (1s) | 12 kA/s |
| Rated Voltage (Ur) | 0.5 kV |
| ETIM | |
| ETIM Class | EC001040 |
| Max. rated operation voltage Ue AC | 500 V |
| Rated permanent current Iu | 400 A |
| Rated short-time withstand current lcw | 12 kA |
| Number of poles | 4 |
| Degree of protection (IP), front side | IP24 |
| Carton | |
|---|---|
| Size | 1 pce |
| Weight | 5.050 kg |
