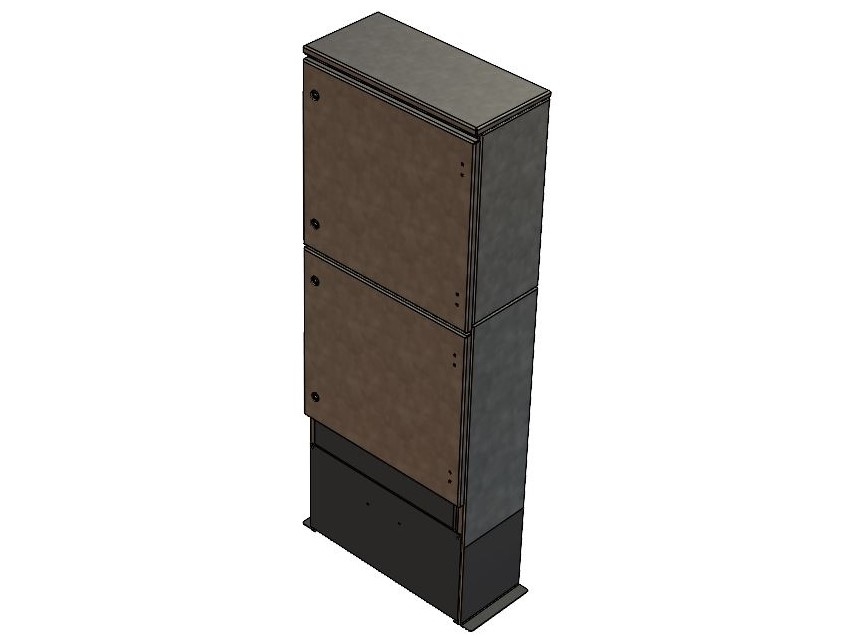

Cabinet RY150661B

Cabinet RY150661B

The metering enclosure is required to house instrument transformers for revenue metering of MV (10kV and 20kV) connected customers, for installation in ESBN substations. There are two different configurations of this enclosure; these shall now be referred to as ‘Housing 1’ and ‘Housing 2’. Housing 1 is an enclosure that has single core on the transformers secondary winding where as Housing 2 has dual core on the transformers secondary winding.

  • Robust structure
  • 40 year lifetime expectancy
Code RY150661B
GTIN 5391540620328
Name Cabinet
Public Lighting Pillar (PLINP) configuration B
Contact sales

Technical information

Technical specifications

Dimensions
Weight 123 kg
Height 1857 mm
Width 682 mm
Length 325 mm
ETIM
ETIM Class EC001040
Degree of protection (IP), front side IP44
