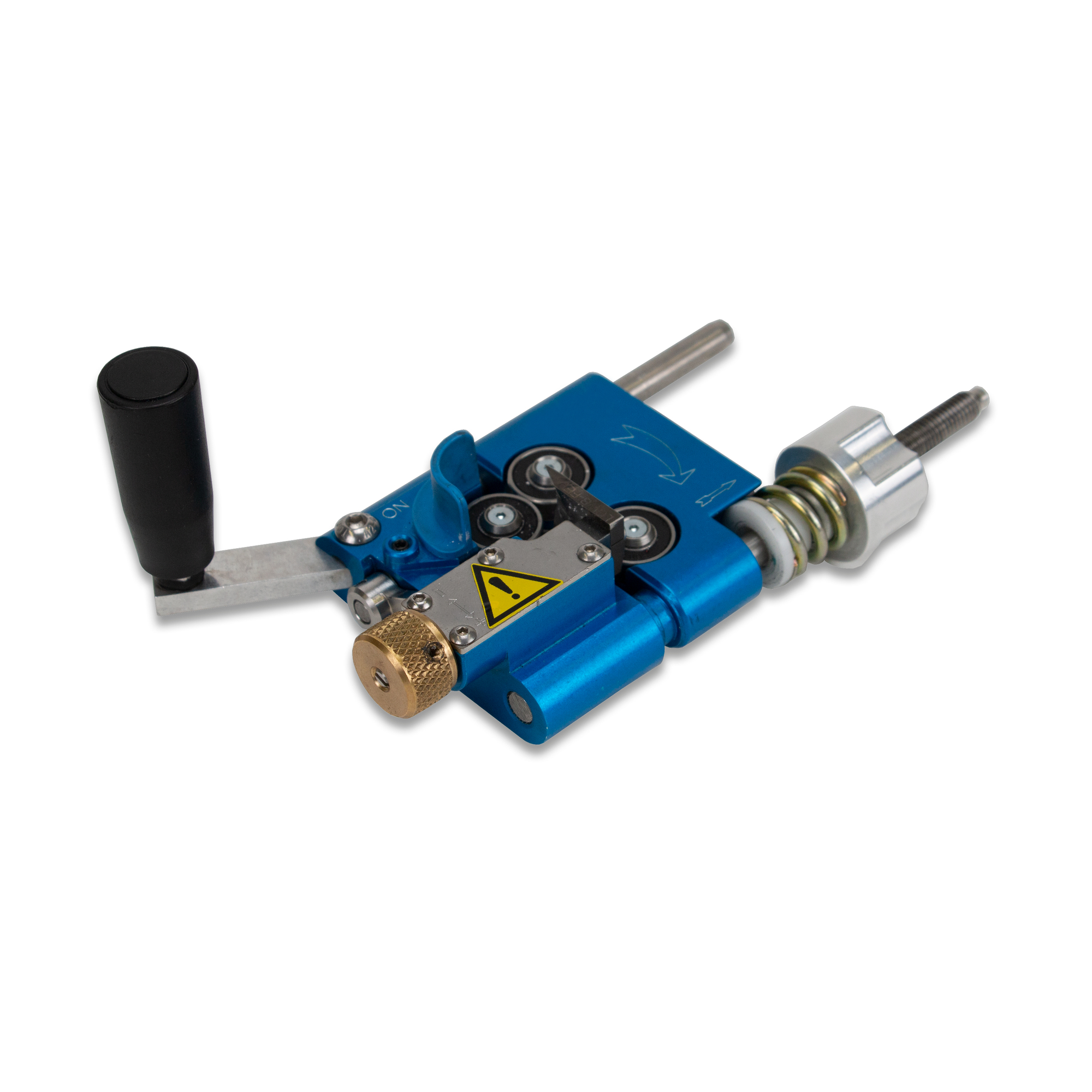

Insulation removal tool ST307
ST307 insulation removal tool is used to peel the bonded insulation screen of medium voltage cables. The tool is suitable core diameters between 12 - 44 mm and the peeling depth can be adjusted from 0.4 to 1.8 mm by 0.1 mm steps. The tool leaves a very even surface and is equipped with ball bearings to provide an easy turning, so no greasing of the core is needed. The tool is equipped with a stopping feature.
| Code | ST307 |
| GTIN | 6438389105551 |
| Name | Insulation removal tool Ø12-44 mm |
| Dimensions | |
|---|---|
| Weight | 0.525 kg |
| Height | 74 mm |
| Width | 103 mm |
| Length | 185 mm |
| ETIM | |
| ETIM Class | EC000163 |
| Depth of notch adjustable | Yes |
| Longitudinal section | No |
| Round edge | Yes |
| Spiral cut | Yes |
| Exchangeable knives | Yes |
| Carton | |
|---|---|
| Size | 1 pce |
| Weight | 0.575 kg |
