| Code | NO1170137 |
| GTIN | |
| Name | Branching box 1170137 |
-
What are you looking for?
-

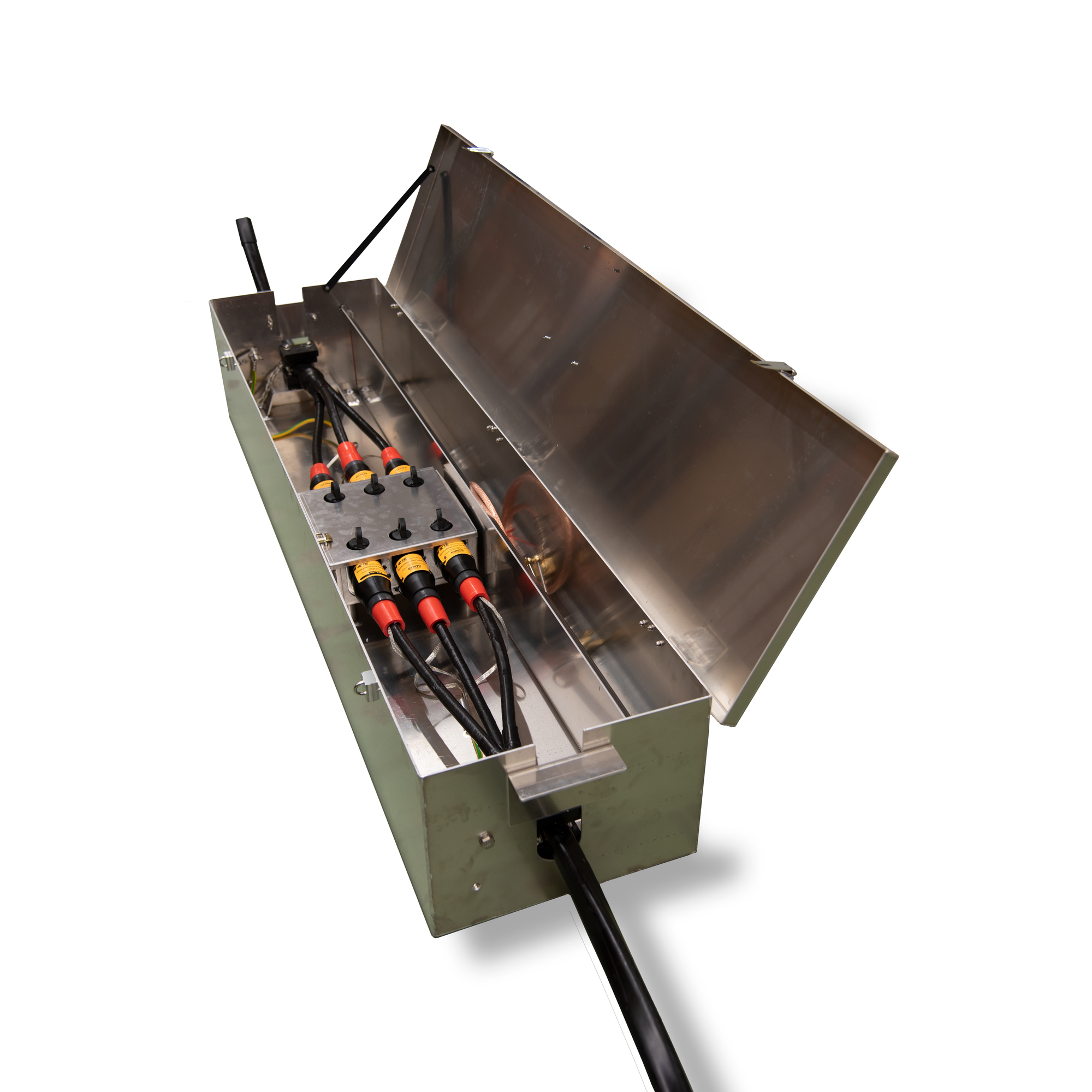

Branching box NO1170137
Technical information
Technical specifications
Technical specifications
| Dimensions | |
|---|---|
| Weight | 61.72 lb |
| Height | 11.96 in |
| Width | 17.24 in |
| Length | 71.25 in |
| Electrical values | |
| Highest system voltage | 24 kV |
| Number of cores | 3 |
| Nominal current A | 250 A |
| Voltage | 24000 V |
| ETIM | |
| ETIM Class | EC003517 |
| Nominal voltage | 24000 V |
| Nominal current | 250 A |
| Material | Aluminium |
| Surface protection | Untreated |
| Degree of protection (IP) cabinet | IP00 |
| Colour | Grey |
| Width | 71.25 in |
| Height | 11.96 in |
| Depth | 17.24 in |
| Mounting | Floor |
| Number of poles | 3 |
| Nominal cross section conductor branch cable | 0 ... 0 mm² |
| Nominal cross section conductor main cable | 95 ... 95 mm² |
| Equipped with busbar | No |
| Equipped with connectors | No |
| With earthing | Yes |
| With stand (base) | No |
| With floor plate | No |
| With mounting plate | No |
Packaging
Packaging
| Carton | |
|---|---|
| Size | 1 pcs |
| Weight | 61.83 lb |
