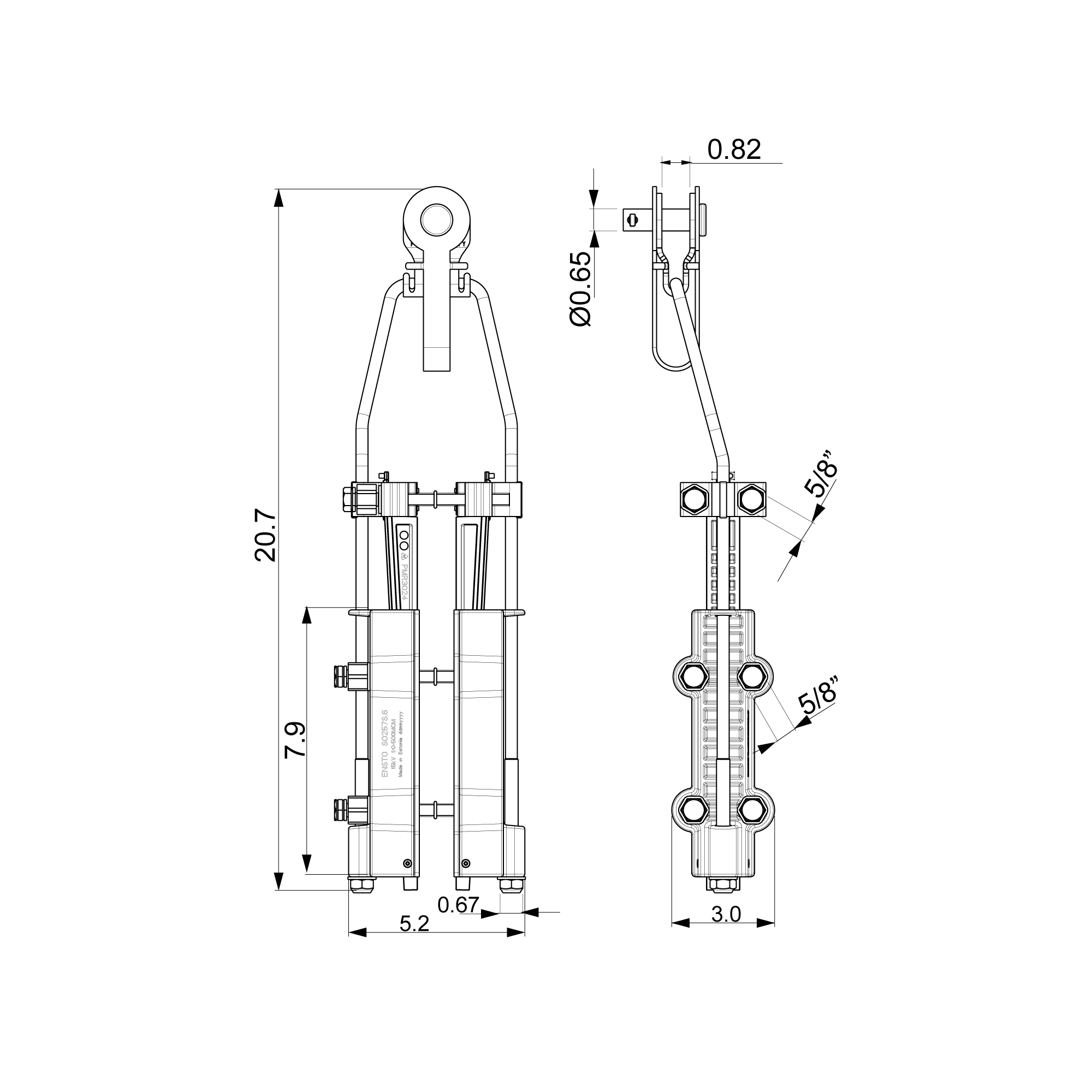

Dead-end clamp SO257S.6
Dead-end clamp for 15 kV rated covered AAAC conductor with covering thickness of .165 inches and overall diameter range of .72 - 1.15 inches.
| Code | SO257S.6 |
| GTIN | 6438100354718 |
| Name | Dead-end clamp 15 kV, 1/0 - 500 AWG |
| Certificates | |
|---|---|
| Standards | EN 50397-2 |
| Dimensions | |
| Weight | 5.73 lb |
| Features | |
| For conductor size | MV CC 120-241 mm² |
| Mechanical | |
| SMDL | 36.6 kN |
| SMFL | 36.6 kN |
| ETIM | |
| ETIM Class | EC003516 |
| Type of accessory/spare part | Other |
| Carton | |
|---|---|
| Size | 3 pcs |
| Depth | 23.97 in |
| Height | 9.25 in |
| Width | 10.66 in |
| Weight | 18.47 lb |
| Volume | 10.24 gal |
| Pallet package | |
| Size | 36 pcs |
| Depth | 47.24 in |
| Height | 42.91 in |
| Width | 31.49 in |
| Weight | 265.73 lb |
| Volume | 276.42 gal |
15 kV, 1/0 - 500 AWG
Code: SO183S.6
GTIN: 6438100354800
15 kV, 336 AWG, neck Ø 2.87-3.34 in.
Code: SO216.2416
GTIN: 6438100382872
15 kV, 1/0 AWG, neck Ø 2.87-3.34 in.
Code: SO216.996
GTIN: 6438100356682

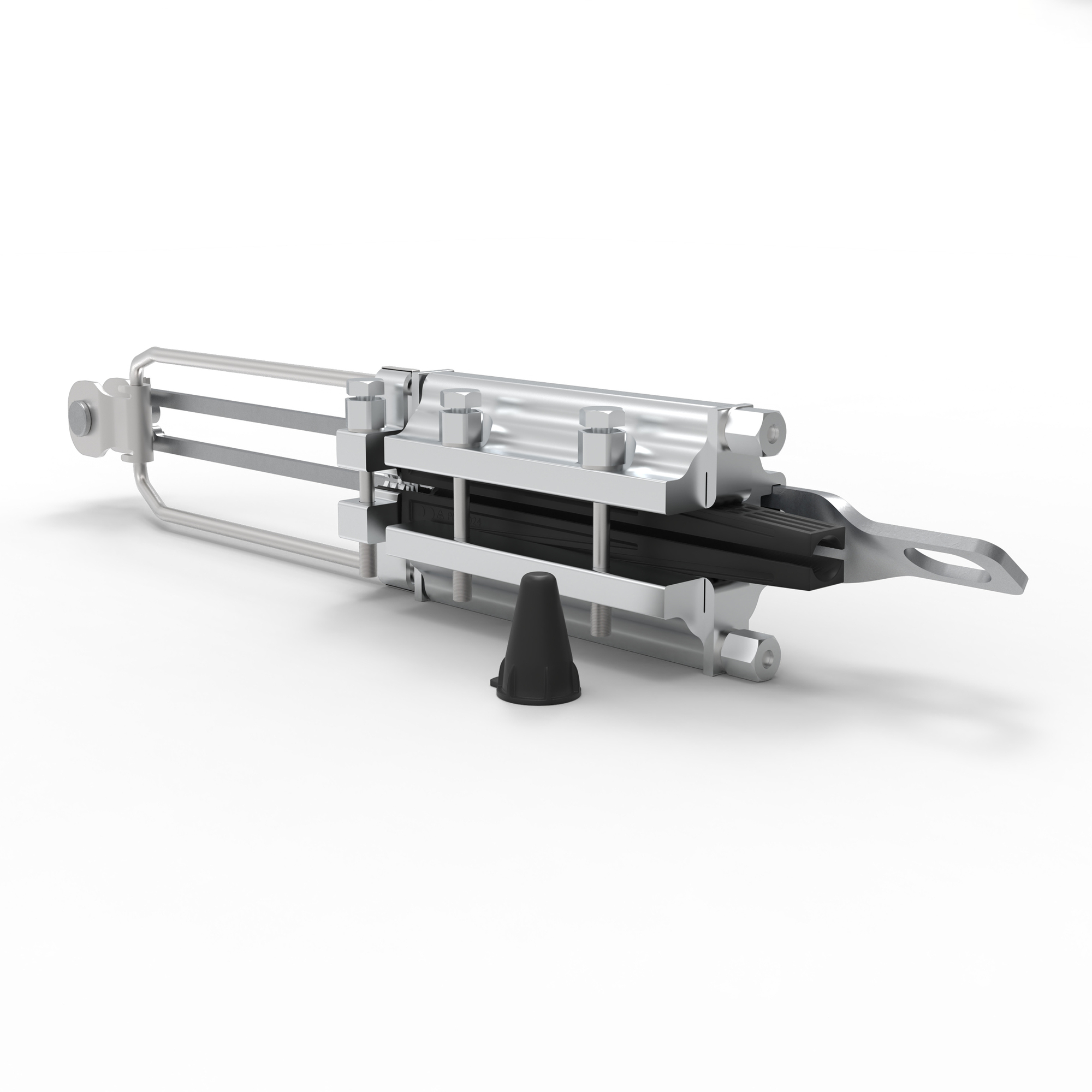

15 kV, 1/0 - 500 AWG
