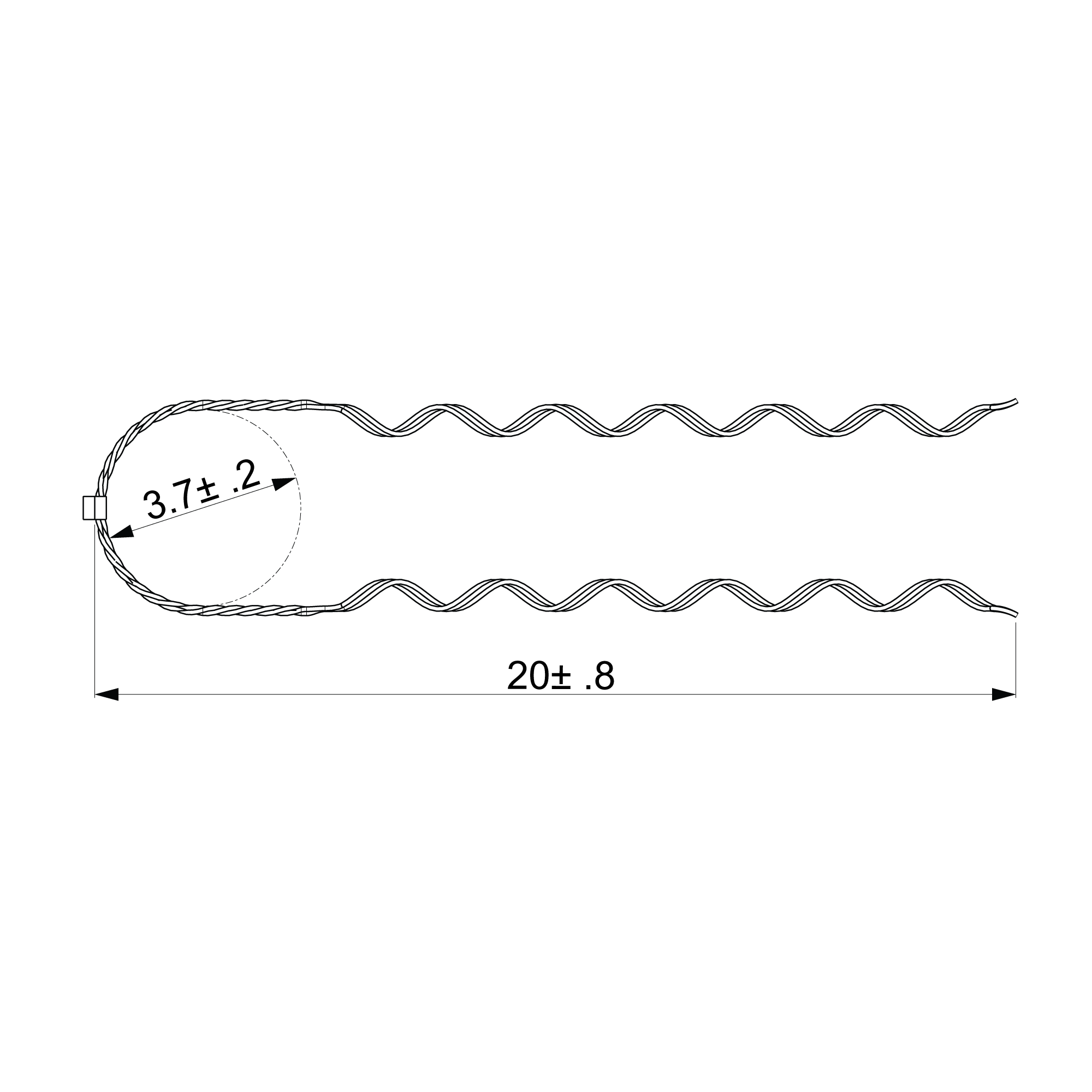

Helical tie SO216.996
Used with covered conductors rated for 15 kV for tying the conductors to the insulators. Can be used as both top and side ties. Easy installation without tools. The tie is installed on the insulation of the covered conductor. A set include 6 pcs of ties. Right size is easy to recognize by the colour code.
| Code | SO216.996 |
| GTIN | 6438100356682 |
| Name | Helical tie 15 kV, 1/0 AWG, neck Ø 2.87-3.34 in. |
| Colors | |
|---|---|
| Color | - |
| Color identifier | Red |
| Dimensions | |
| Weight | 1.51 lb |
| Insulator neck | 73…85 mm |
| Covered conductors | 70 ... 120 mm² |
| ETIM | |
| ETIM Class | EC003516 |
| Type of accessory/spare part | Other |
| Carton | |
|---|---|
| Size | 1 pcs |
| Depth | 23.85 in |
| Height | 11.1 in |
| Width | 14.76 in |
| Weight | 2.86 lb |
| Volume | 16.92 gal |
| Pallet package | |
| Size | 300 pcs |
| Depth | 49.01 in |
| Height | 42.12 in |
| Width | 31.49 in |
| Weight | 903.89 lb |
| Volume | 281.53 gal |
