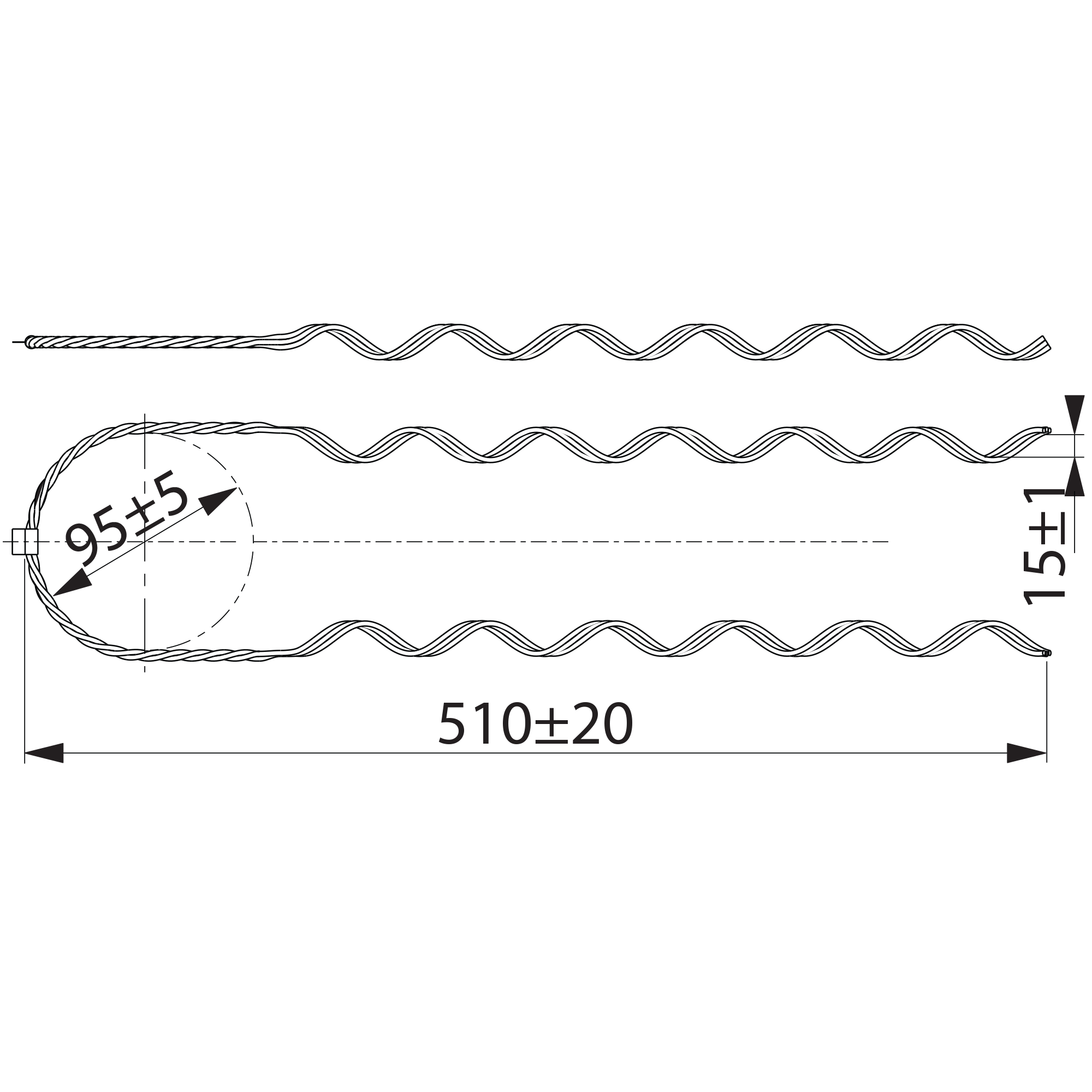

Helical tie SO216.99
Used with covered conductors for tying the conductors to the insulators. Can be used as both top and side ties. Easy to install without tools. The tie is installed on the insulation of the covered conductor. The sets include 6 pcs ties (one set/cross arm). The right size is easy to recognize by the colour code.
| Code | SO216.99 |
| GTIN | 6418677404573 |
| Name | Helical tie CC 70-99-120 mm², neck 73-85 mm |
| Certificates | |
|---|---|
| Standards | EN 50397-2:2009 |
| Colors | |
| Color identifier | Red |
| Dimensions | |
| Weight | 1.51 lb |
| Cable diameter | 17.0 - 20.0 mm |
| Insulator neck | 73 … 85 mm |
| Covered conductors | 70 ... 120 mm² |
| ETIM | |
| ETIM Class | EC003516 |
| Type of accessory/spare part | Other |
| Carton | |
|---|---|
| Size | 25 pcs |
| Depth | 23.85 in |
| Height | 11.1 in |
| Width | 14.76 in |
| Weight | 39.21 lb |
| Volume | 16.92 gal |
| Pallet package | |
| Size | 300 pcs |
| Depth | 49.01 in |
| Height | 42.12 in |
| Width | 31.49 in |
| Weight | 514.68 lb |
| Volume | 281.53 gal |
