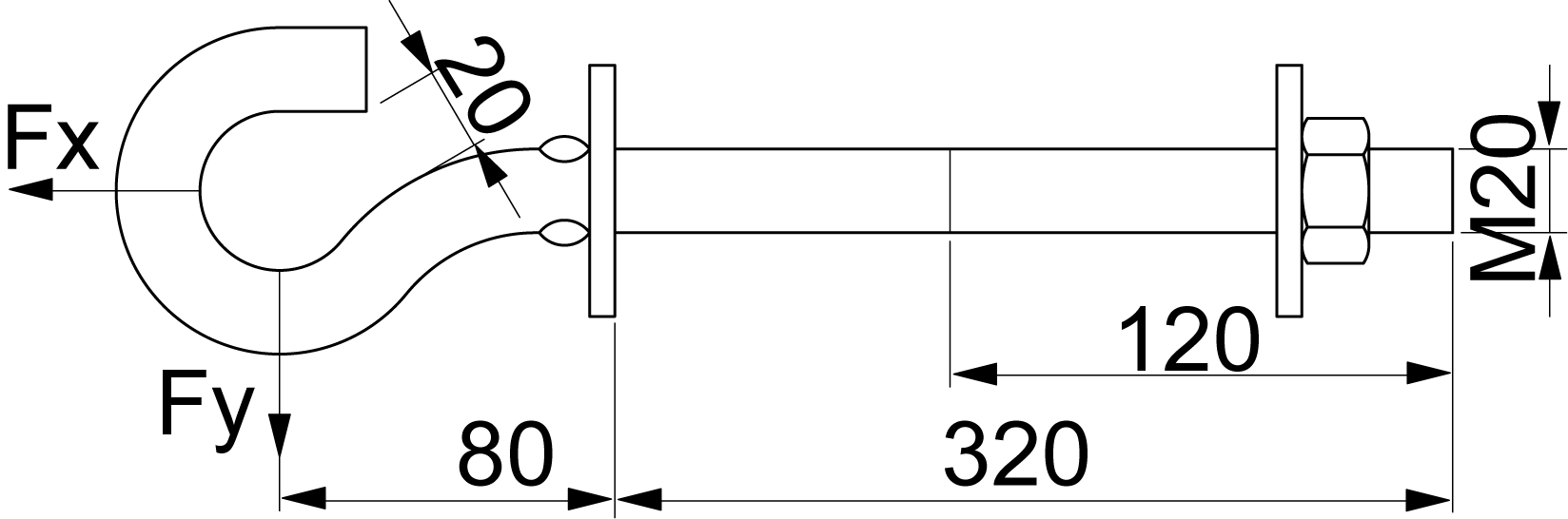

Suspension hook for pole SOT8.23
The suspension hook is used with insulated overhead cables or service cables. The hook is made of hot dip galvanized steel.
| Code | SOT8.23 |
| GTIN | 6418677410369 |
| Name | Suspension hook for pole M20, L=320, through the pole |
| Dimensions | |
|---|---|
| Weight | 3.46 lb |
| Mechanical | |
| Test load Fx | 15.2 kN |
| Test load Fy | 4.5 kN |
| ETIM | |
| ETIM Class | EC000092 |
| Material | Steel |
| Surface protection | Hot-dip galvanized |
| Inner diameter of eye | 0.78 in |
| Shaft diameter | 0.78 in |
| Shaft length | 12.59 in |
| Total length | 17.32 in |
| Thread length | 4.72 in |
| Carton | |
|---|---|
| Size | 20 pcs |
| Depth | 23.62 in |
| Height | 8.26 in |
| Width | 10.23 in |
| Weight | 70.32 lb |
| Volume | 8.65 gal |
| Pallet package | |
| Size | 480 pcs |
| Depth | 47.24 in |
| Height | 38.97 in |
| Width | 31.49 in |
| Weight | 1731.95 lb |
| Volume | 251.06 gal |
