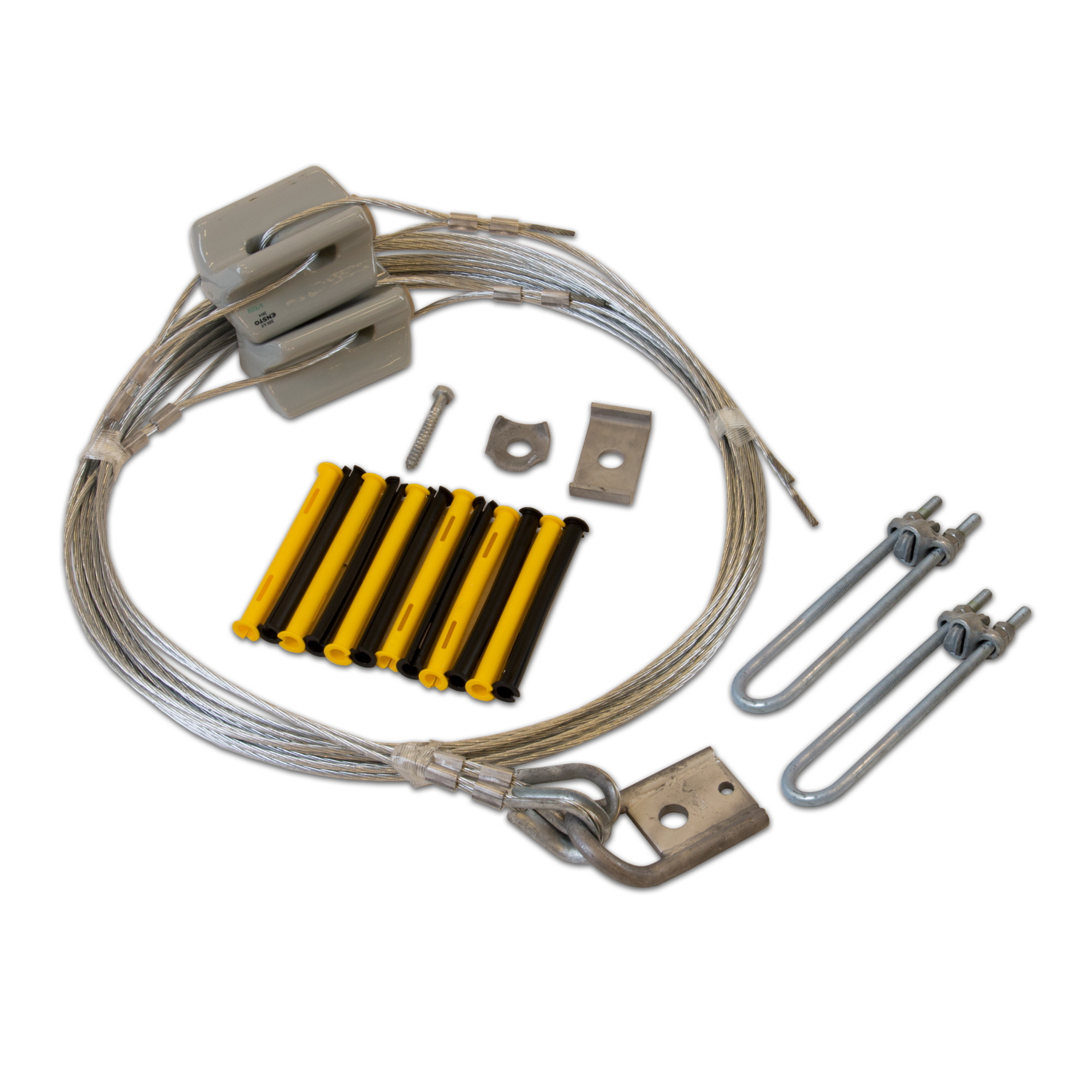

Double stay wire set SHS25K.2X165R

Double stay wire set SHS25K.2X165R

An insulated set for medium voltage lines. The wire gauge is 2x25 mm² steel wire and the permitted load is up to 17.5 kN. All steel parts are hot-dip galvanized and plastic marking tubes are of weather and UV-resistant material.

Code SHS25K.2X165R
GTIN 6438100315580
Name Double stay wire set
2x25 mm² , length 16,5 m, upper end iron
Contact sales

Technical information

Technical specifications

Dimensions
Weight 33.51 lb
Length 649.6 in
Stay wire 2x25 mm²
Features
Basic kit 1
ETIM
ETIM Class EC003513
Type of accessory/spare part Stay wire set
Material Other
Surface protection Other
UV resistant Yes

Packaging

Carton
Size 1 pce
Depth 13.77 in
Height 0 in
Width 19.68 in
Weight 33.73 lb
Volume 0 gal
Pallet package
Size 25 pcs
Weight 887.36 lb
