Conductors AAAC, AAC, ACSR.
| Code | CIL7651 |
| GTIN | 6418677451133 |
| Name | Tension splice 5.82 - 6.73 mm, orange |
-
What are you looking for?
-

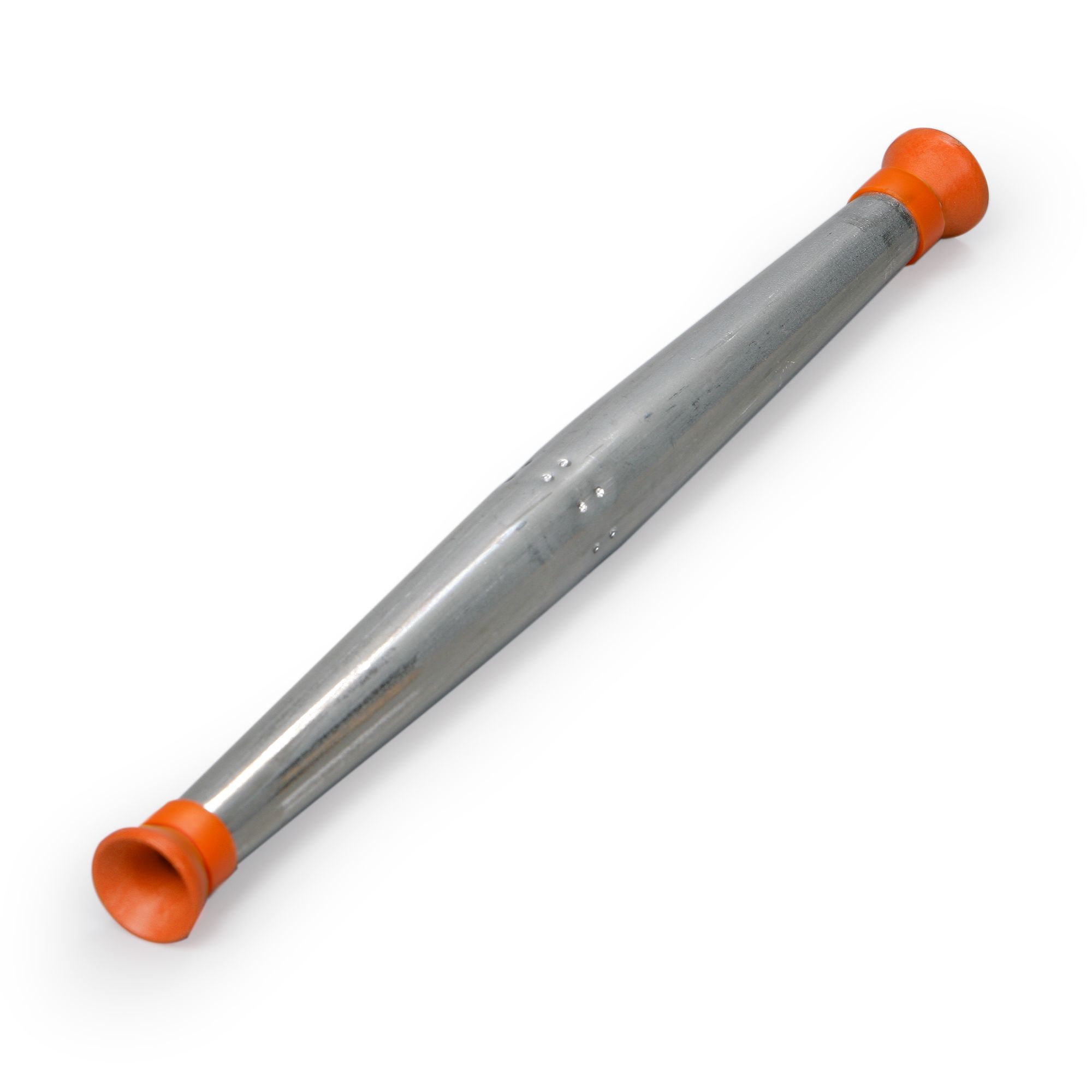

Tension splice CIL7651
Tension splice CIL7651
Technical information
Technical specifications
Technical specifications
| Colors | |
|---|---|
| Color | Orange |
| Dimensions | |
| Weight | 0.35 lb |
| ETIM | |
| ETIM Class | EC001169 |
| Number of conductors | 1 |
| Halogen free | Yes |
Packaging
Packaging
| Carton | |
|---|---|
| Size | 25 pcs |
| Depth | 14.76 in |
| Height | 6.18 in |
| Width | 9.84 in |
| Weight | 9.35 lb |
| Volume | 3.88 gal |
| Pallet package | |
| Size | 1350 pcs |
| Depth | 47.24 in |
| Height | 47.24 in |
| Width | 31.49 in |
| Weight | 549.1 lb |
| Volume | 304.32 gal |
