Tension splice CIL64-CRS

Tension splice CIL64-CRS

The automatic joint is reliable and quick to make. No tools are needed for the installation and with the color code, you can find the correct size easily. The wedges ensure a safe joint. CRS version is meant for environmentally severe areas. It includes pop up tabs, which verify proper conductor insertion. It also includes stainless steel spring, aluminum pilot cup and advanced synthetic inhibitor. Compatibility of the joint and conductor must be checked from the supplier.

Code CIL64-CRS
GTIN 6438100341886
Name Tension splice
9.27-12.06 mm, yellow / grey
Contact sales

Technical information

Technical specifications

Colors
Color Yellow-grey

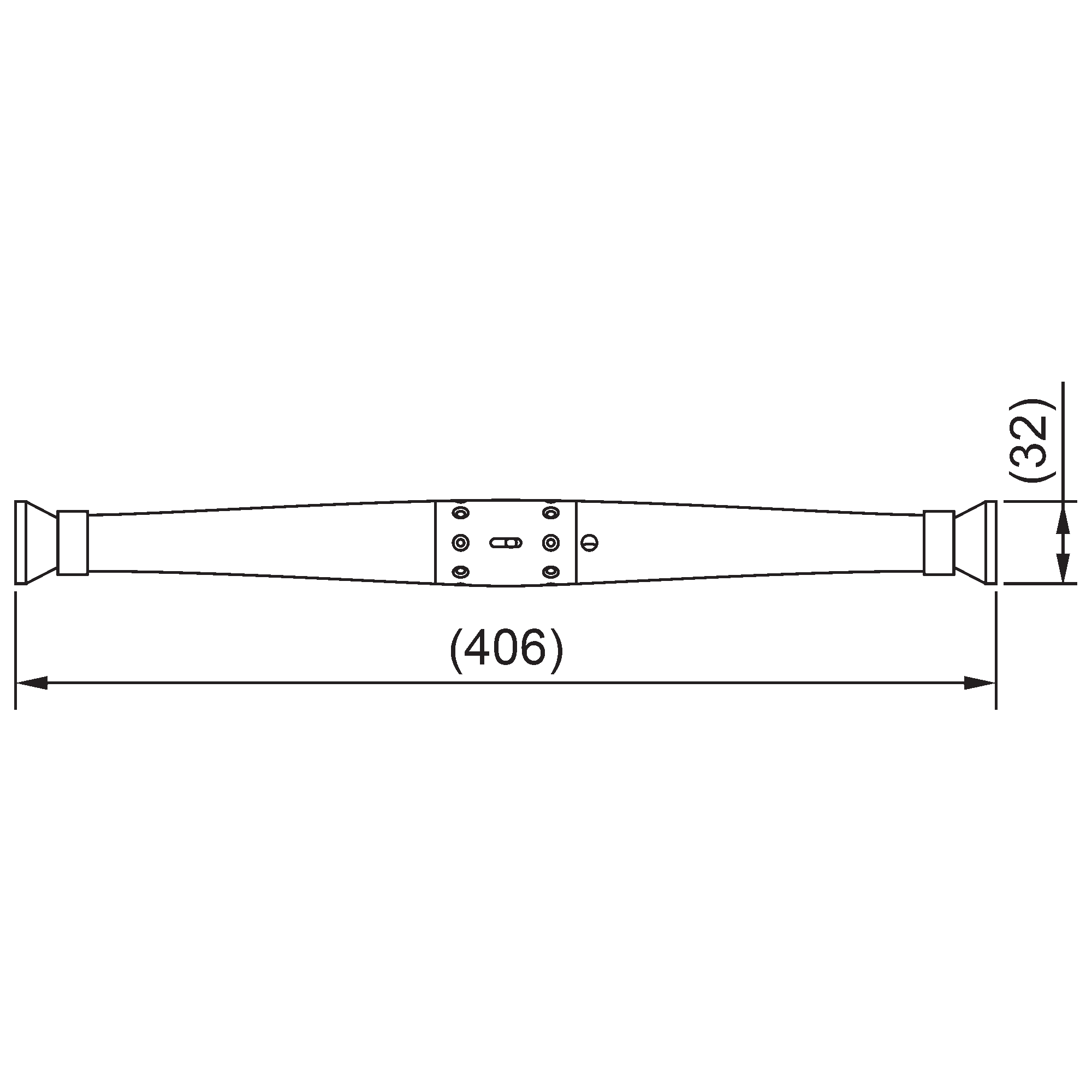

Dimensions
Weight 0.65 lb
Conductor diameter 0.36 ... 0.47 in
Features
For conductor size AAC, AAAC, ACSR 54/9 (Raven)
ETIM
ETIM Class EC001169
Number of conductors 1
Nominal cross section conductor 70 ... 95 mm²
Halogen free Yes

Packaging

Carton
Size 25 pcs
Depth 15.66 in
Height 8.7 in
Width 10.35 in
Weight 17.08 lb
Volume 6.11 gal
Pallet package
Size 600 pcs
Depth 47.24 in
Height 40.15 in
Width 31.49 in
Weight 454.2 lb
Volume 258.67 gal
