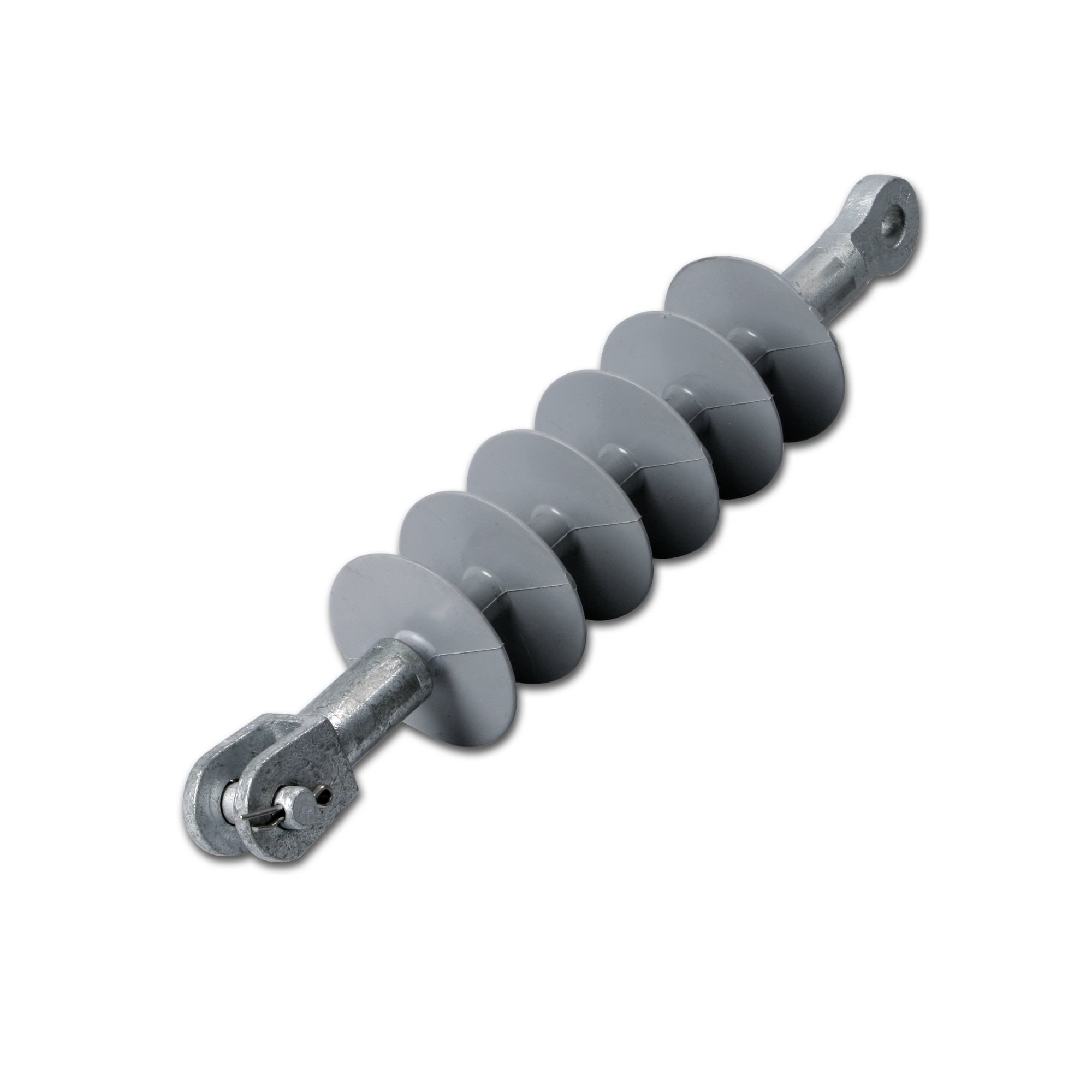

Composite tension insulator SDI98.3

Composite tension insulator SDI98.3

Code	SDI98.3
GTIN	6438100376789
Name	Composite tension insulator 36 kV, 120 kN, clevis-tongue

Contact sales

Technical information

Certificates
Standards	IEC 61109

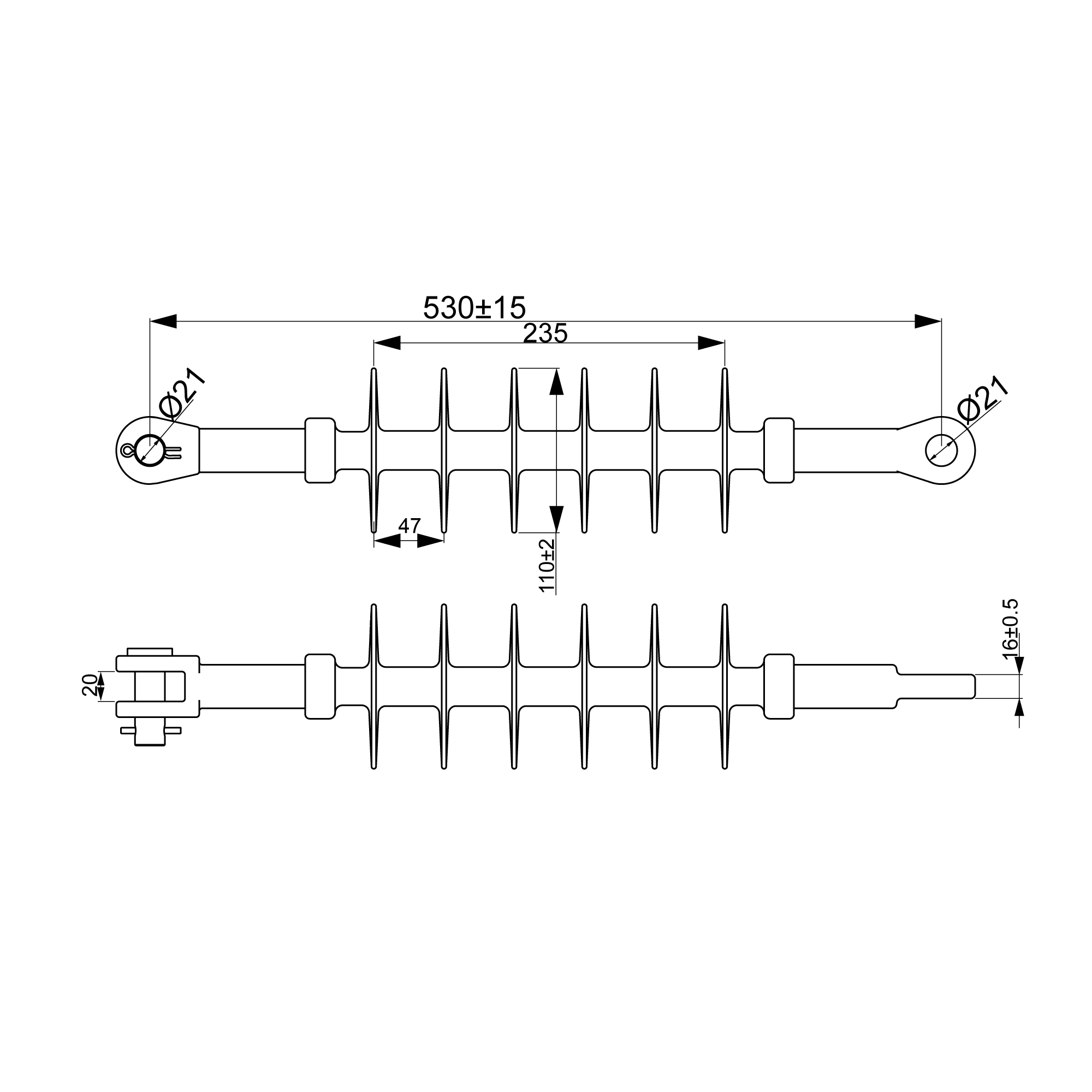

Dimensions
Weight	4.51 lb
Height	4.33 in
Width	4.33 in
Length	21.25 in
Creepage distance	744 mm
Electrical values
Highest system voltage	36 kV
Mechanical
SMFL	120 kN
ETIM
ETIM Class	EC003514
Model	Suspension/tension insulator
Rated voltage	0.036000000000000004 kV
Material	Composite
Length	20.86 in
Diameter	4.33 in
Weight	4.51 lb
Creepage path	29.29 in
Min. dry lightning impulse withstand voltage	170 kV
Wet power frequency withstand voltage	70 kV
Breaking load	120 kN
