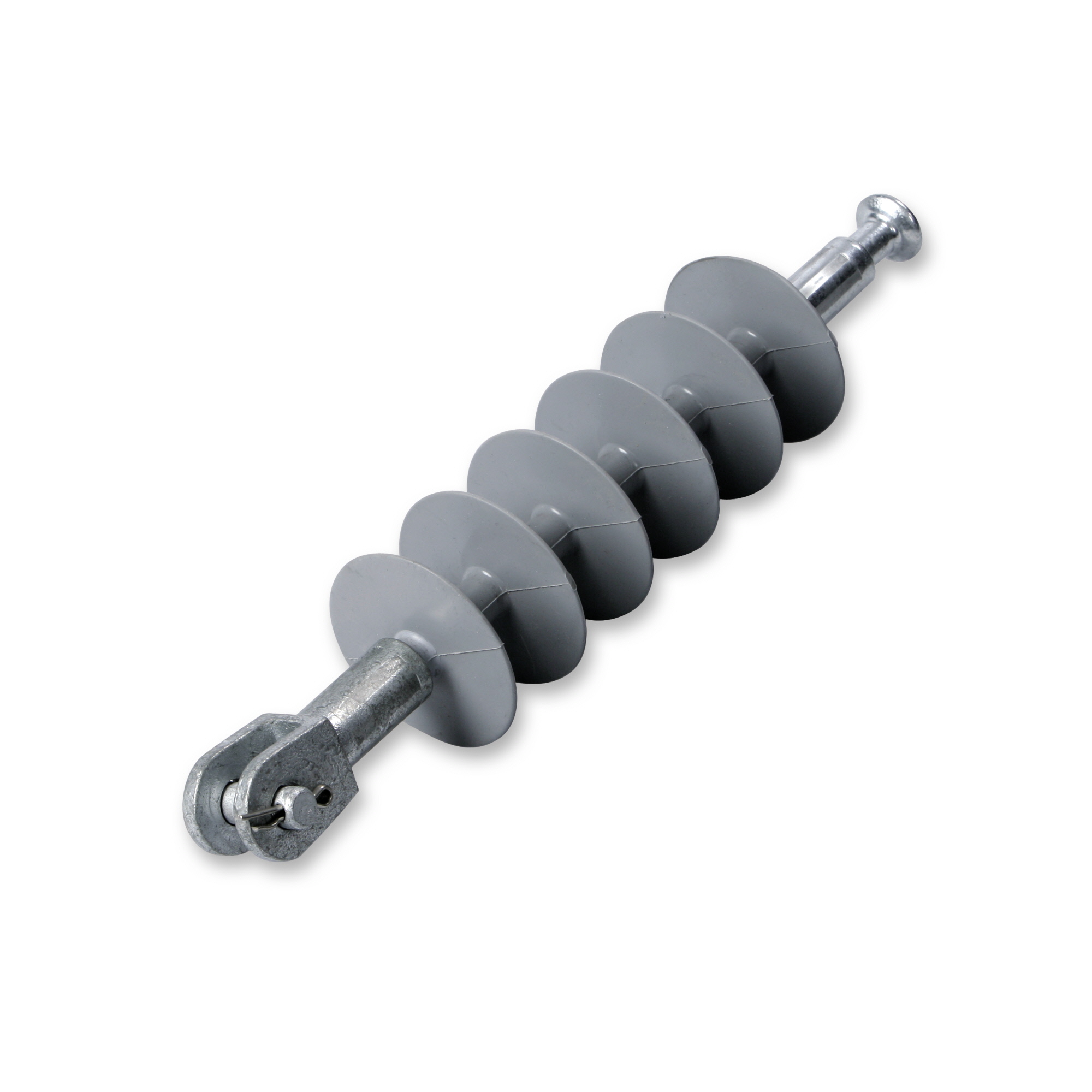

Composite tension insulator SDI90.285
Insulator for terminal and intermediate poles of 24...36 kV lines. Ideal for 24 kV lines in areas of pollution class II & class III (IEC 60815).
| Code | SDI90.285 |
| GTIN | 6418677422812 |
| Name | Composite tension insulator 24...36 kV, 70 kN, clevis-ball |
| Dimensions | |
|---|---|
| Weight | 2.57 lb |
| Height | 3.38 in |
| Width | 3.38 in |
| Length | 17.32 in |
| Creepage distance | 613 mm |
| Electrical values | |
| Highest system voltage | 36 kV |
| Wet power frequency withstand voltage | ≥ 90 kV |
| Features | |
| End fittings | clevis / ball |
| ETIM | |
| ETIM Class | EC003514 |
| Model | Tension insulator |
| Rated voltage | 0.036000000000000004 kV |
| Material | Composite |
| Length | 19.56 in |
| Diameter | 3.38 in |
| Weight | 2.64 lb |
| Creepage path | 24.13 in |
| Min. dry lightning impulse withstand voltage | 171 kV |
| Wet power frequency withstand voltage | 90 kV |
| Breaking load | 70 kN |
| Pollution degree | 2 |
| Carton | |
|---|---|
| Size | 3 pcs |
| Depth | 20.66 in |
| Height | 4.33 in |
| Width | 13.38 in |
| Weight | 8.84 lb |
| Volume | 5.18 gal |
| Pallet package | |
| Size | 114 pcs |
| Depth | 47.24 in |
| Height | 40.15 in |
| Width | 31.49 in |
| Weight | 380.03 lb |
| Volume | 258.67 gal |
