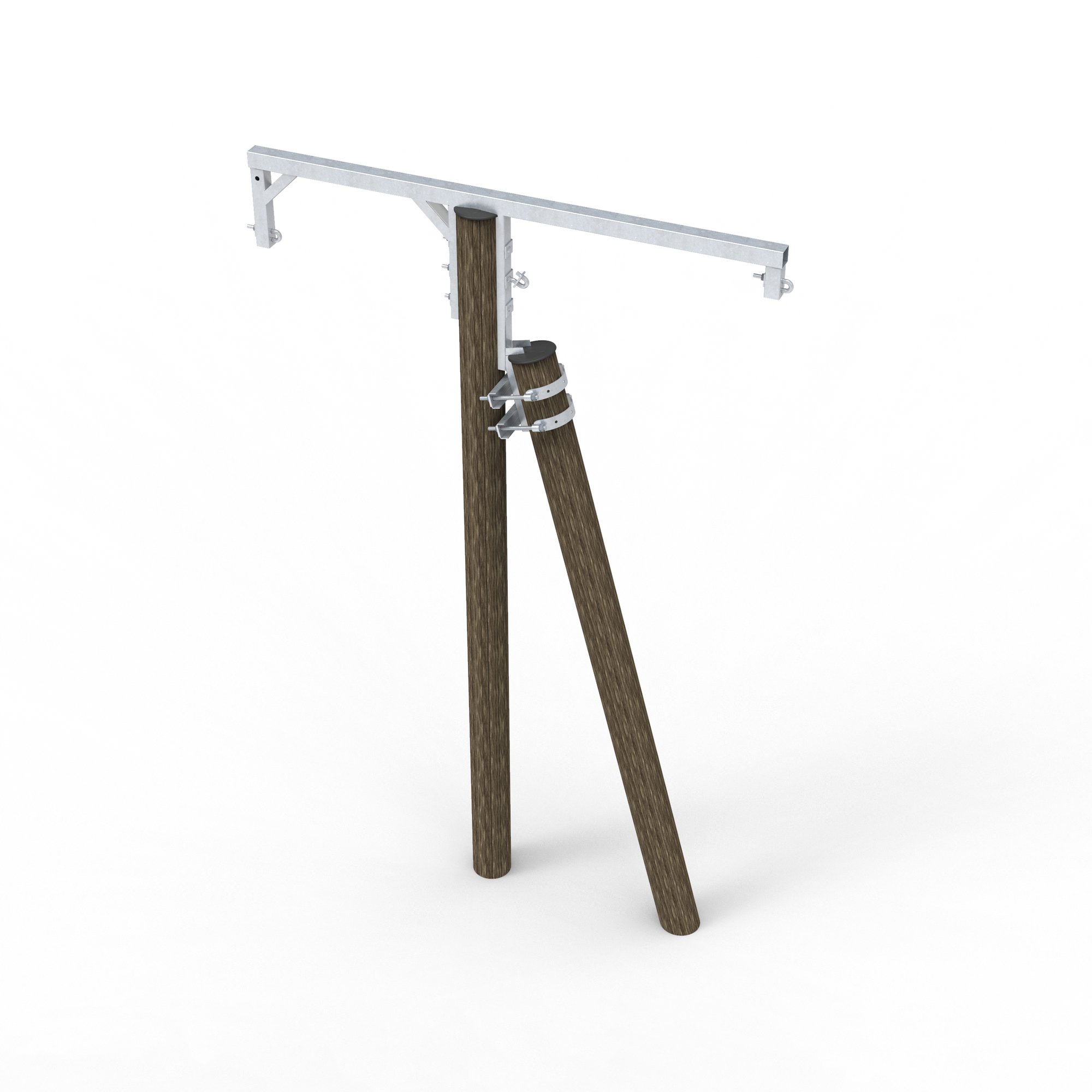

Angle crossarm SH696
SH696 is for single, three phase bare conductor lines. Includes support bracket for A-pole.
| Code | SH696 |
| GTIN | 6438100300364 |
| Name | Angle crossarm 20 kV, A-pole |

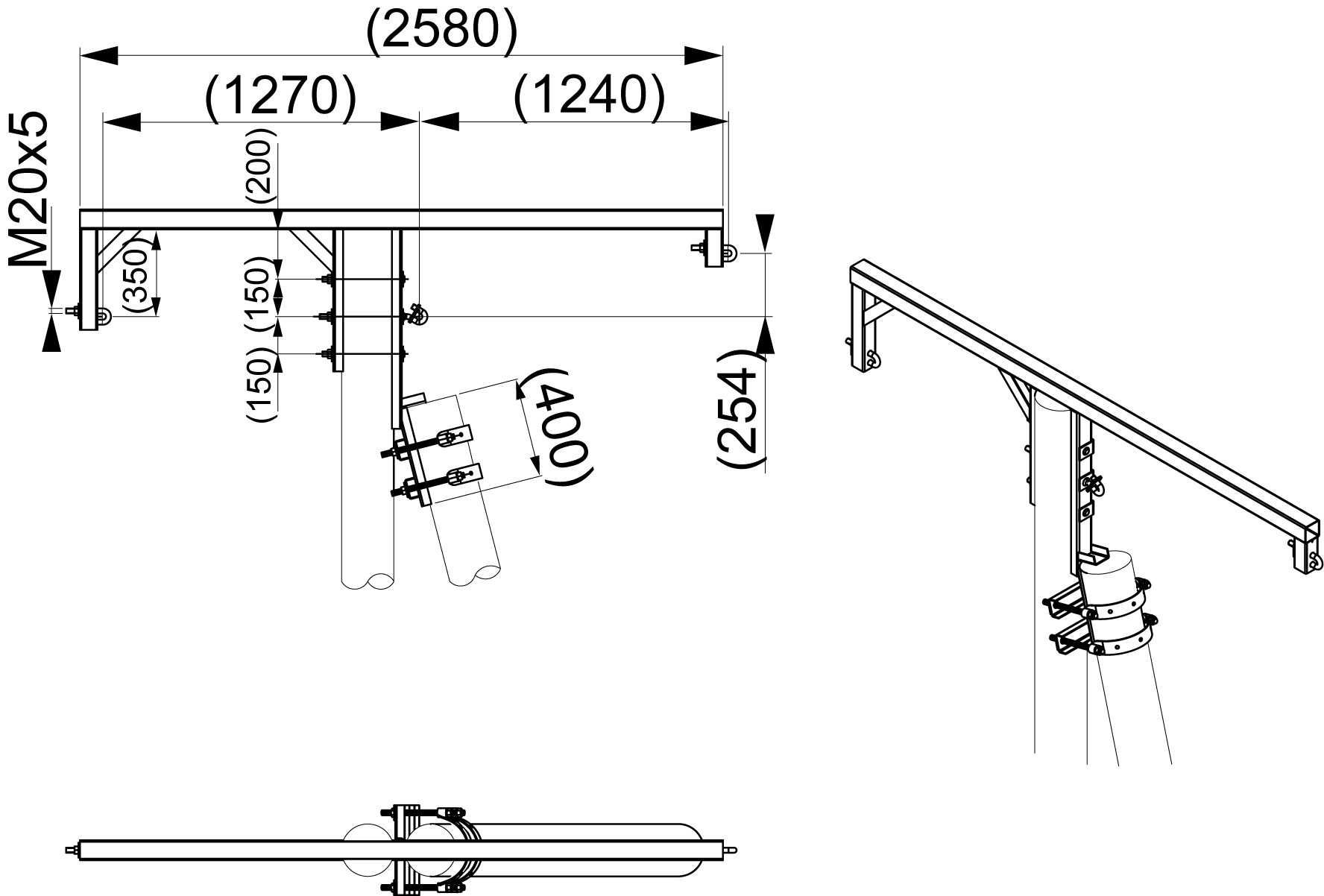

| Dimensions | |
|---|---|
| Weight | 110.23 lb |
| Mechanical | |
| Allowed loads at conductor fixing point | Fx = 14.0 kN, Fz = 4.5 kN, Fy = 4.0 kN |
| ETIM | |
| ETIM Class | EC003515 |
| Type | Angled cross arm |
| Suitable for | One pole |
| Profile shape | RHS (Rectangular Hollow Section) |
| Profile width | 3.14 in |
| Profile height | 3.14 in |
| Wall thickness | 0.11 in |
| Length | 101.57 in |
| Material | Steel |
| Surface protection | Galvanized |
| Conductor surface | Bare |
| Max. rated voltage | 20 kV |
| Pallet package | |
|---|---|
| Size | 9 pcs |
| Depth | 47.24 in |
| Width | 31.49 in |
| Weight | 1036.17 lb |
