Automatic splice CIL108.6
The automatic joint is easy and quick to install. No special tools or heating equipment is needed for the installation. The wedge type automatic joint ensures a secure cable connection. The kit includes two cold shrink insulation sleeves together with mastic and tape for securing the joint.
| Code | CIL108.6 |
| GTIN | 6438389105292 |
| Name | Automatic splice 3/0 - 4/0 AWG |
| Certificates | |
|---|---|
| Standards | EN 50397-2 |

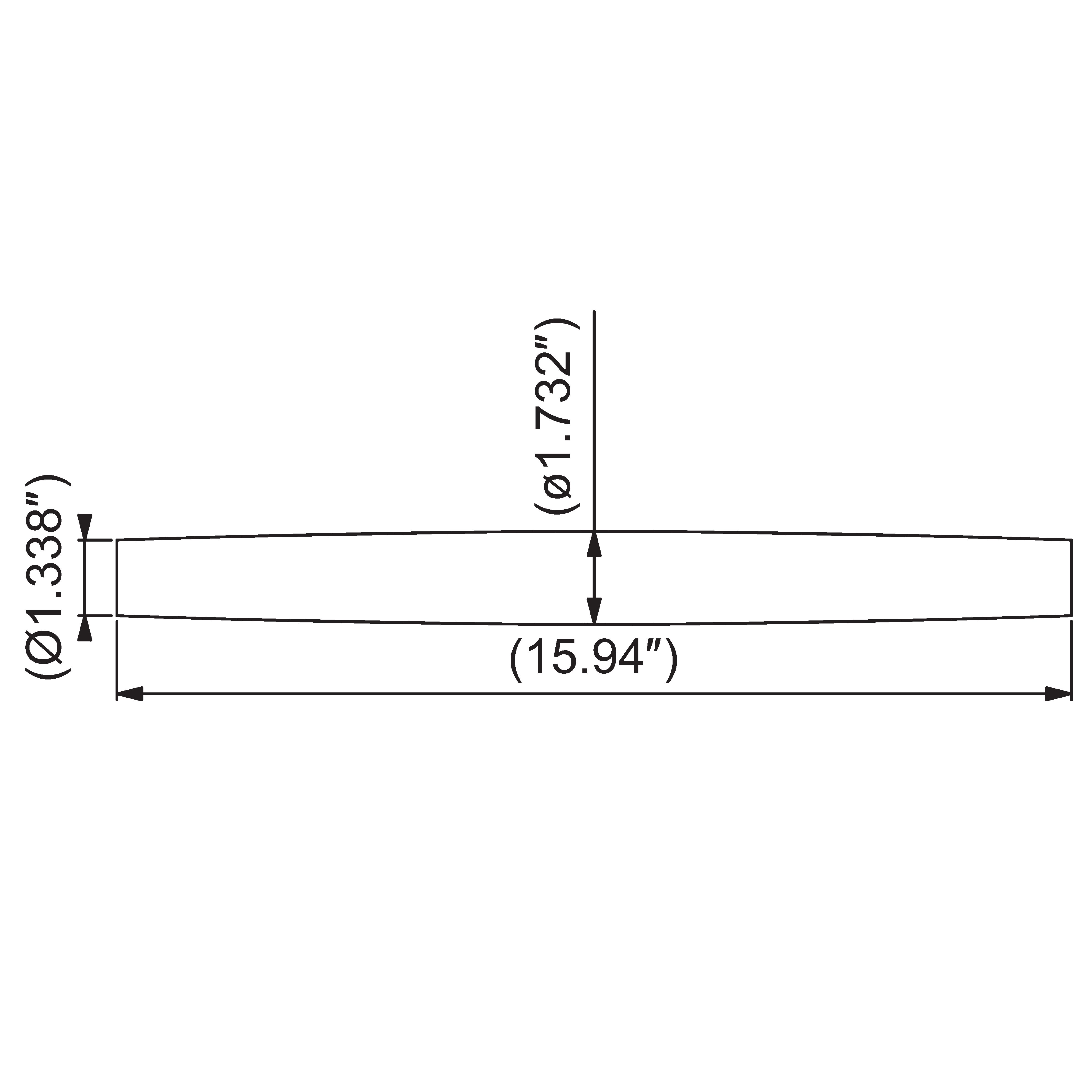

| Dimensions | |
| Weight | 2.24 lb |
| Height | 1.73 in |
| Width | 1.73 in |
| Length | 15.94 in |
| Conductor size US | 3/0 - 4/0 AWG |
| Electrical values | |
| Highest system voltage | 24 kV |
| ETIM | |
| ETIM Class | EC001169 |
| Rated voltage U0/U (Um) | 12/20 (24) kV |
| Model | Cold-shrink |
| Insulating material | Plastic |
| Number of conductors | 1 |
| Nominal cross section conductor | 99 ... 150 mm² |
| Halogen free | Yes |
| Carton | |
|---|---|
| Size | 12 pcs |
| Depth | 18.81 in |
| Height | 12.24 in |
| Width | 15.66 in |
| Weight | 28.18 lb |
| Volume | 15.62 gal |
| Pallet package | |
| Size | 144 pcs |
| Depth | 47.24 in |
| Height | 43.3 in |
| Width | 31.49 in |
| Weight | 382.32 lb |
| Volume | 278.96 gal |
