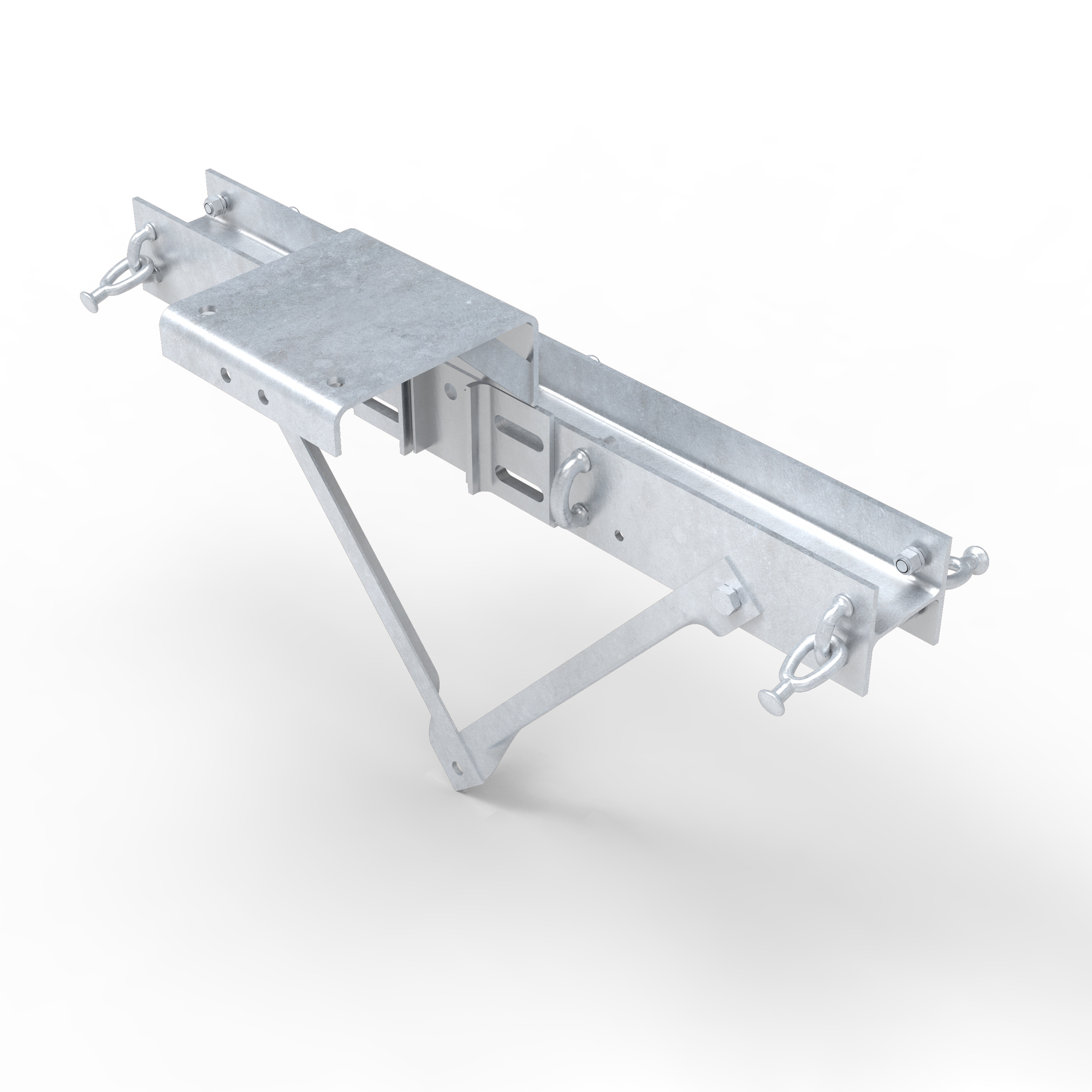

Regel SH548.1
Avspänningsregel 2132 monterad
| Kod | SH548.1 |
| GTIN | 6418677439858 |
| Namn | Regel EBR 2132 |
| E-nummer | 0628101 |
| Miljöpåverkan | |
|---|---|
| Environmental declaration type | External EPD |
| Miljödeklaration registreringsnummer | EPD HUB, HUB-7192 |
| REACH | Förordning (EG) nr 1907/2006, SVHC-krav: Uppfyller kraven |
| RoHS status | RoHS godkänd |
| Environmental data calculation date | 2026-08-14 13:00:00 |
| PFAS | innehåller PFAS |
| Environmental declaration expiry date | 2031-08-13 13:00:00 |
| EPD Hub link | https://manage.epdhub.com/declarations/metal-based-products/ensto-finland-oy/8674/medium-voltage-crossarm/ (EPD HUB-7192) |
| EPD standard | EN 15804:2012+A2:2019/AC:2021 and ISO 14025 |
| GWP-fossil, A1-A3 | 229 kgCO2e |
| Dimensioner | |
| Vikt | 39.7 kg |

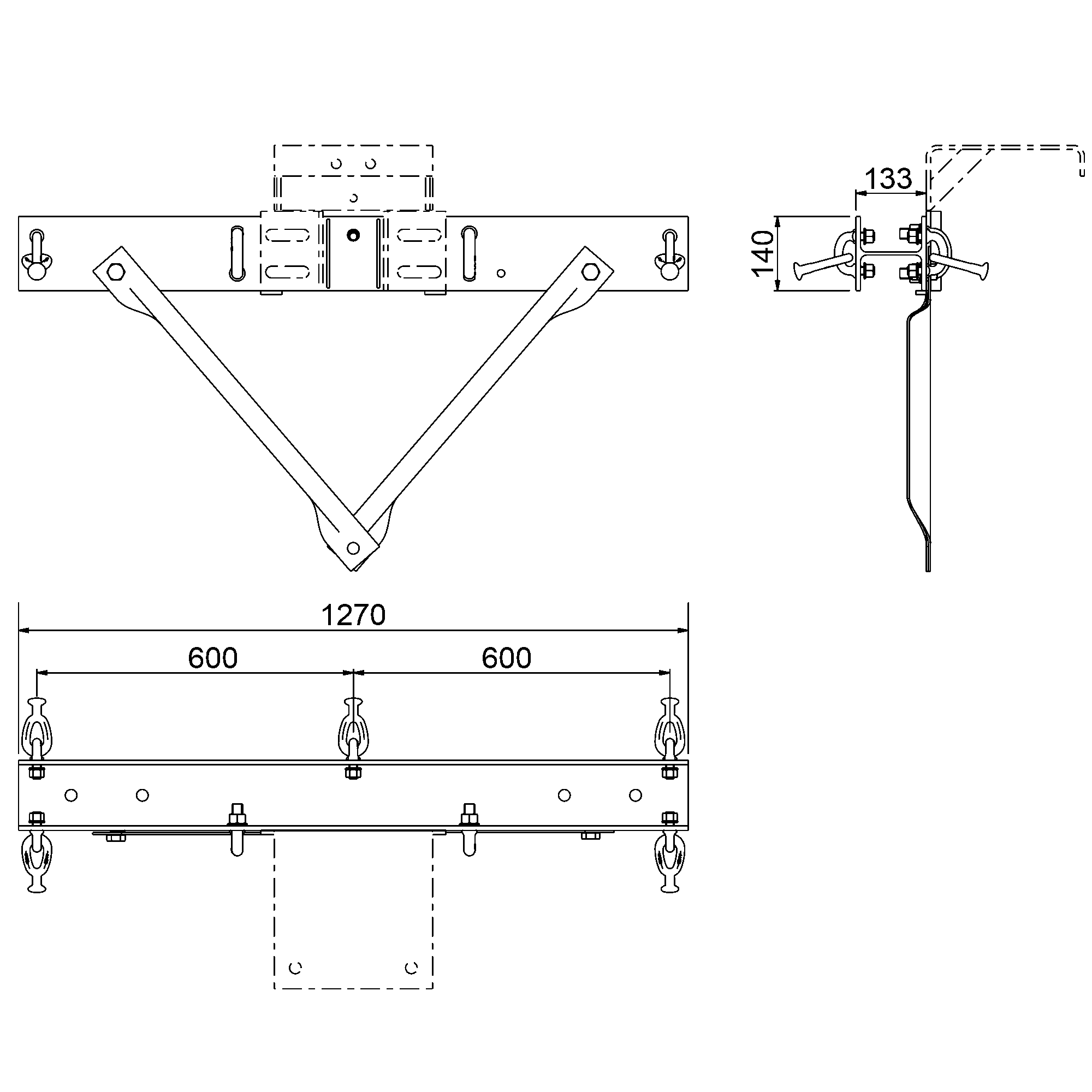

| Längd | 1270 mm |
| ETIM | |
| ETIM Class | EC003515 |
| Type | Deadend cross arm |
| Suitable for | One pole |
| Profile shape | H-profile |
| Profile width | 133 mm |
| Profile height | 140 mm |
| Length | 1270 mm |
| Material | Steel |
| Surface protection | Galvanized |
| Max. rated voltage | 24 kV |
| Palettpaket | |
|---|---|
| Storlek | 20 st |
| Djup | 1200 mm |
| Bredd | 800 mm |
| Vikt | 814.000 kg |
