BLL skarv CIL109.6
The automatic joint is easy and quick to install. No special tools or heating equipment is needed for the installation. The wedge type automatic joint ensures a secure cable connection. The kit includes two cold shrink insulation sleeves together with mastic and tape for securing the joint.
| Kod | CIL109.6 |
| GTIN | 6438389105308 |
| Namn | BLL skarv 266 - 336 kcmil |
| Certifikater | |
|---|---|
| Standard märkningar | EN 50397-2 |

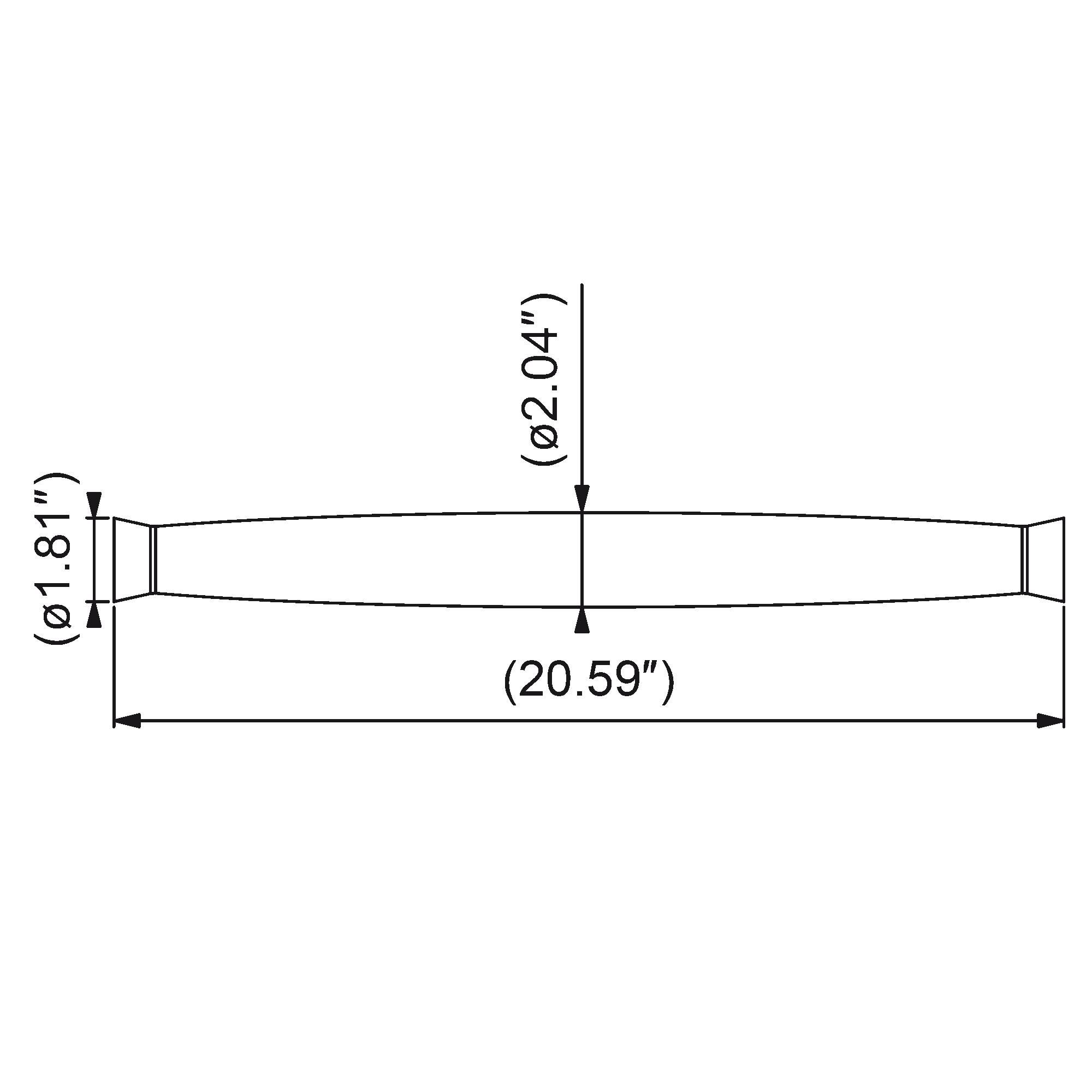

| Dimensioner | |
| Vikt | 1.42 kg |
| Höjd | 52 mm |
| Bredd | 52 mm |
| Längd | 523 mm |
| Conductor size US | 266 - 336 kcmil |
| Elektriska värden | |
| Högsta systemspänning | 24 kV |
| ETIM | |
| ETIM Class | EC001169 |
| Rated voltage U0/U (Um) | 12/20 (24) kV |
| Model | Cold-shrink |
| Insulating material | Plastic |
| Number of conductors | 1 |
| Nominal cross section conductor | ≥ 157 mm² |
| Halogen free | Yes |
| Kartong | |
|---|---|
| Storlek | 12 pce |
| Djup | 606 mm |
| Höjd | 282 mm |
| Bredd | 375 mm |
| Vikt | 17.653 kg |
| Volym | 64.0845 l |
| Palettpaket | |
| Storlek | 120 st |
| Djup | 1200 mm |
| Höjd | 1067 mm |
| Bredd | 800 mm |
| Vikt | 196.530 kg |
| Volym | 1024.32 l |
