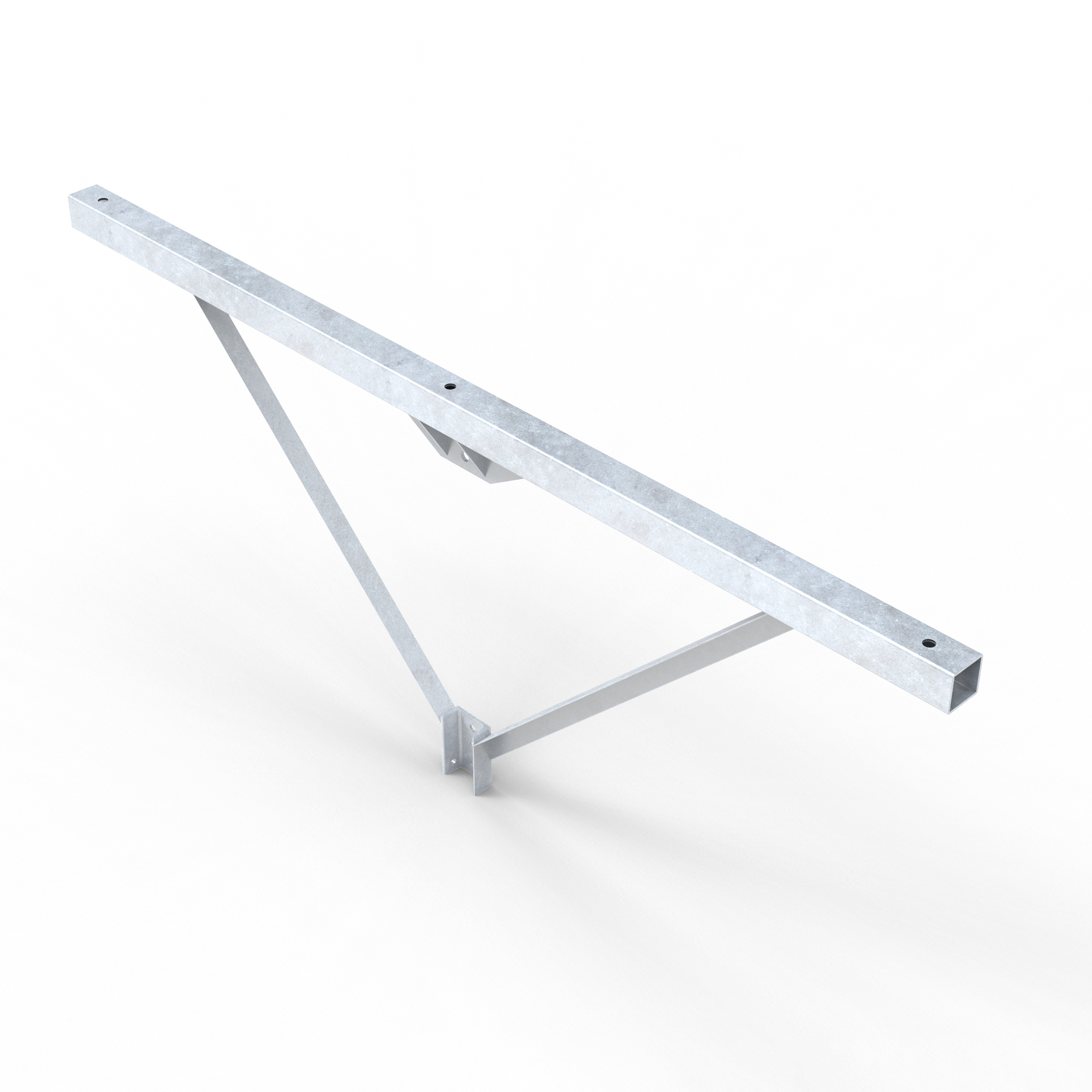

Vinkel regel, horisontell SH63
SH63 is for single, three phase bare conductor lines. Allowed loads for the crossarm at conductor fixing points are: Fx= 14.0 kN angle load Fz= 4.5 kN horizontally along conductor Fy= 4.0 kN vertically downwards.In addition to one pole installation, this crossarm can be installed also for two poles by fixing the crossarm from its outermost struts onto the poles with bolts.
| Kod | SH63 |
| GTIN | 6418677407307 |
| Namn | Vinkel regel, horisontell 20 kV, A=1200, H=256.5 |
| Dimensioner | |
|---|---|
| Vikt | 34.12 kg |
| Mekanisk | |
| Allowed loads at conductor fixing point | Fx = 14.0, Fz = 4.5 kN, Fy = 4.0 kN |
| ETIM | |
| ETIM Class | EC003515 |
| Type | Angled cross arm |
| Suitable for | One pole/two pole |
| Profile shape | RHS (Rectangular Hollow Section) |
| Material | Steel |
| Surface protection | Galvanized |
| Conductor surface | Bare |
| Max. rated voltage | 20 kV |
| Palettpaket | |
|---|---|
| Storlek | 25 st |
| Djup | 1200 mm |
| Höjd | 500 mm |
| Bredd | 800 mm |
| Vikt | 873.000 kg |
| Volym | 480 l |
