Vinkel regel SH207.10

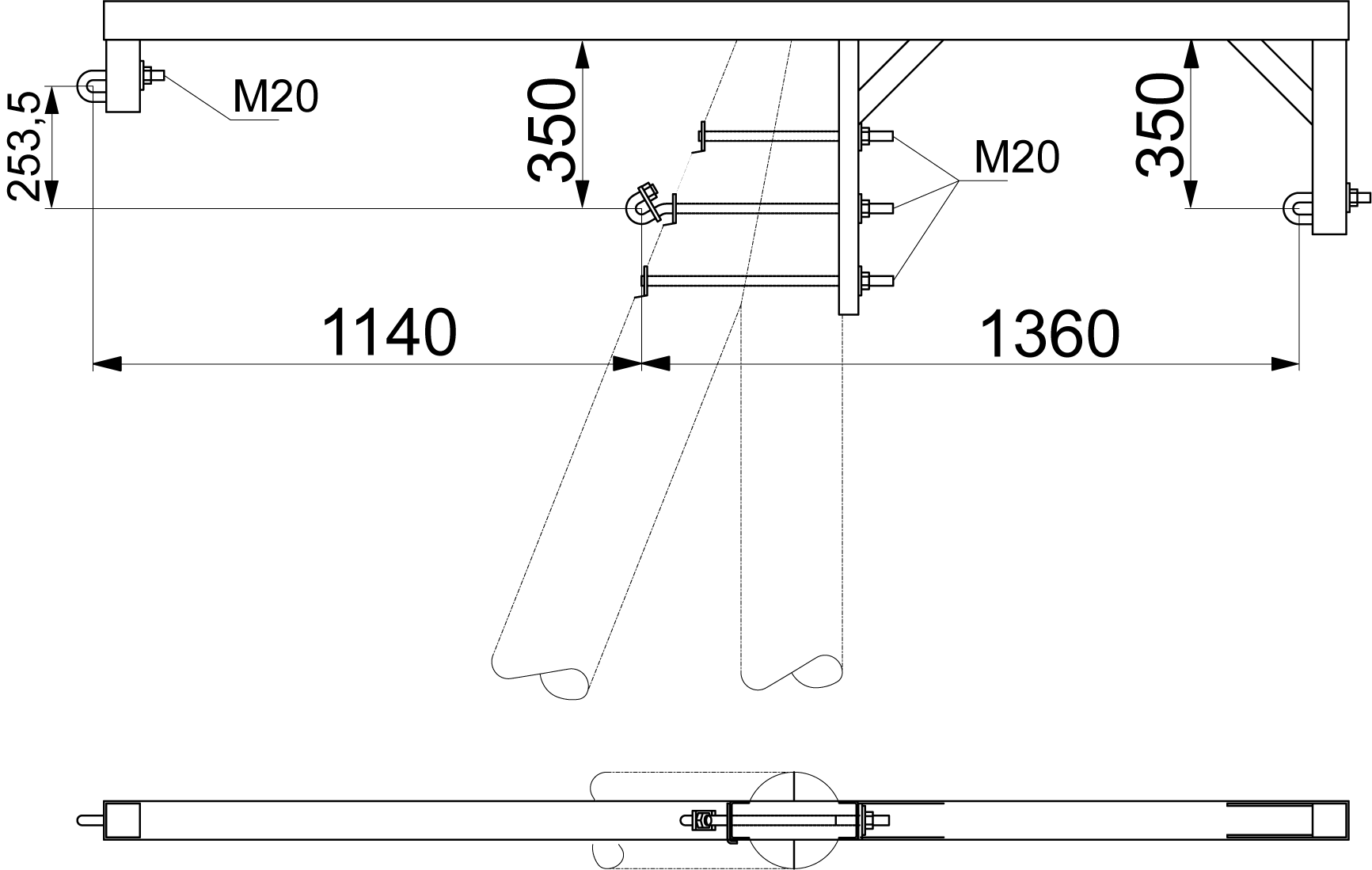

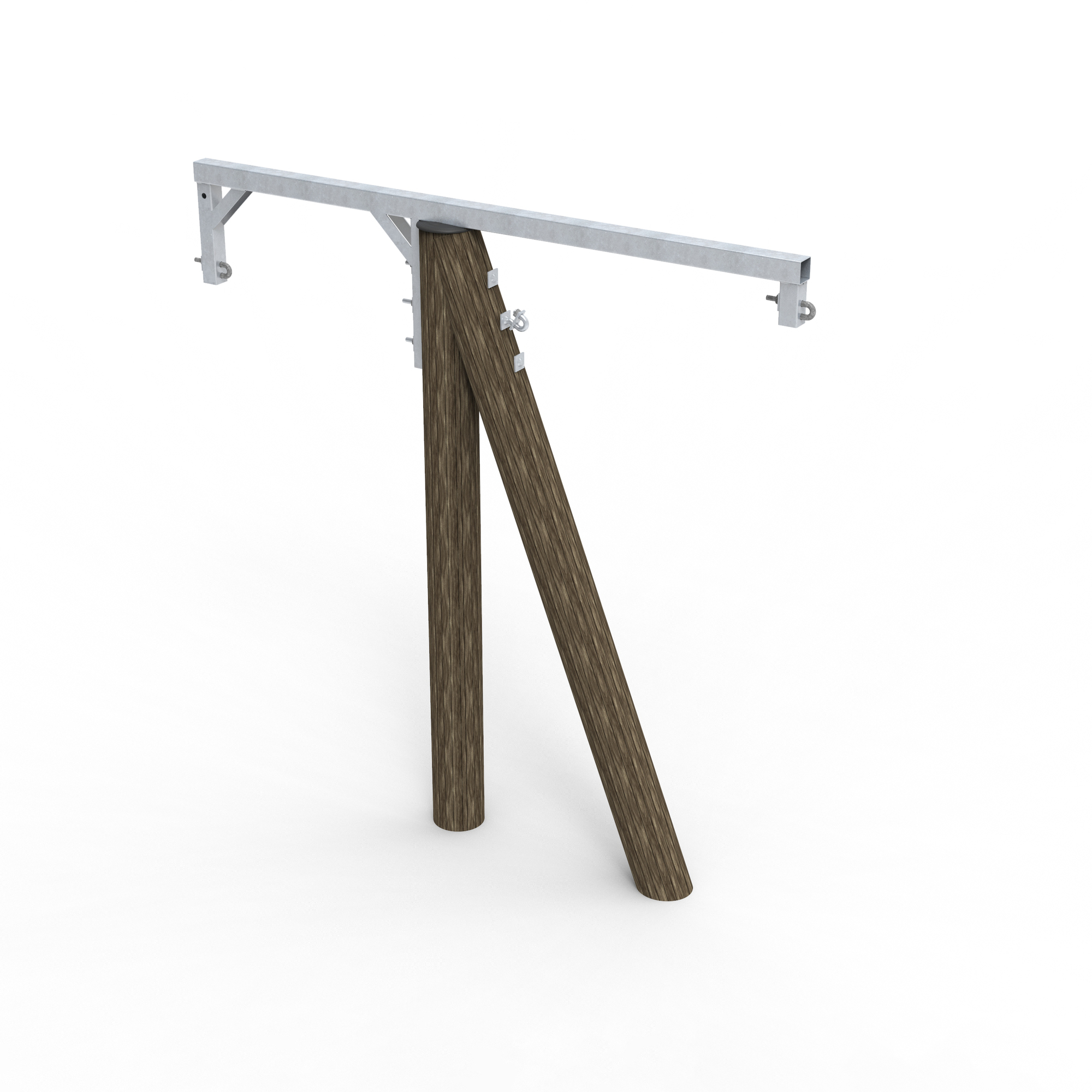

SH207.10 is for single, three phase bare conductor lines. This is an optional structure for SH63 crossarm. SH207.10 crossarm is installed centrally onto the peak of A-pole, thus causing no torsion on the pole.Allowed loads for the crossarm at conductor fixing points are: Fx=14.0 kN angle load, Fz=4.5 kN horizontally along conductor, Fy=4.0 kN vertically downwards.
| Kod | SH207.10 |
| GTIN | 6418677407147 |
| Namn | Vinkel regel 20 kV, A-pole |
| Dimensioner | |
|---|---|
| Vikt | 33 kg |
| Mekanisk | |
| Allowed loads at conductor fixing point | Fx = 14.0, Fz = 4.5 kN, Fy = 4.0 kN |
| ETIM | |
| ETIM Class | EC003515 |
| Type | Angled cross arm |
| Suitable for | One pole |
| Profile shape | RHS (Rectangular Hollow Section) |
| Material | Steel |
| Surface protection | Galvanized |
| Conductor surface | Bare |
| Max. rated voltage | 20 kV |
| Kartong | |
|---|---|
| Storlek | 1 pce |
| Vikt | 33.050 kg |
| Palettpaket | |
| Storlek | 25 pce |
| Djup | 1200 mm |
| Bredd | 800 mm |
| Vikt | 846.250 kg |
