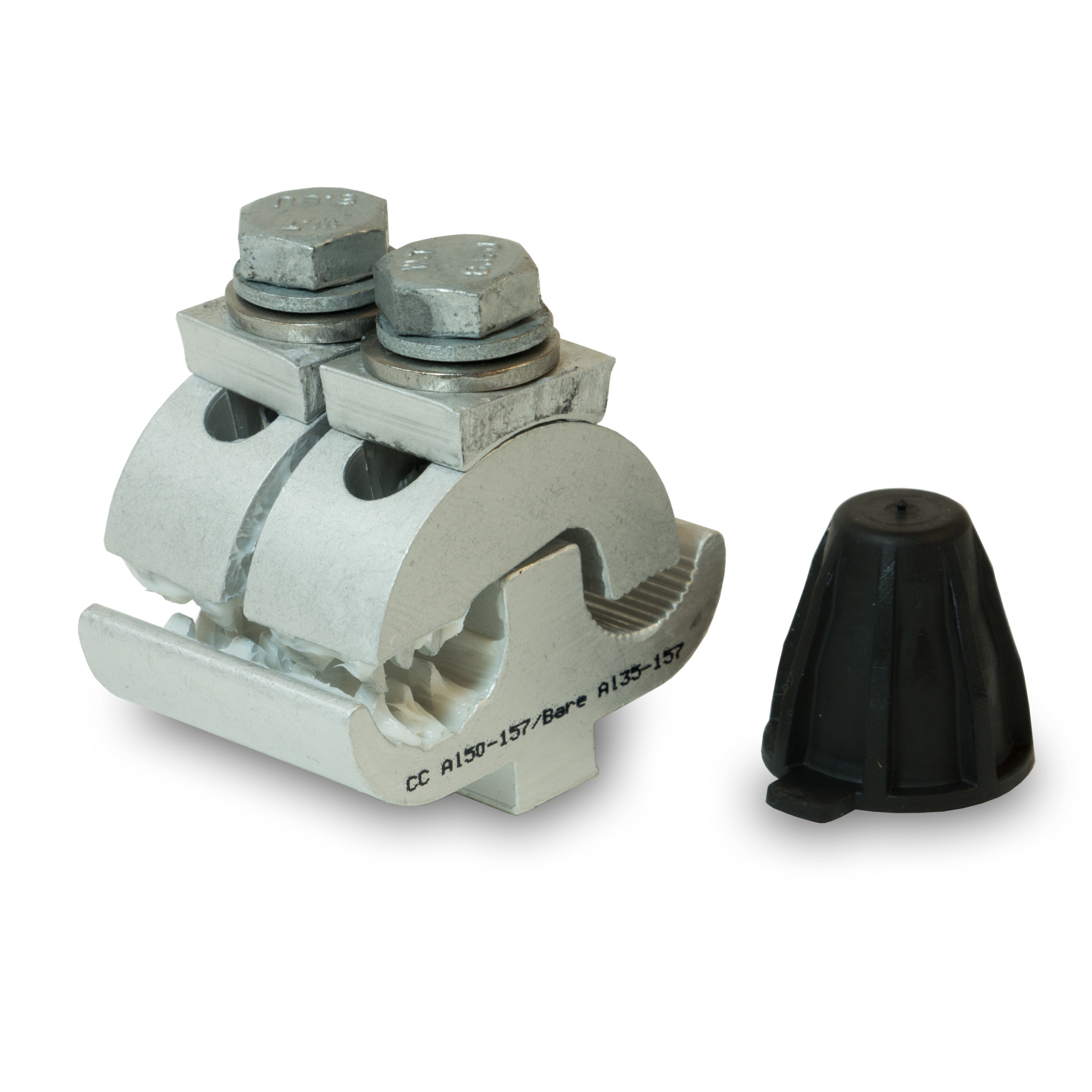

Klämma för isolerad/blank SEW20.7
The connector SEW20.7 can be used for medium voltage covered conductor to bare conductor connections. The connector is watertight by silicone greased teeth.
| Kod | SEW20.7 |
| GTIN | 6438100310493 |
| Namn | Klämma för isolerad/blank CC Al 50-157 / Bare Al 35-157 mm² |
| Certifikater | |
|---|---|
| Standard märkningar | EN 50397-2 |

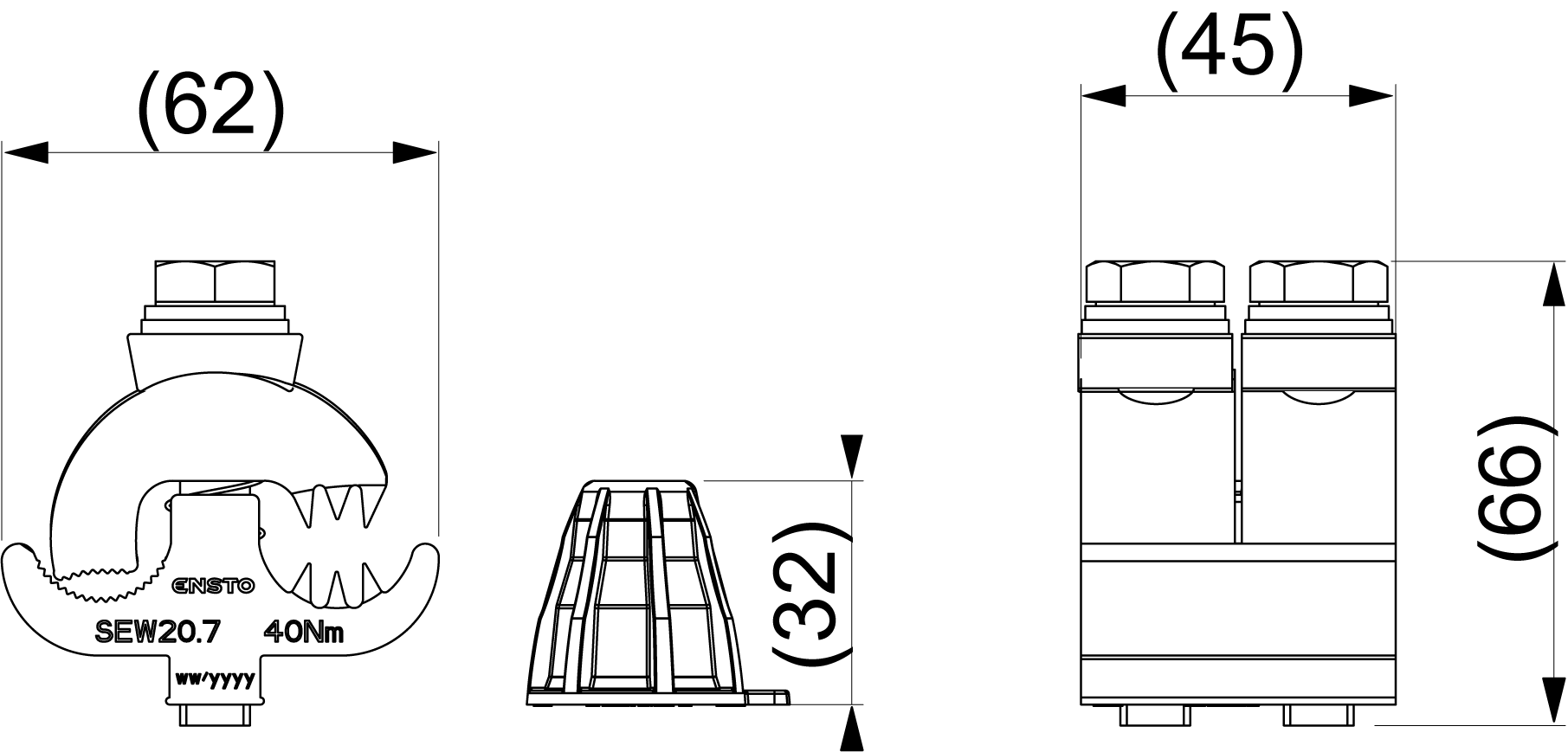

| Dimensioner | |
| Vikt | 0.25 kg |
| Huvudledning mm² | Bare 35-157 mm² |
| Grenledare mm² | CC 50-157 mm² |
| Funktioner | |
| Bult | 2xM10 |
| Mekanisk | |
| Åtdragningsmoment | 40 Nm |
| ETIM | |
| ETIM Class | EC001062 |
| Nominal cross section main conductor, SM | 35 ... 157 mm² |
| Nominal cross section branch conductor, SE/RE | 50 ... 157 mm² |
| Nominal cross section branch conductor, SM/RM | 50 ... 157 mm² |
| Material main conductor | Aluminium |
| Material branch conductor | Aluminium |
| Terminal insulated | No |
| Clamping channel opening main conductor | Both sides open |
| Clamping channel opening branch conductor | Both sides open |
| Surface protection | Bare |
| Type of connection | Insulation piercing connector IPC |
| Kartong | |
|---|---|
| Storlek | 25 st |
| Djup | 220 mm |
| Höjd | 175 mm |
| Bredd | 220 mm |
| Vikt | 6.550 kg |
| Volym | 8.47 l |
| Palettpaket | |
| Storlek | 1750 st |
| Djup | 1200 mm |
| Höjd | 870 mm |
| Bredd | 800 mm |
| Vikt | 478.500 kg |
| Volym | 835.2 l |
