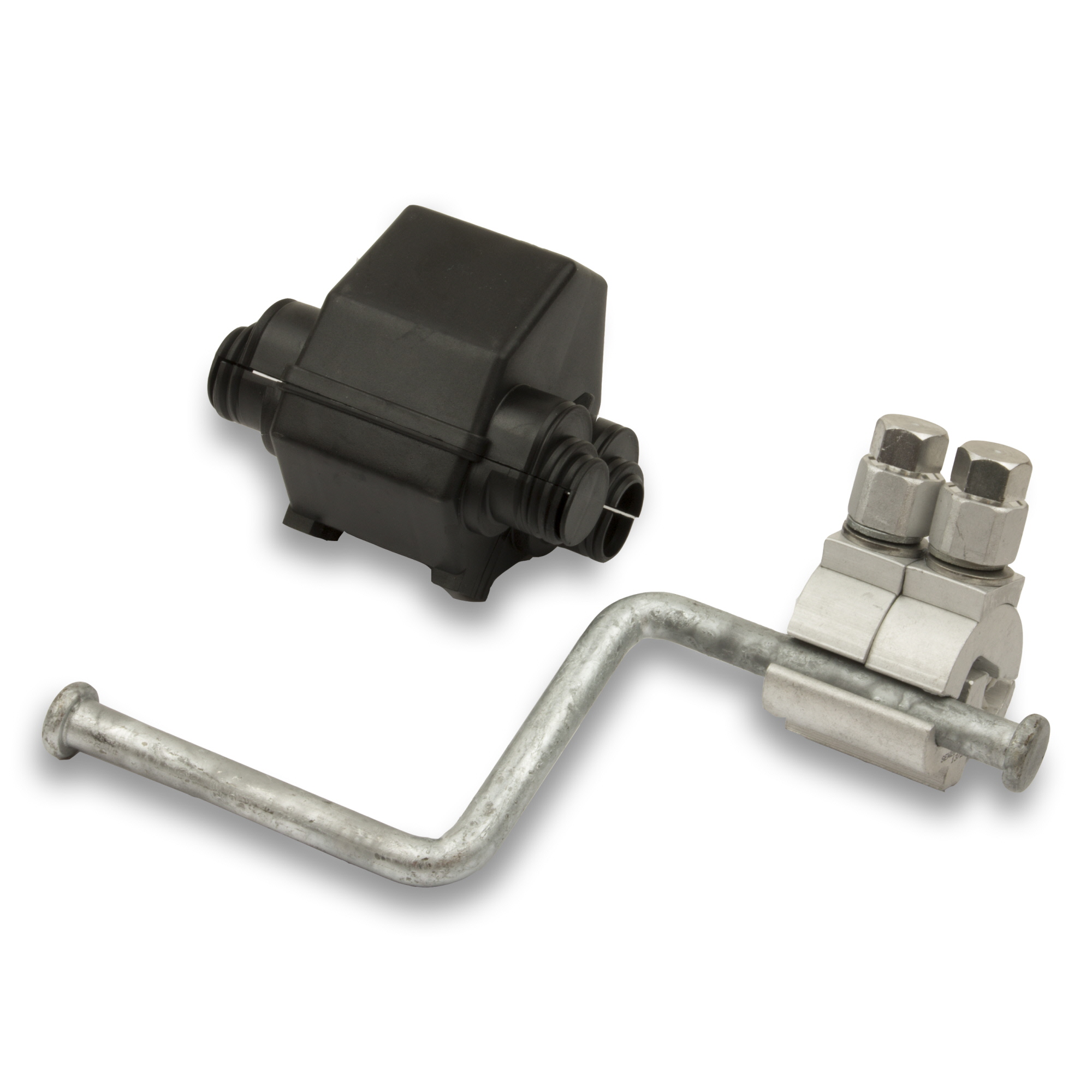

Tillfällig jordningsklämma SEW20.3S
SEW20.3S is used as a temporary earthing connector. The connector SEW20.3S includes an arc protection horn suitable for use with temporary earthing devices with screw fixing. The connector is watertight by silicone greased teeth. The connector is equipped with shear head nuts.
| Kod | SEW20.3S |
| GTIN | 6438100324834 |
| Namn | Tillfällig jordningsklämma PAS/BLL-T 50-157 mm² AlMgSi, with temporary earthing horn |
| Certifikater | |
|---|---|
| Standard märkningar | EN 50397-2 |

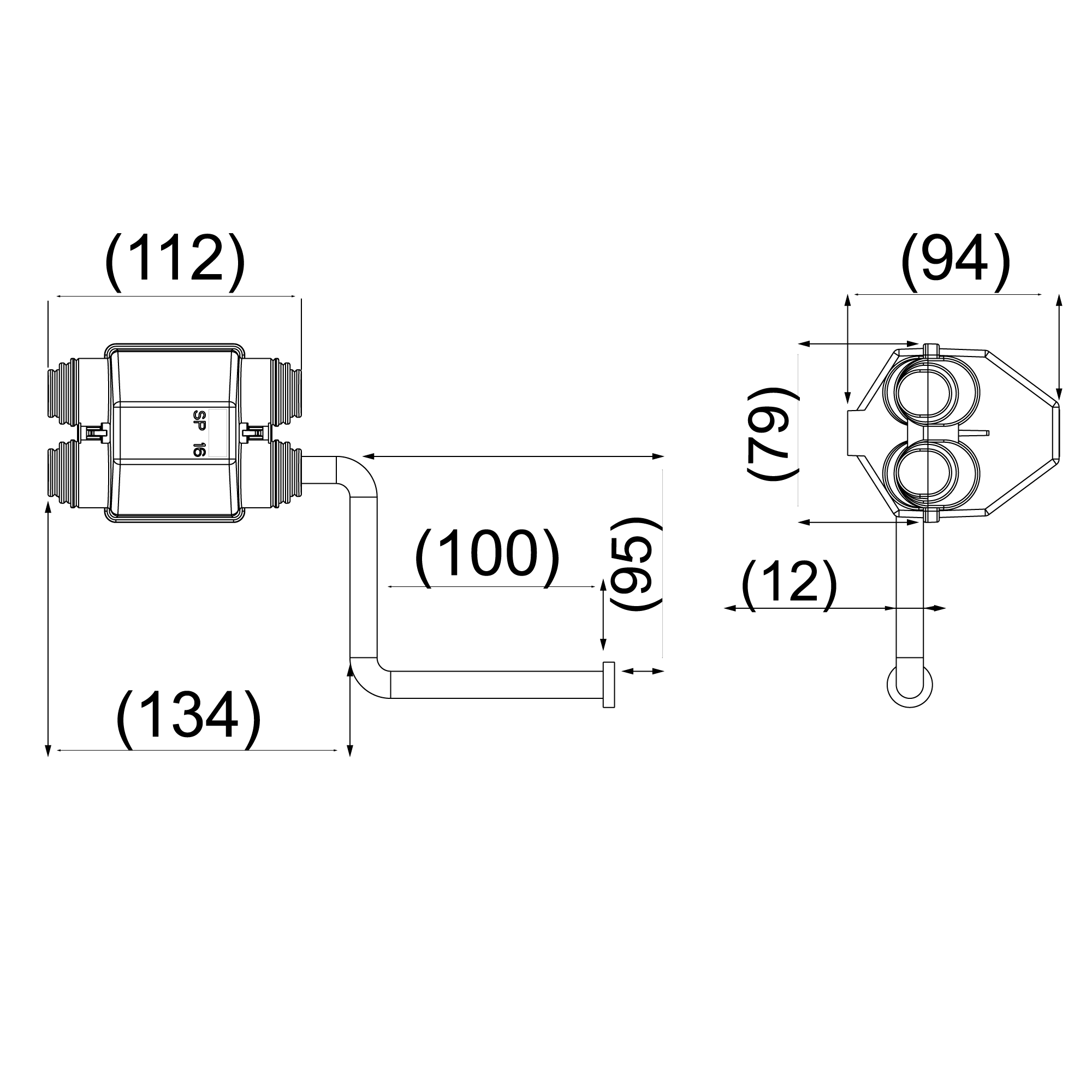

| Dimensioner | |
| Vikt | 0.56 kg |
| Funktioner | |
| För ledararea | CC 50-157 mm |
| Plast kåpa | SP16 |
| Mekanisk | |
| Åtdragningsmoment | 40 Nm |
| ETIM | |
| ETIM Class | EC001062 |
| Nominal cross section main conductor, SM | 50 ... 157 mm² |
| Material main conductor | Aluminium |
| Material branch conductor | Aluminium |
| Terminal insulated | Yes |
| Clamping channel opening main conductor | Closed |
| Clamping channel opening branch conductor | Closed |
| Type of connection | Insulation piercing connector IPC |
| Plastpåse | |
|---|---|
| Storlek | 3 st |
| Djup | 300 mm |
| Höjd | 10 mm |
| Bredd | 152 mm |
| Vikt | 1.684 kg |
| Volym | 0.456 l |
| Kartong | |
| Storlek | 24 st |
| Djup | 499 mm |
| Höjd | 363 mm |
| Bredd | 344 mm |
| Vikt | 14.247 kg |
| Volym | 62.311128 l |
| Palettpaket | |
| Storlek | 240 st |
| Djup | 1200 mm |
| Höjd | 1350 mm |
| Bredd | 800 mm |
| Vikt | 162.470 kg |
| Volym | 1296 l |
